Cast Shoulder for E1817 E2000 Series Clip Fast Clip

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Certification

ISO9001

Quality

High Quality

Transport Package

Bundles by Steel Wire Rod

Trademark

Origin

China

HS Code

73021000

Capacity

500,000 ton/Year

Product Description

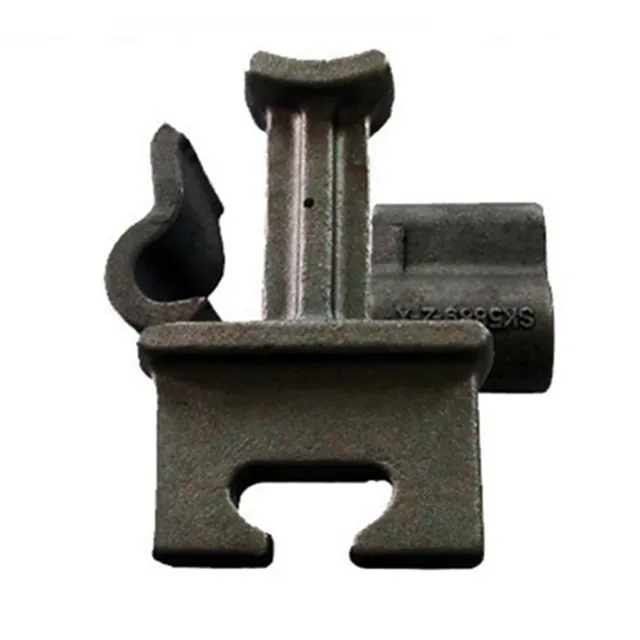

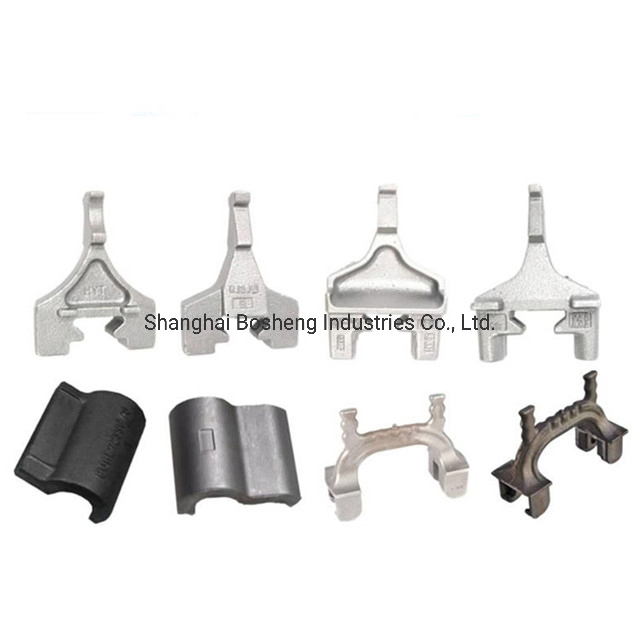

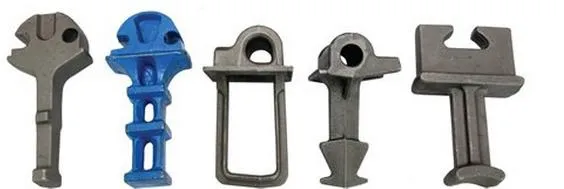

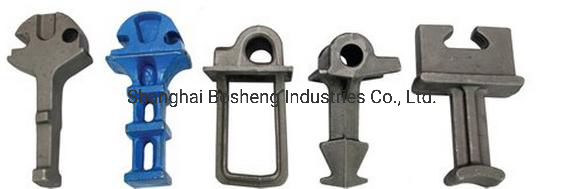

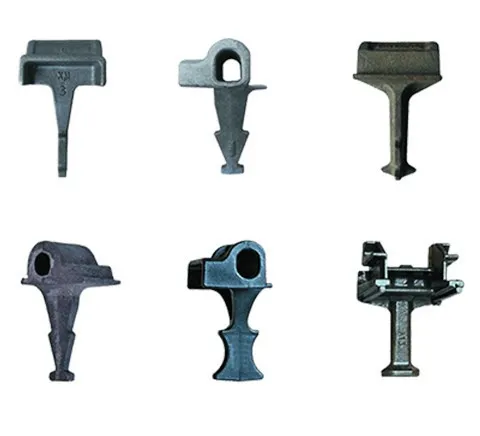

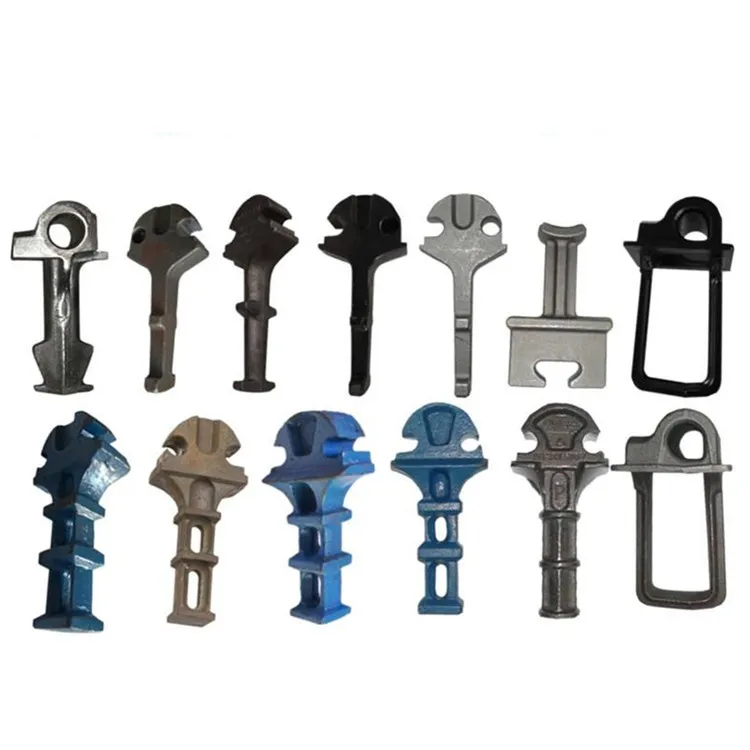

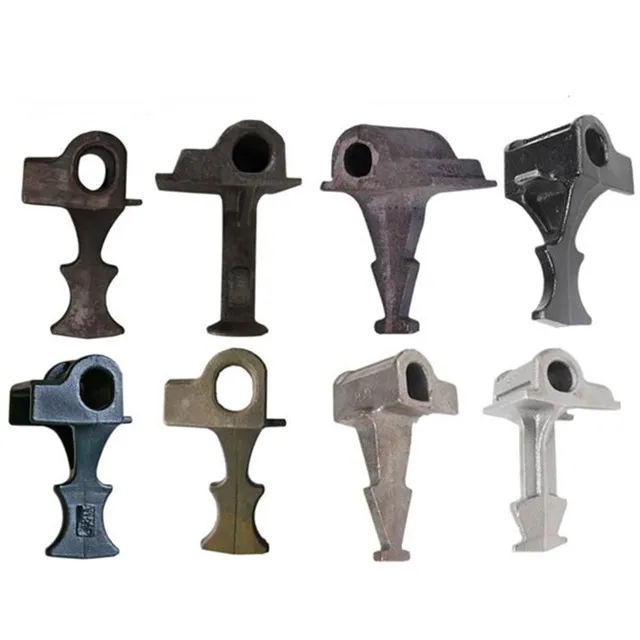

Rail shoulder, also called rail iron shoulder, is mainly used to be casted in the concrete ties to fixate elastic rail clips. According to the shape, it can be classified into Single Stem Rail Iron Shoulder and Twin Stems Rail Iron Shoulder. Besides, according to the manufacturing ways, rail shoulder can be divided into 3 types: casting rail shoulder, weld-on rail shoulder and hot forging rail shoulder.

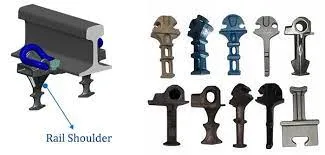

The rail shoulder is embedded in concrete at the time of casting, it's used to grips the clip effectively and provides lateral support to rail.

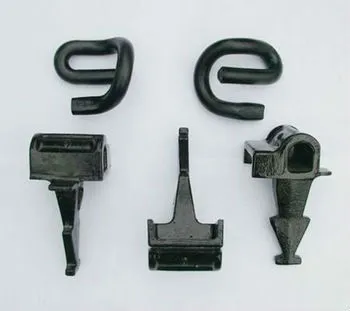

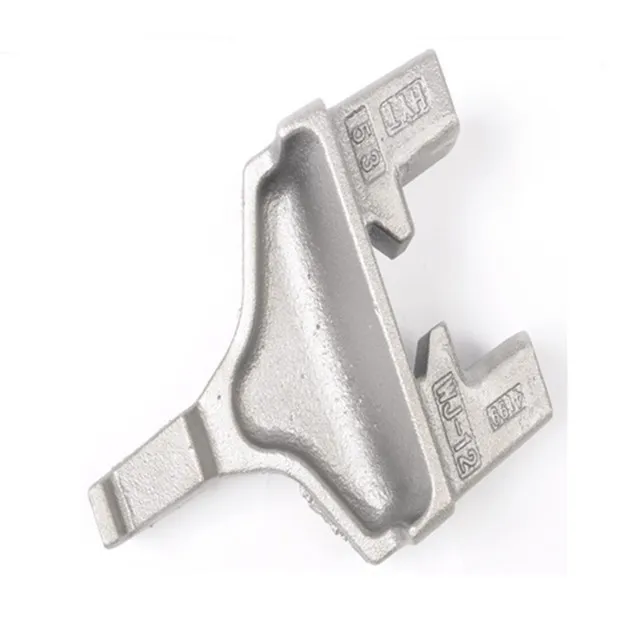

The Rail shoulder is semi-embedded part cast in the concrete rail ties to fix the elastic rail clip to the base plate. There are two common types of rail shoulders available: Cast-in Shoulder and Weld-on Shoulder, both of which are used for the fixing of elastic rail clips. One is Single Stem Iron Shoulder used in pre-stressed concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.

Quality Control & Standards

As an ISO 9001/2008 certified manufacturer, all processes are in accordance with the requirements of the ISO quality management system. From supplier quality control to finished products, we strictly follow standard procedures.

Material Inspection: Before producing Rail Shoulder, we check and test the raw materials. We require suppliers to provide production batch numbers, chemical composition, mechanical properties, and other testing indicators.

Batch Testing: Quality control inspectors perform sampling and batch testing after the manufacturing process, providing material certificates to control the testing process.

Physical & Chemical Testing: We conduct corresponding physical and chemical inspections. Materials that do not meet strict standards are refused.

Technical Guidance: We organize quality control coordination meetings and provide technical advice to ensure that only qualified products are delivered.

Frequently Asked Questions

Q: What is the primary function of a rail shoulder? A: It is embedded in concrete ties to fixate elastic rail clips and provide essential lateral support to the rail tracks.

Q: What are the different types of rail shoulders based on shape? A: They are categorized into Single Stem Rail Iron Shoulders and Twin Stems Rail Iron Shoulders.

Q: Which manufacturing methods are used for rail shoulders? A: Rail shoulders can be produced through casting, welding (weld-on), or hot forging methods.

Q: What quality certifications govern the production? A: Production follows the ISO 9001/2008 quality management system, covering everything from raw material testing to final inspection.

Q: What is the annual production capacity for these rail components? A: The current production capacity is approximately 500,000 tons per year.

Q: How is raw material quality verified? A: We check chemical composition, mechanical properties, and batch numbers provided by suppliers before production begins.
