Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

📦 Basic Information
Model NO.
LH-
Type
PVD Vacuum Coating Machine
Coating
Vacuum Coating
Substrate
Steel / Ceramics
Certification
CE, ISO
Condition
New
Technology
Physical Vapor Deposition (PVD)
Control System
PLC Touching Screen
Coating Color
Gold, Rosegold, Silver, Black, Blue etc.
Chamber Material
Stainless Steel
🛠️ Product Description

Floor Wall Ceramic Tile PVD Ion Deposition Machine

This high-efficiency PVD Ion Deposition Machine is designed to coat ceramic tiles, tableware, porcelain, floor tiles, and glass mosaics. The system is capable of high-volume production, with advanced models coating up to 1500 square meters per day.

  • Multi-Functional Application: Ideal for depositing TiN (gold), Ti (silver), and other decorative coatings on ceramics, metals, and glass products.
  • Eco-Friendly Technology: A harmless and pollution-free ion coating process with fast deposition rates and high ionization efficiency.
  • Advanced Principle: Integrates cold cathode arc discharge with magnetron sputtering technology to improve film properties and surface finish.
  • Turnkey Solution: Complete process support from stripping and pre-treatment to quality control and final thickness measurement.
📷 Equipment & Sample Display

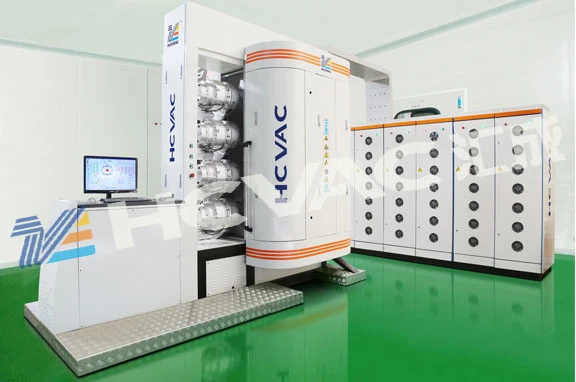

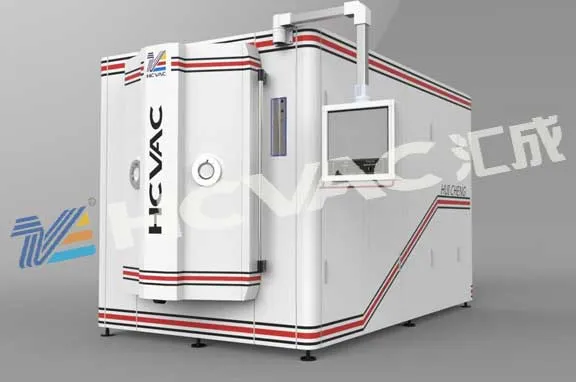

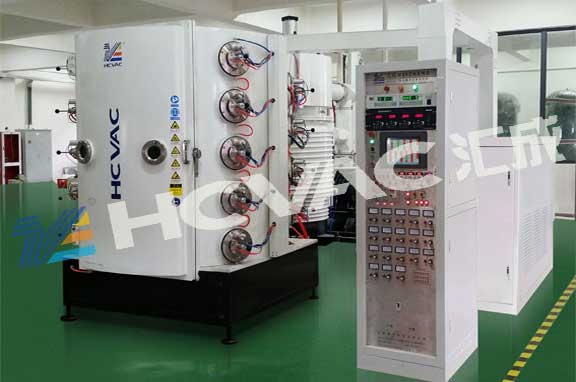

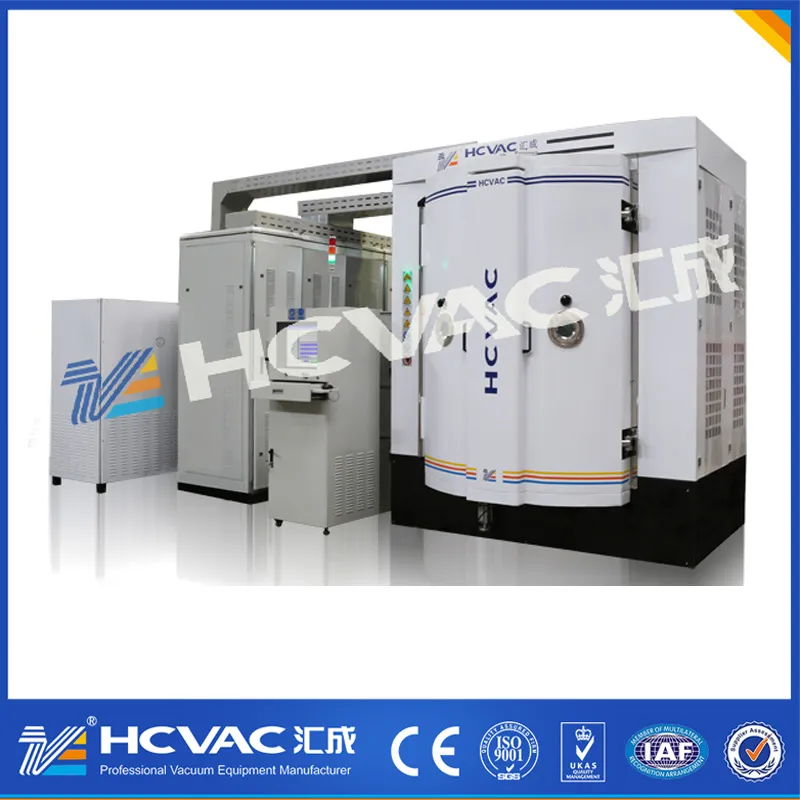

PVD Ion Deposition Machine System

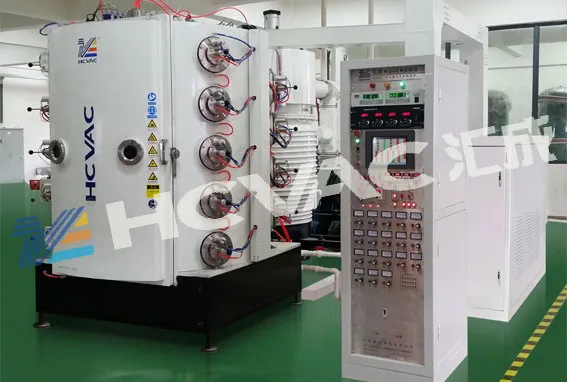

Vacuum Plating System Structure

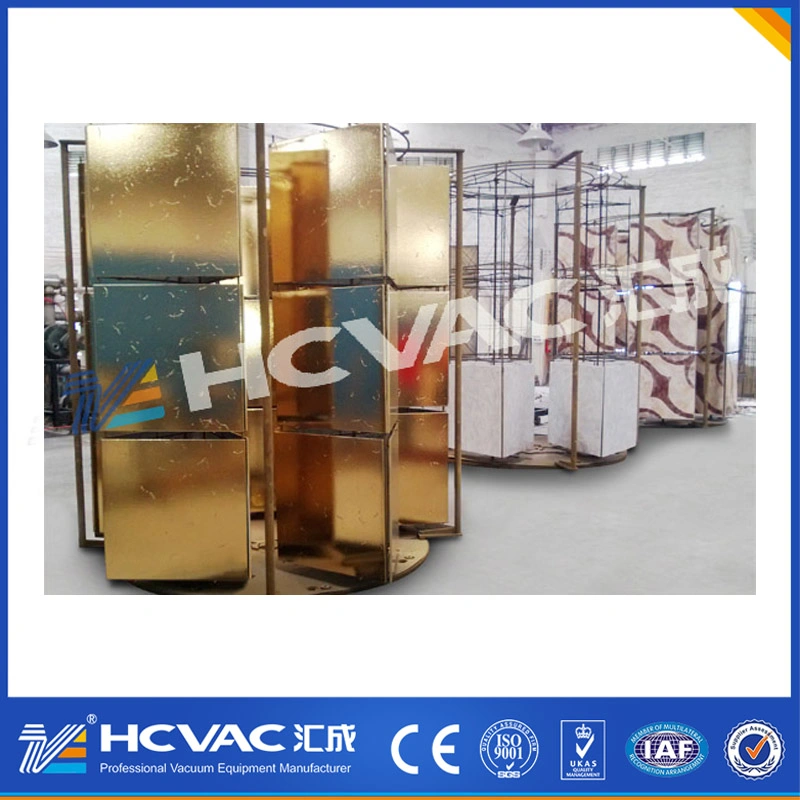

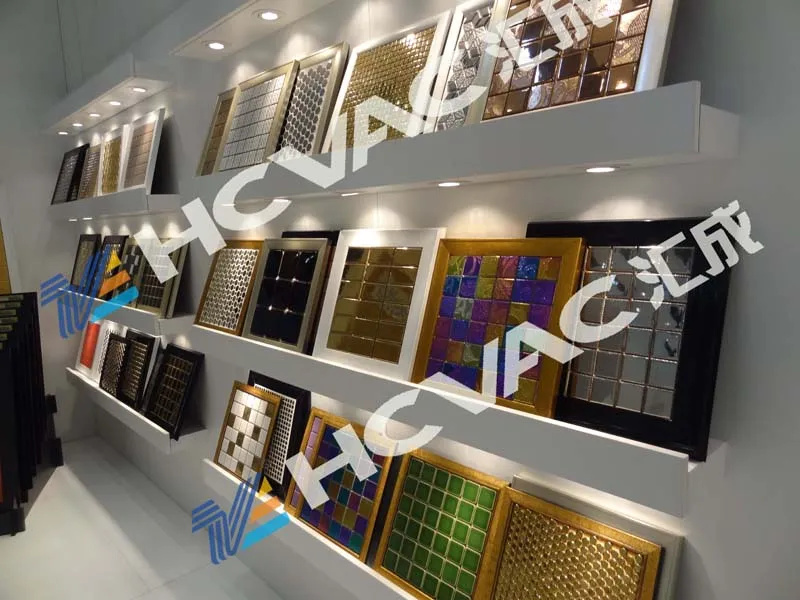

Coated Ceramic Tile Samples

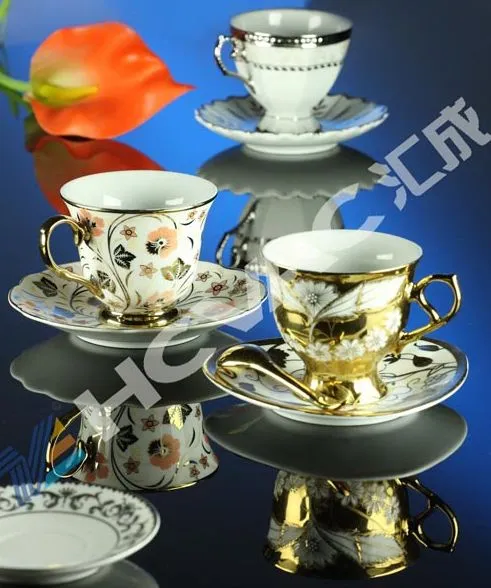

Titanium Gold Plating Samples

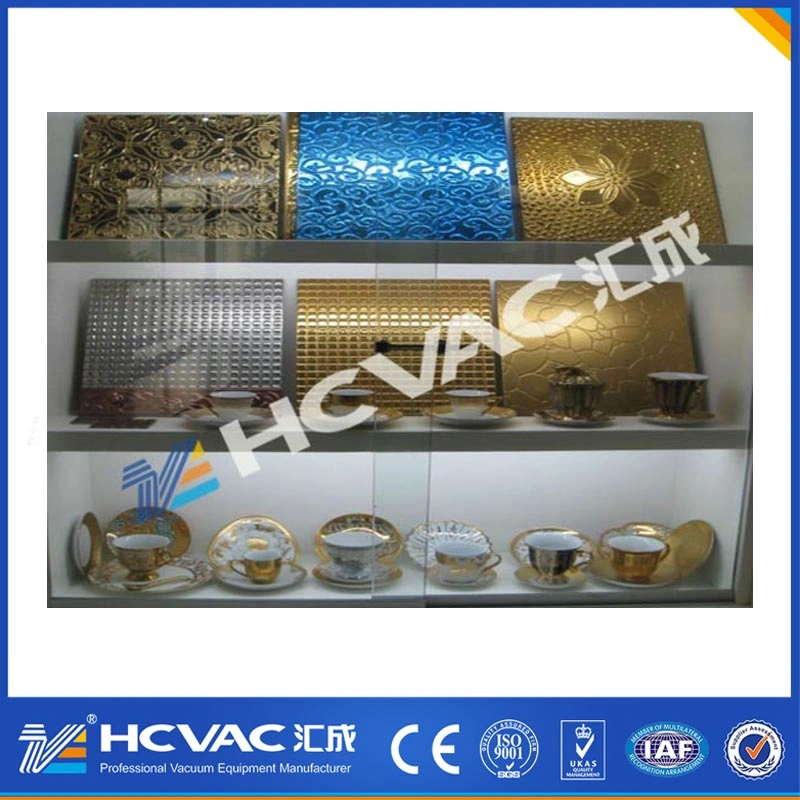

PVD Coating Finish Display

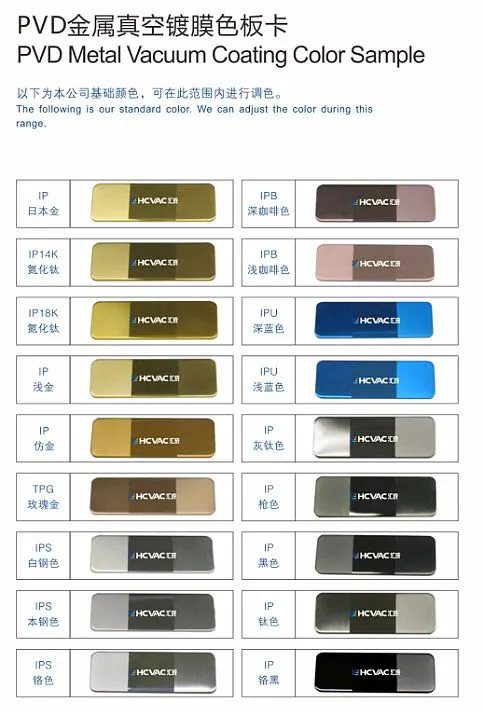

Color Sample Chart
📊 Technical Specifications
Mode / Dimension LH-800 LH-1250 LH-1416 LH-1618
Chamber Size 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Arc Targets 8 Multi-arc targets 12 Multi-arc targets 14 Multi-arc targets 20 Multi-arc targets
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Vacuum System Diffusion/Molecule pump + Roots pump + Mechanical pump
Control Mode Manual / Automatic / PLC + HMI Choice
Heating Temp Normal to 350°C PID control, radiation heating
Frequently Asked Questions
Q1: What types of products can be coated with this PVD machine?
The machine is versatile and can coat ceramic tiles, floor walls, ceramic tableware, porcelain tiles, glass mosaics, and even various metal products.
Q2: What colors can be achieved through PVD ion deposition?
You can achieve a wide range of decorative colors including Gold (TiN), Rose Gold, Silver, Black, Blue, and Rainbow finishes by using different target materials and gases.
Q3: Is the PVD coating process environmentally friendly?
Yes, PVD ion coating is a clean technology that is harmless and pollution-free, making it an excellent replacement for traditional chemical plating or painting.
Q4: How complex is it to operate the equipment?
The machine features a PLC touch screen with a manual/automatic all-in-one control system, making it very user-friendly for operators after basic training.
Q5: Can the machine size be customized for specific production needs?
Absolutely. We can design and manufacture equipment dimensions and target configurations according to the customer's specific technical requirements and production capacity.
Q6: What is the benefit of PVD over traditional gold painting for ceramics?
PVD coating enhances adhesion significantly, improves wear resistance, saves costs on precious metals, and greatly improves production efficiency.
