| Model NO. | PD-GM-04 |
|---|---|
| Certification | CE |
| Application | Commercial / Residential |
| Material | Steel |
| Type | Ground Bracket |
| Wind Speed | 60m/S |
| Snow Load | 1.4kn/M2 |
| Surface Treatment | Magnesium Aluminum Zinc |
| Standard | AS/NZS1170 / Jisc8955:2017 |

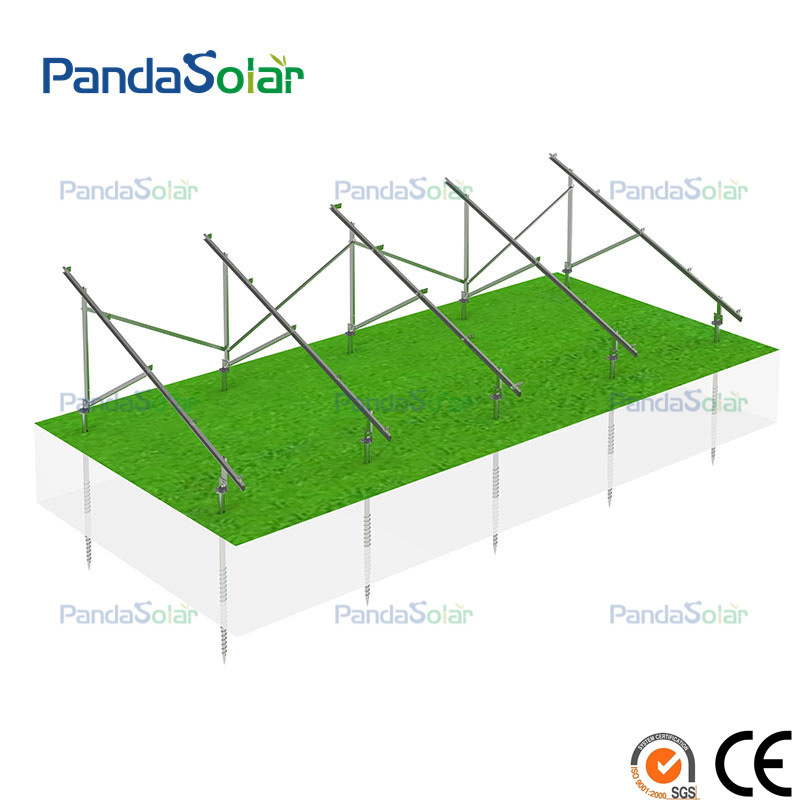

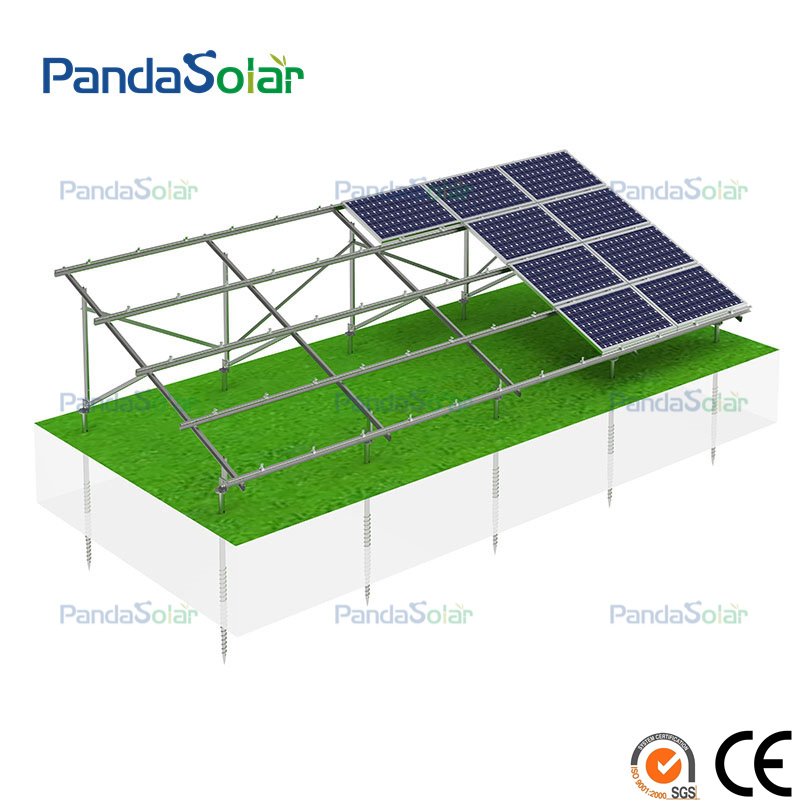

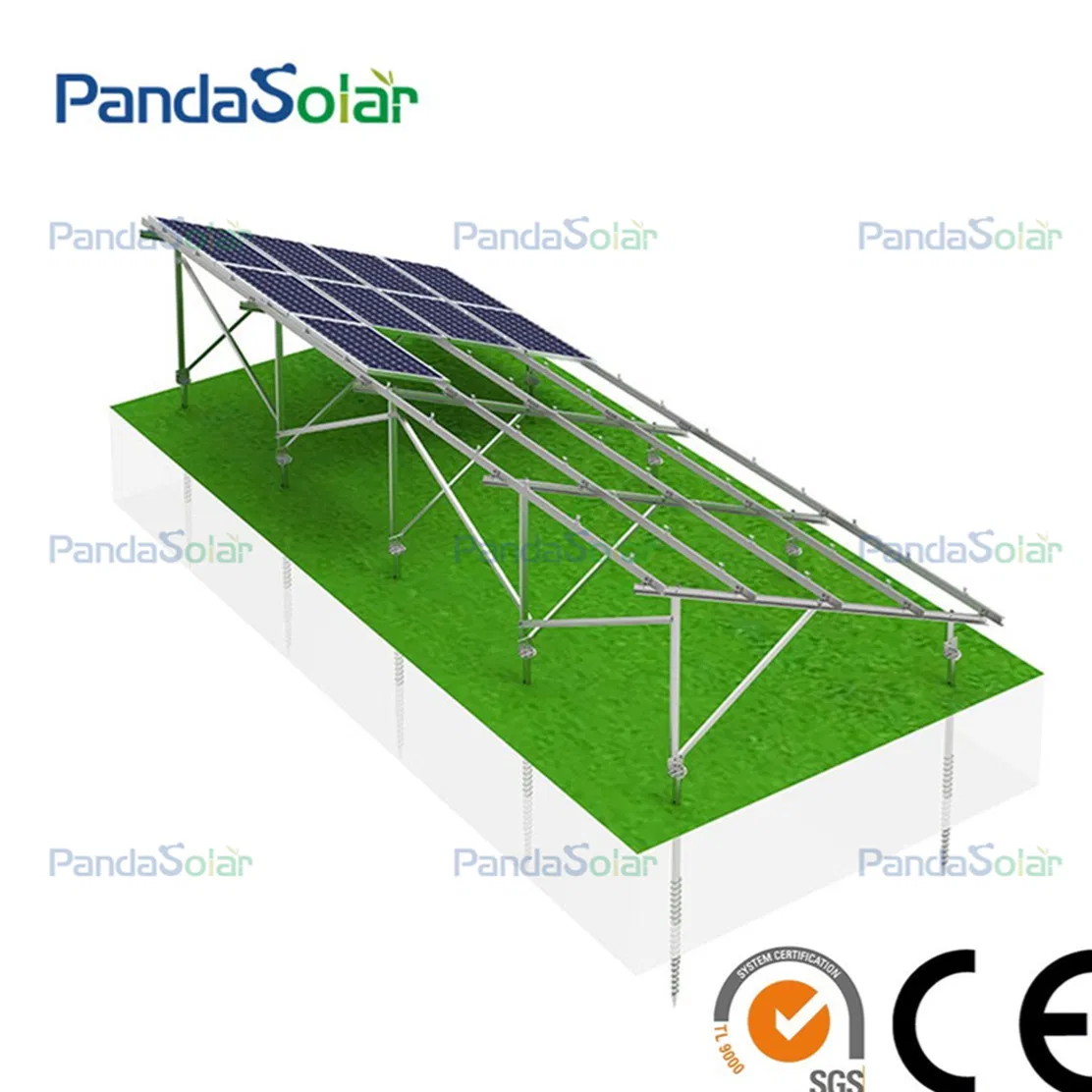

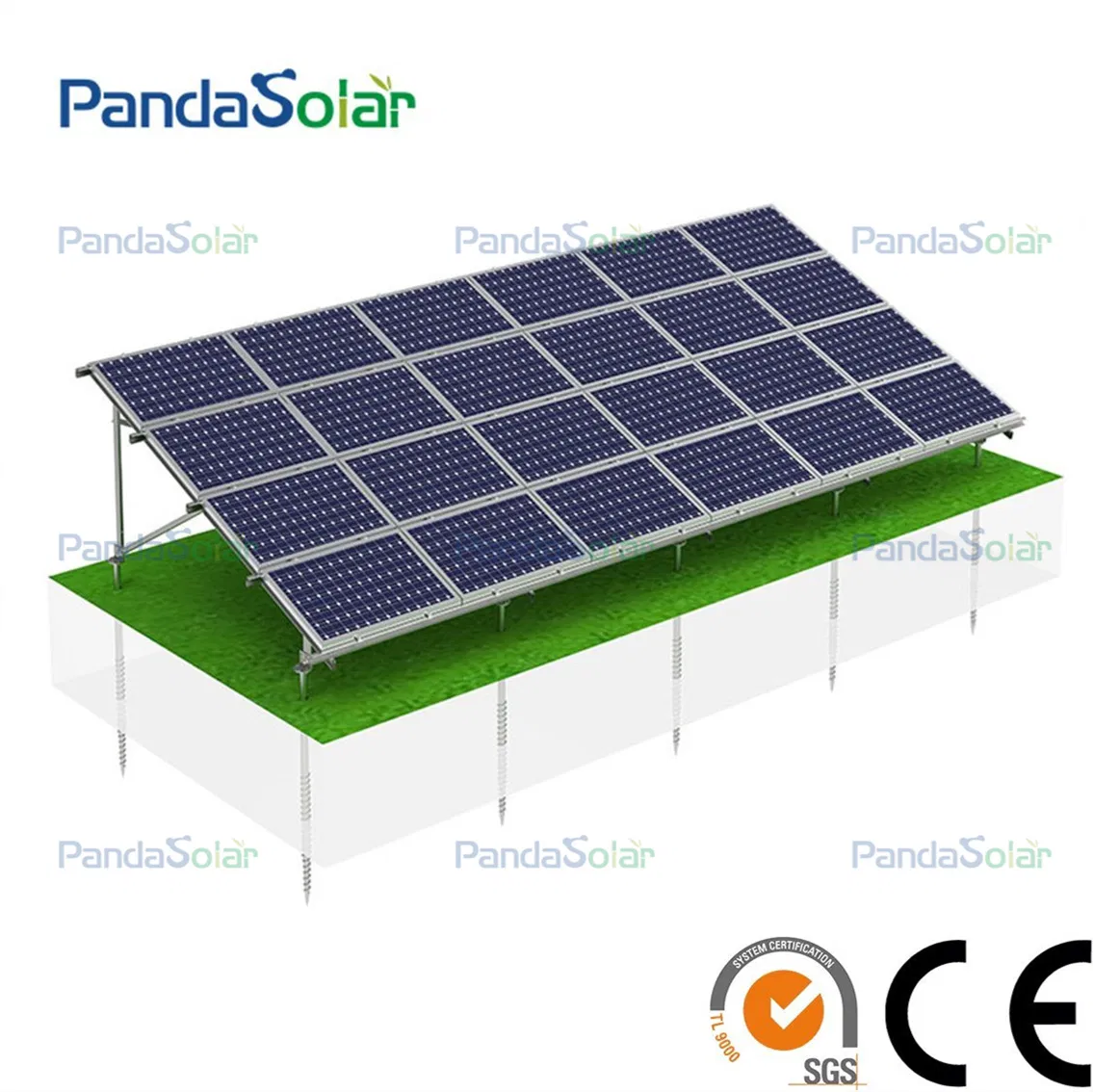

This solar ground mounting bracket is strictly designed according to maximum wind speeds, snow loads, and specific solar panel requirements. While ensuring high strength, we focus on installation efficiency and labor cost reduction. Our systems offer a long service life with versatile foundation options including straight-into-ground, ground screws, and cement piers.

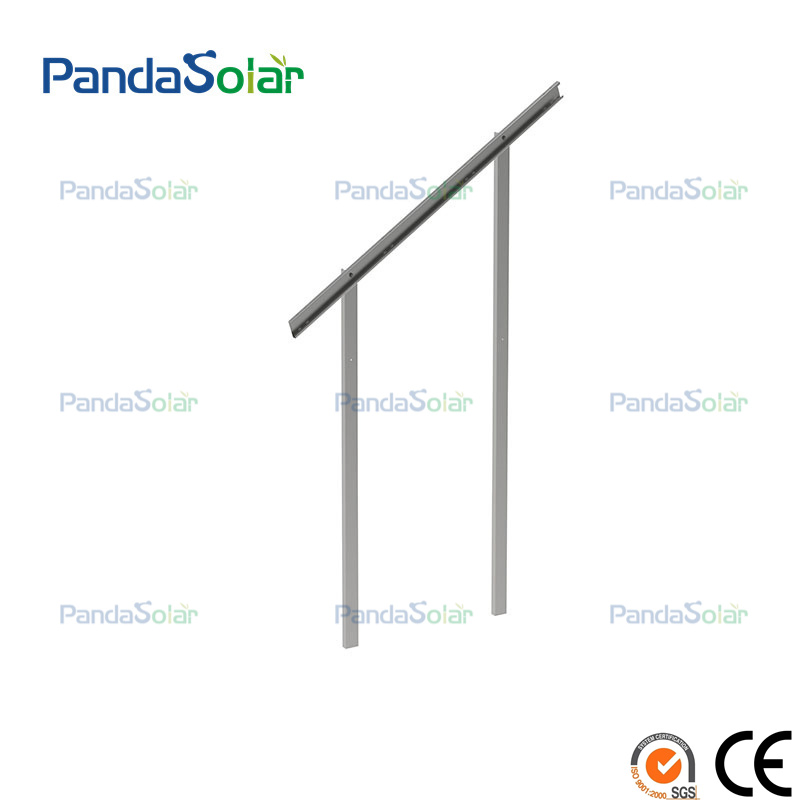

The double column design supports ground bolt or piling columns, with ground screw posts allowing for precise height adjustments. Piling columns offer higher strength for demanding environments.

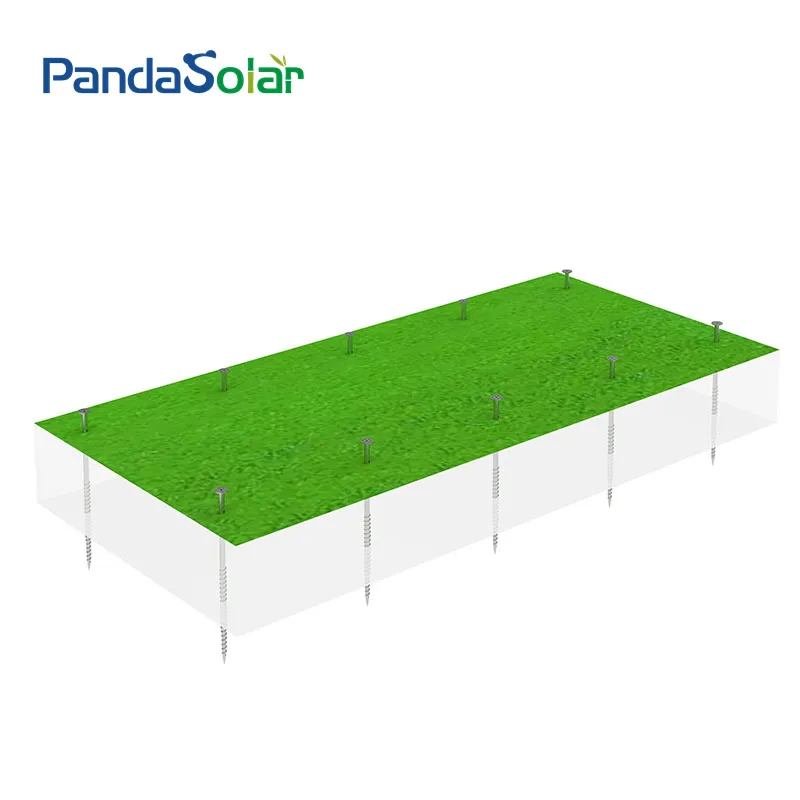

Anchor the support structure to the ground using specialized drilling equipment. The depth is adjusted based on soil type to ensure system stability.

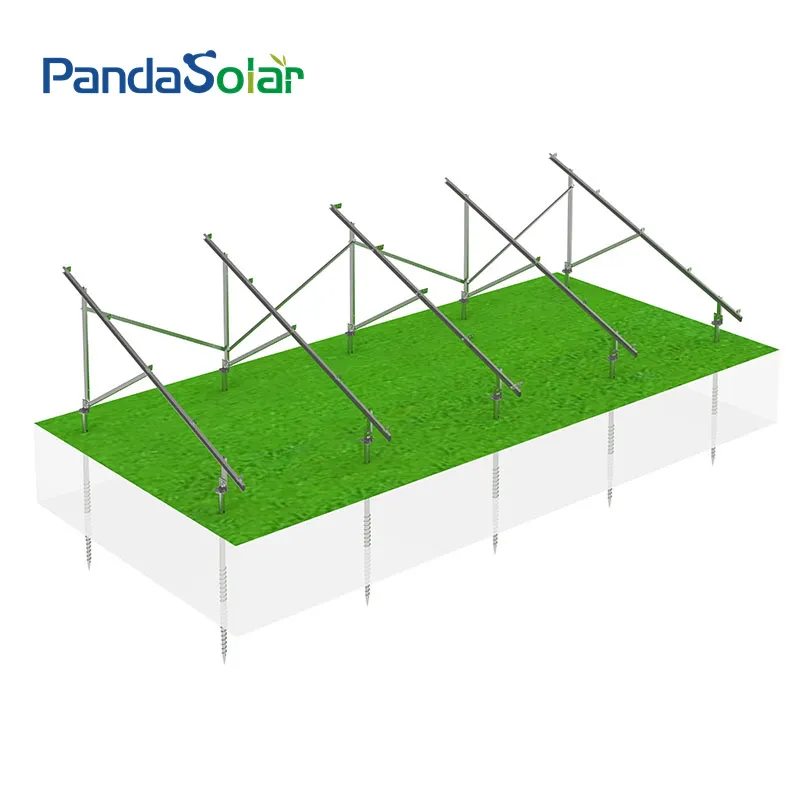

Connect the diagonal support poles to the top of the main poles using high-strength bolts and nuts once the foundation is secure.

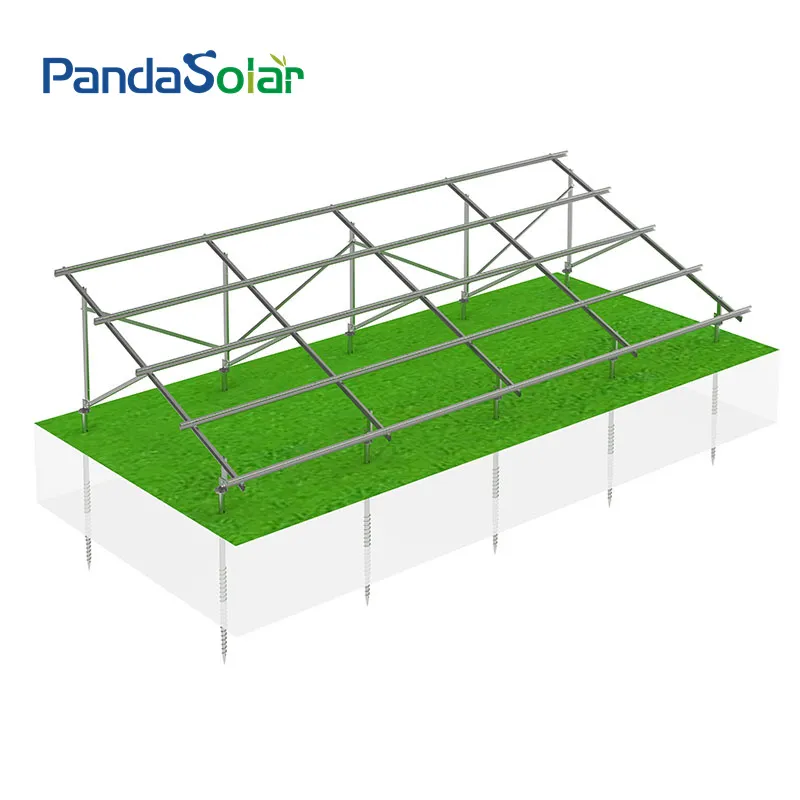

Attach the supporting rails to the beams using brackets. Precision leveling is required before moving to panel placement.

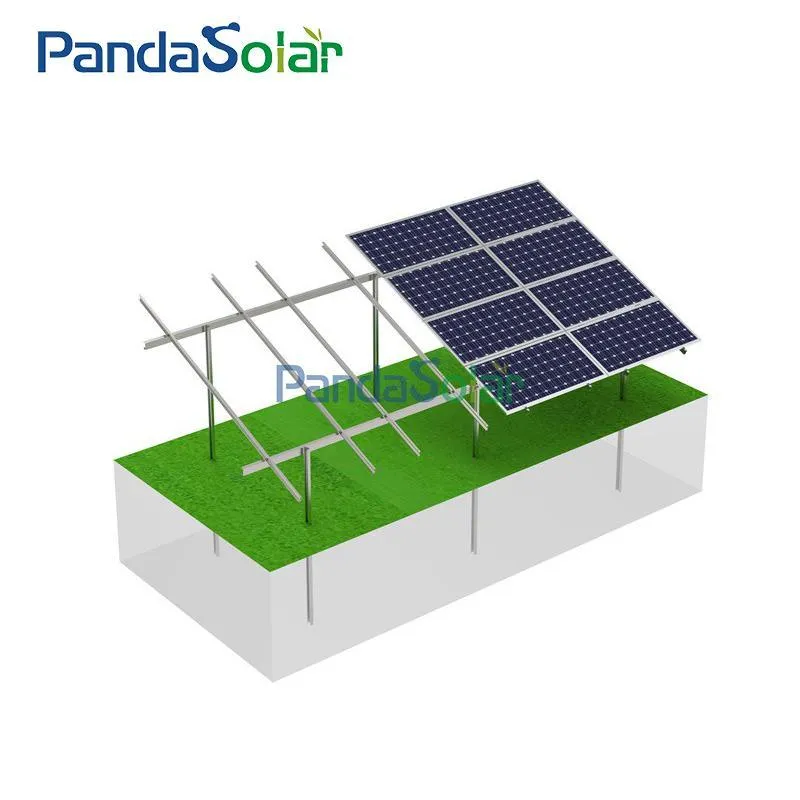

Secure the solar panels to the rails using specialized mounting hardware, ensuring each panel is firmly fastened.
| Material | Mg-Al-Zn & AL-6005-T5 (Anodized); SUS304 Components |
|---|---|
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

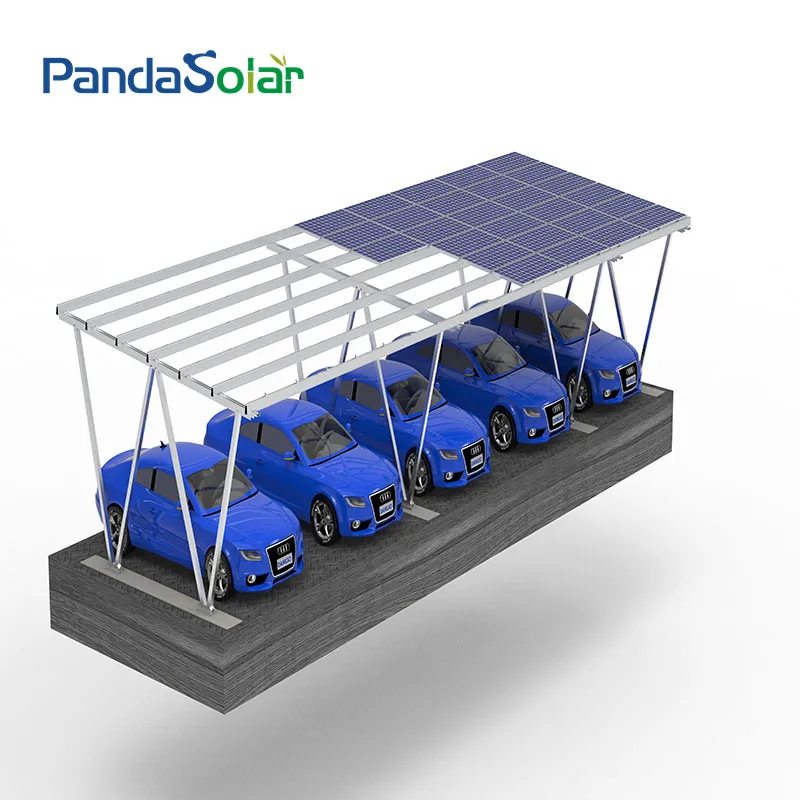

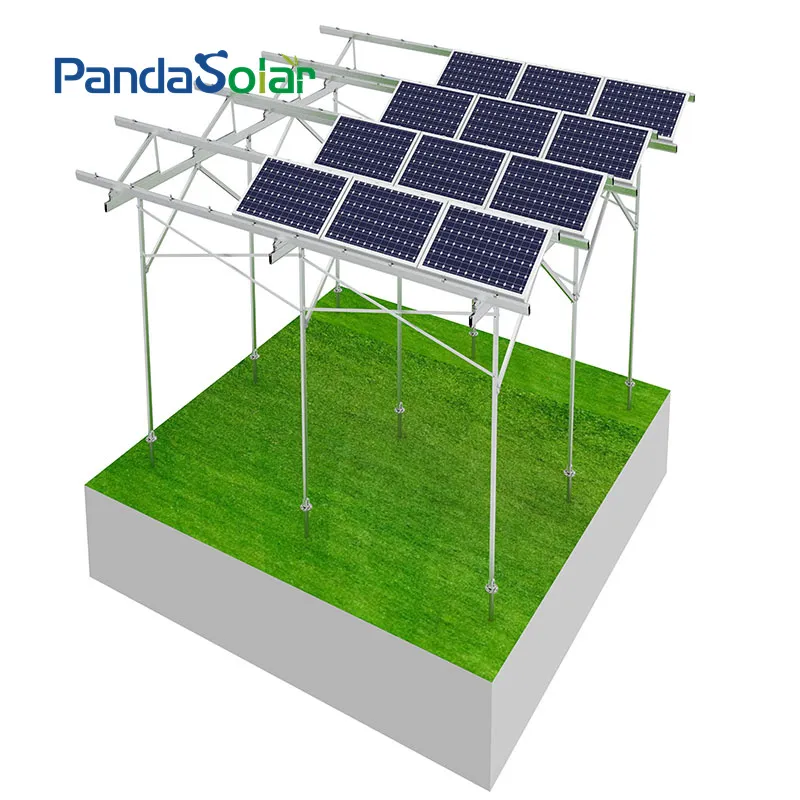

We are dedicated to developing clean energy mounting systems, including ground, agricultural greenhouse, tile roof, metal roof, flat concrete roof, carport, and fence systems. Our products are widely used across Europe, Southeast Asia, the Middle East, Southern Africa, and Latin America.

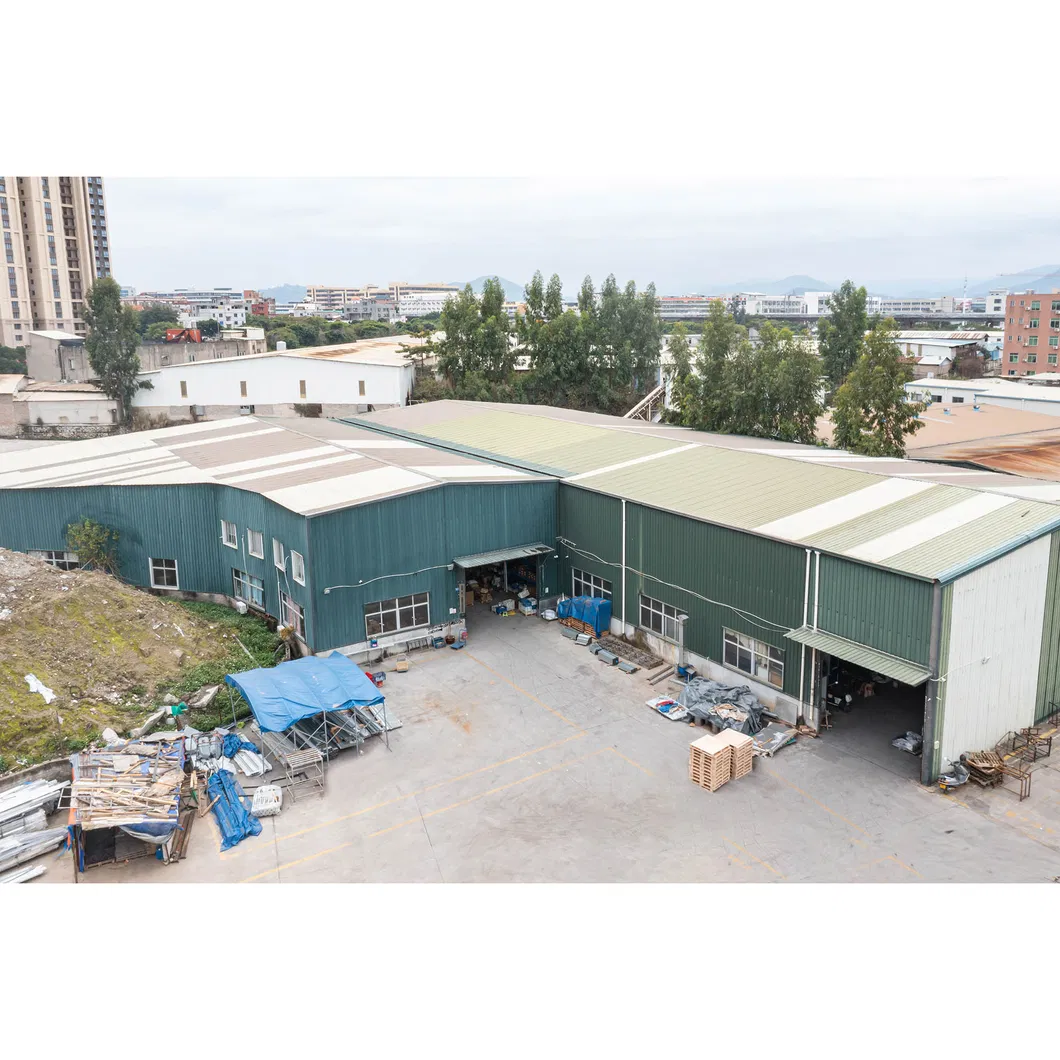

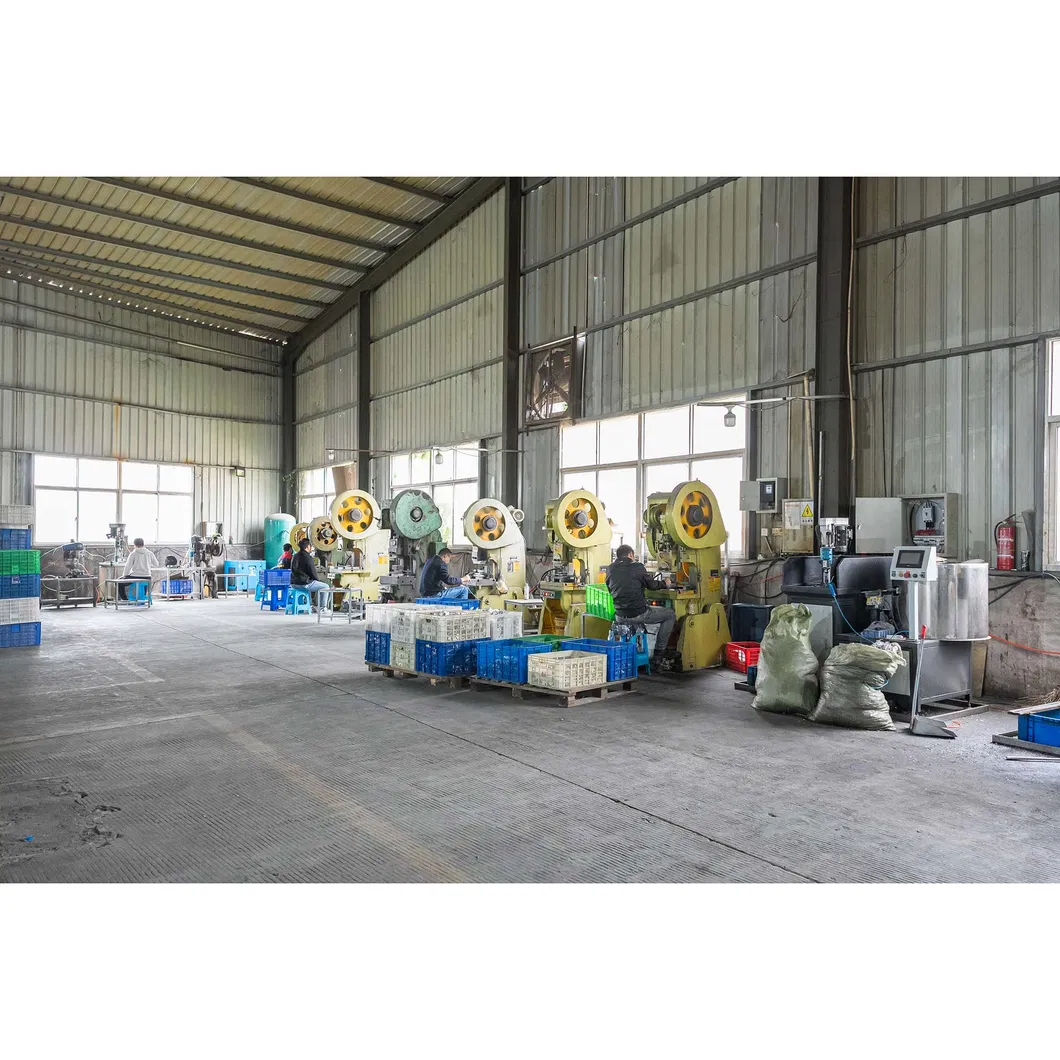

Aluminum Material Workshop: Features professional processing for cutting, drilling, stamping, and forging to meet high customization requirements.

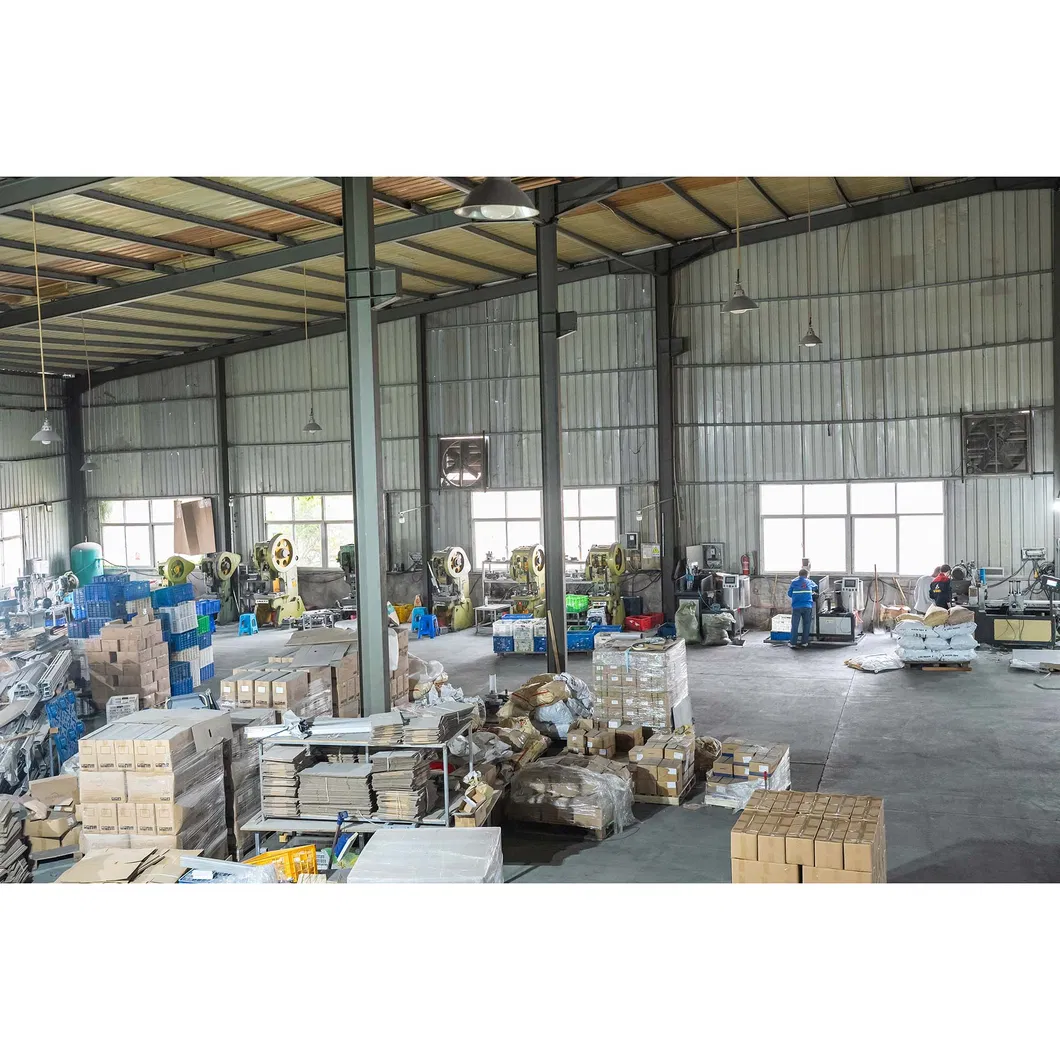

Steel Material Workshop: Includes 6 production lines for Magnesium Aluminum Zinc and S350GD/S450GD materials, with a monthly productivity of 40-50MW.
