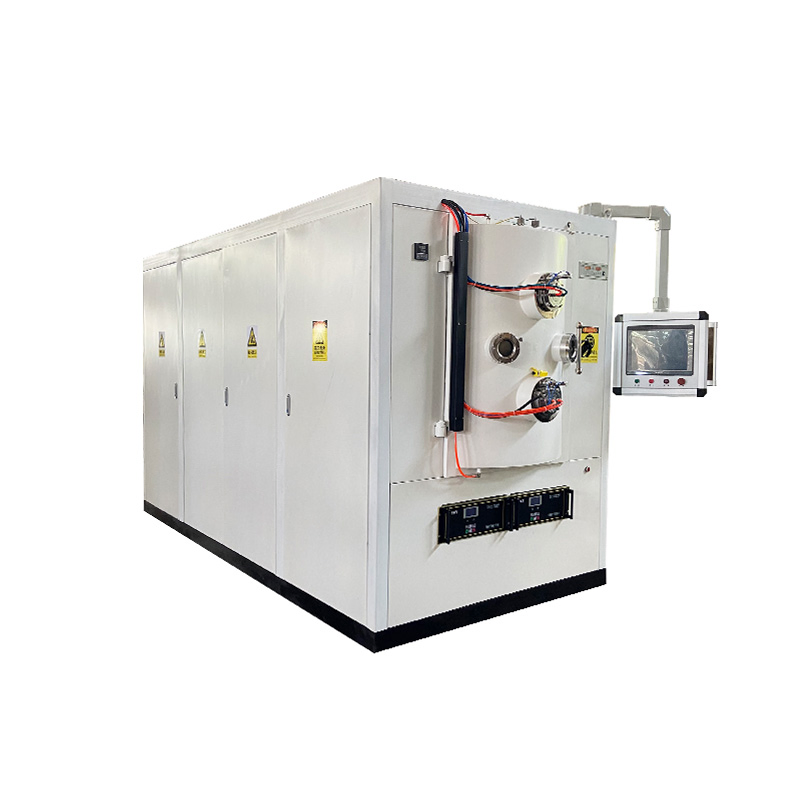

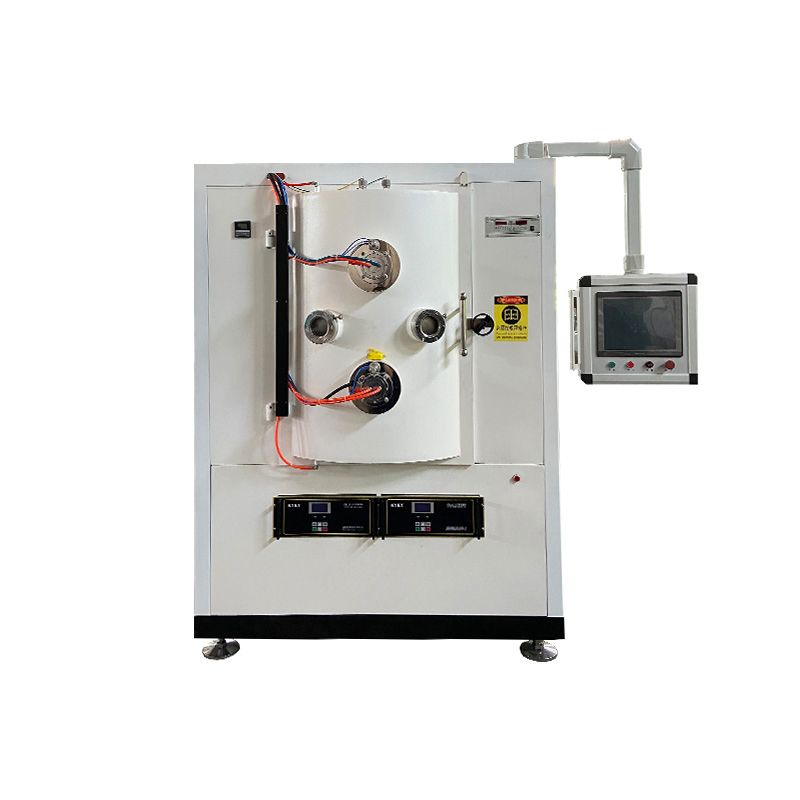

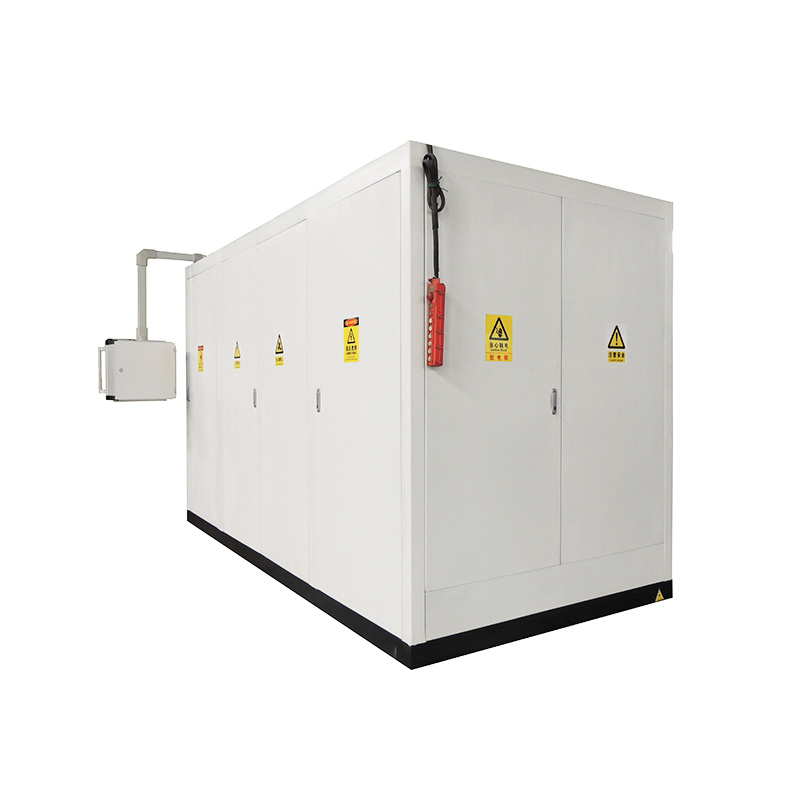

Titanium Nitride Coating Equipment is a high-tech environmental friendly product for metal, glass and surface coating. It significantly improves workpiece hardness, wear resistance, and durability. This ARC series, based on arc deposition technology, is the premier choice for producing PVD hard coatings on metal tools, molds, and dies.
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Rotation Speed | 10 rpm to 50 rpm (Variable) |
| Evaporation Source | 2 to 16 sets Arc sources |
| Ultimate Pressure | 5.0×10⁻⁴ Pa or lower |
| Pump Down Rate | 25 minutes (to 5.0×10⁻³ Pa) |
| Substrate Heater | Up to 550°C (max.) |
| Layout Dimensions | 5000mm (W)×6500mm (D)×3500mm (H) approx. |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA |
| Water Flow Rate | 140L/min. or greater |
| Gross Weight | 8500kg approx. |

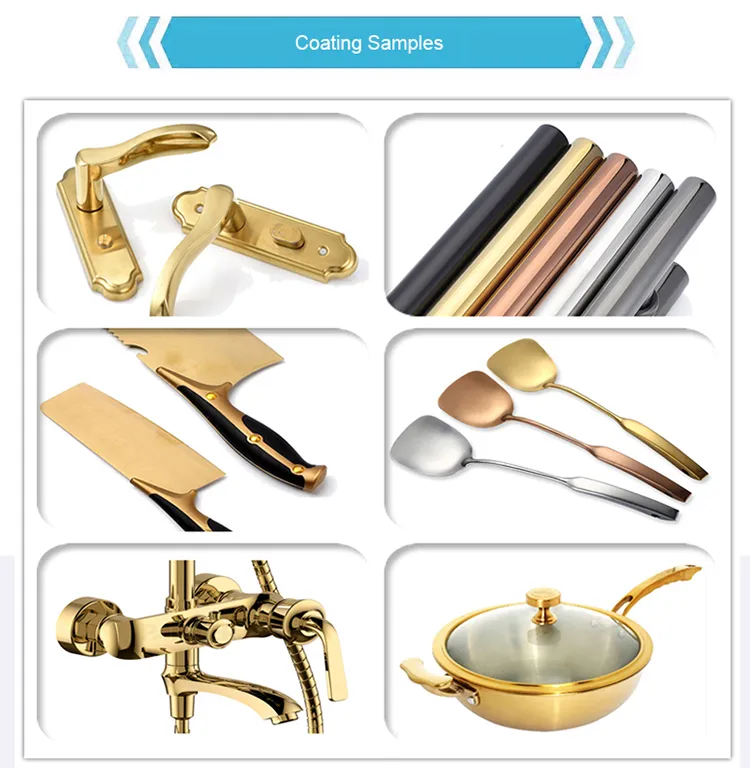

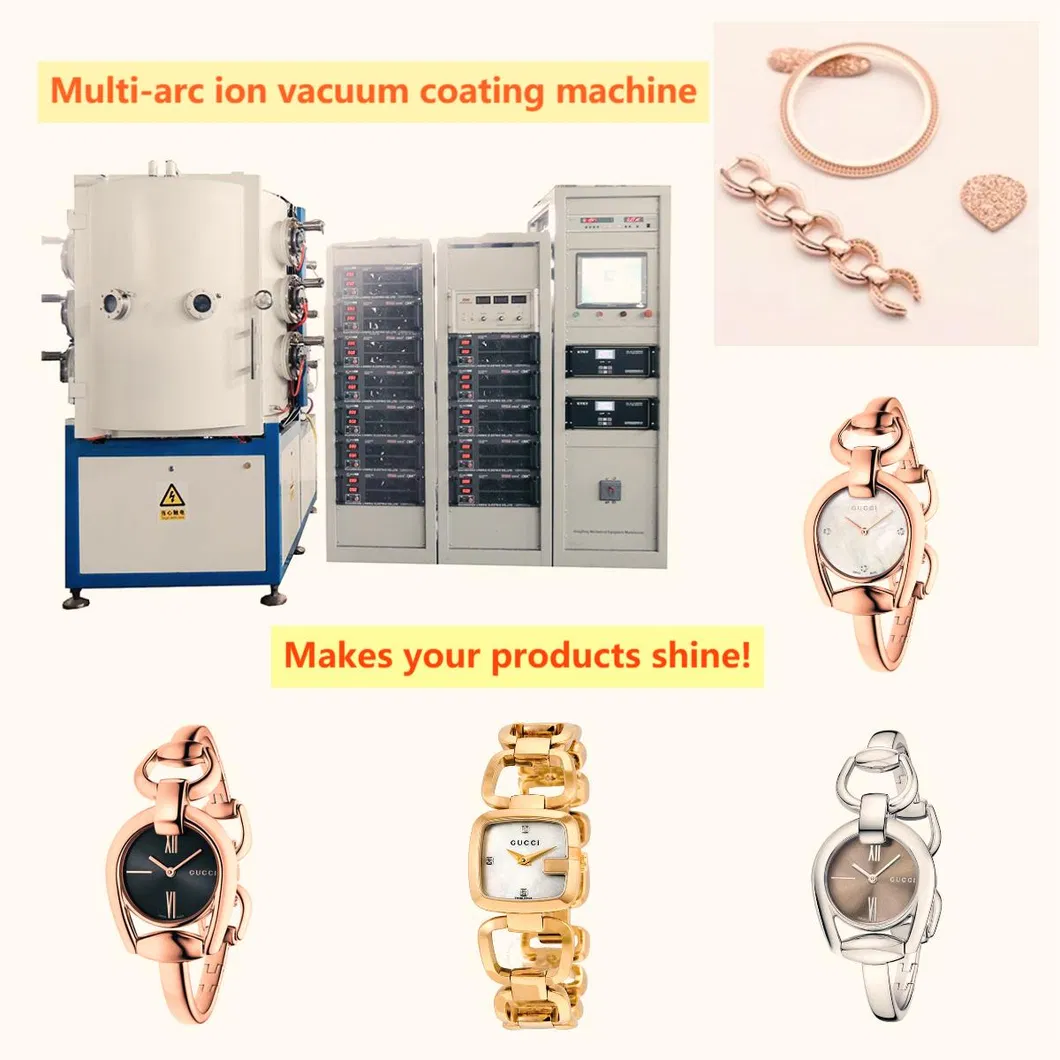

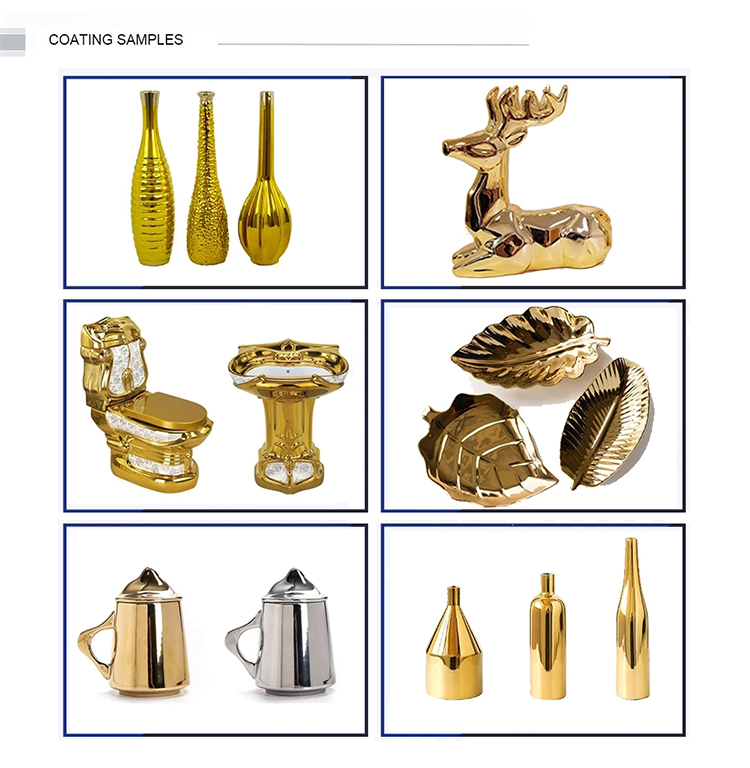

This equipment serves a wide range of industries: Watch industry (straps, cases), Glass & Ceramics (tableware, crafts), Hardware (sanitary ware, locks), Architecture (stainless steel railings, columns), Precision Molds, and Automotive components (pistons, alloy wheels).
To help choose the most suitable PVD coating machine, please consider the following:
1. What is your product type and its maximum dimensions?
2. What is your desired daily production capacity?
