Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization:	Available
Type:	Power Drill
Kind:	Orthopedics

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

ND-3511

Certification

CE, ISO13485

Product Name

Surgical Power Drill

Operating Principle

Total Hip Replacement

Motor

Brushless Motor

Warranty

2 Years

Voltage

100V-240V

Sterilizing Time

About 20 Mins

Package

Aluminum Box

MOQ

1 Set

🔬 Product Description

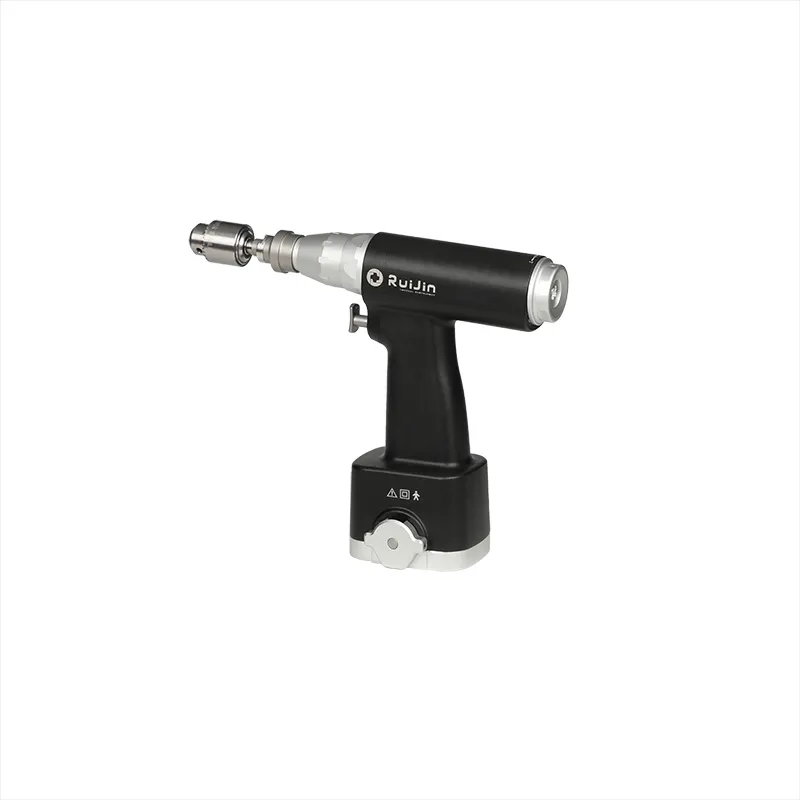

Medical drill tools equipment orthopedic low-speed endoprosthesis total Arthroplasty replacement

Medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. These units are autoclavable, featuring imported motors to ensure low noise, high speed, high proper alignment, and long service life. The machine comes with a standard warranty. It can accommodate various flexible reamers and chucks easily during the surgical process.

📊 Technical Data

Working Voltage	14.4V
Output Power	130W
Unit rise in Temperature	≤ 25ºC
Input Voltage	AC 220V, 50Hz
Charging time	3 hours
Speed	300r/min
Non-loaded noise	63dB(A)
Torque	33000gcm

💡 Product Technical Merits

Designed specifically for joint operations.

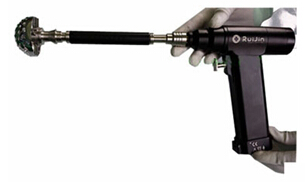

Low speed with great torque; compatible with various acetabulum burnishing and medullary cavity expanding tools.
Main unit can be sterilized by high temperature and high pressure up to 135 ºC.
Variable speed control and carbonless motor available for increased power.
Scientific balance techniques reduce vibration and enhance handpiece control.
High concentricity ensures precision in HIP operations.

🖼️ Product Display

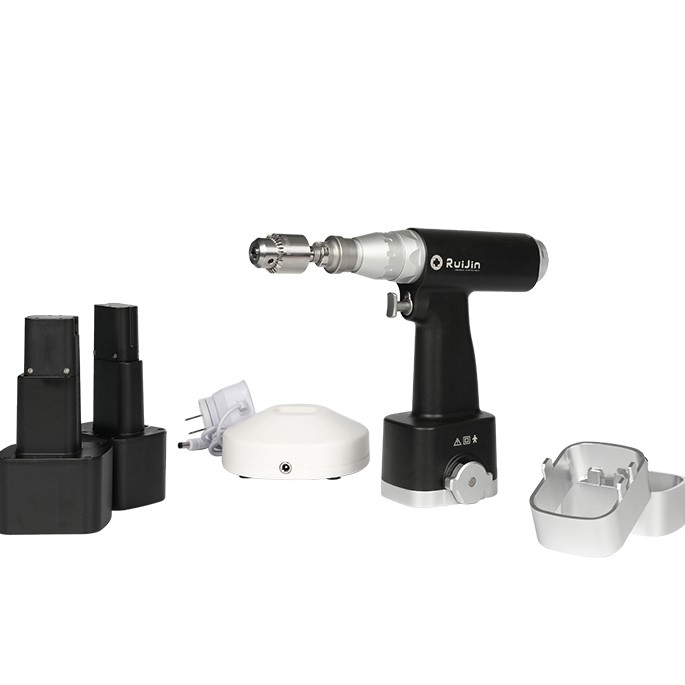

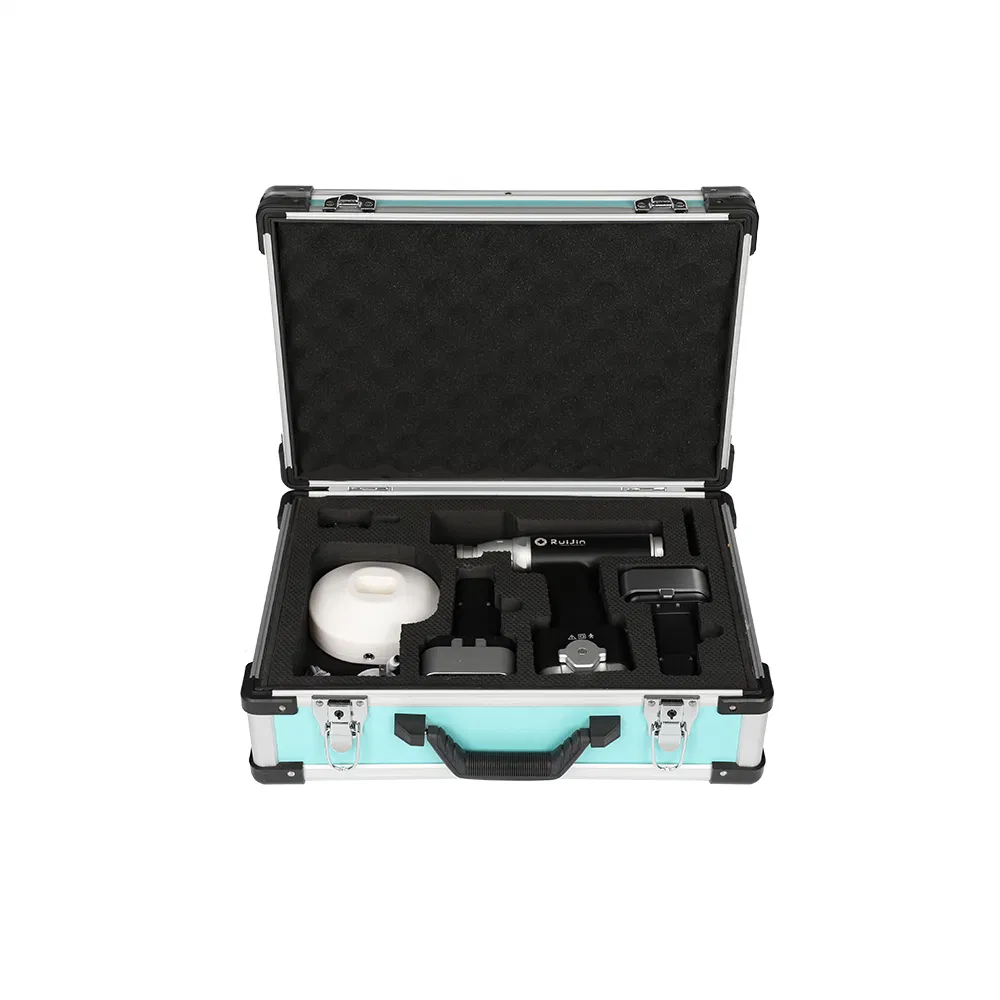

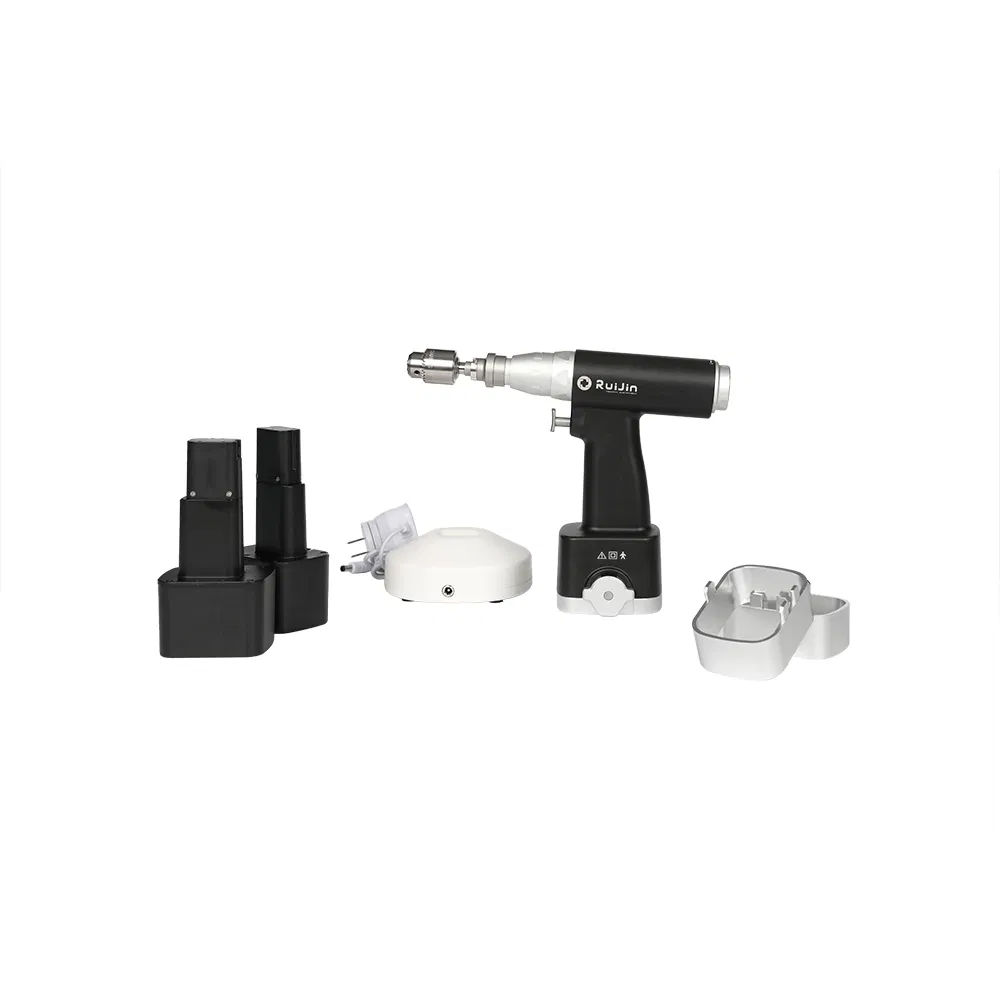

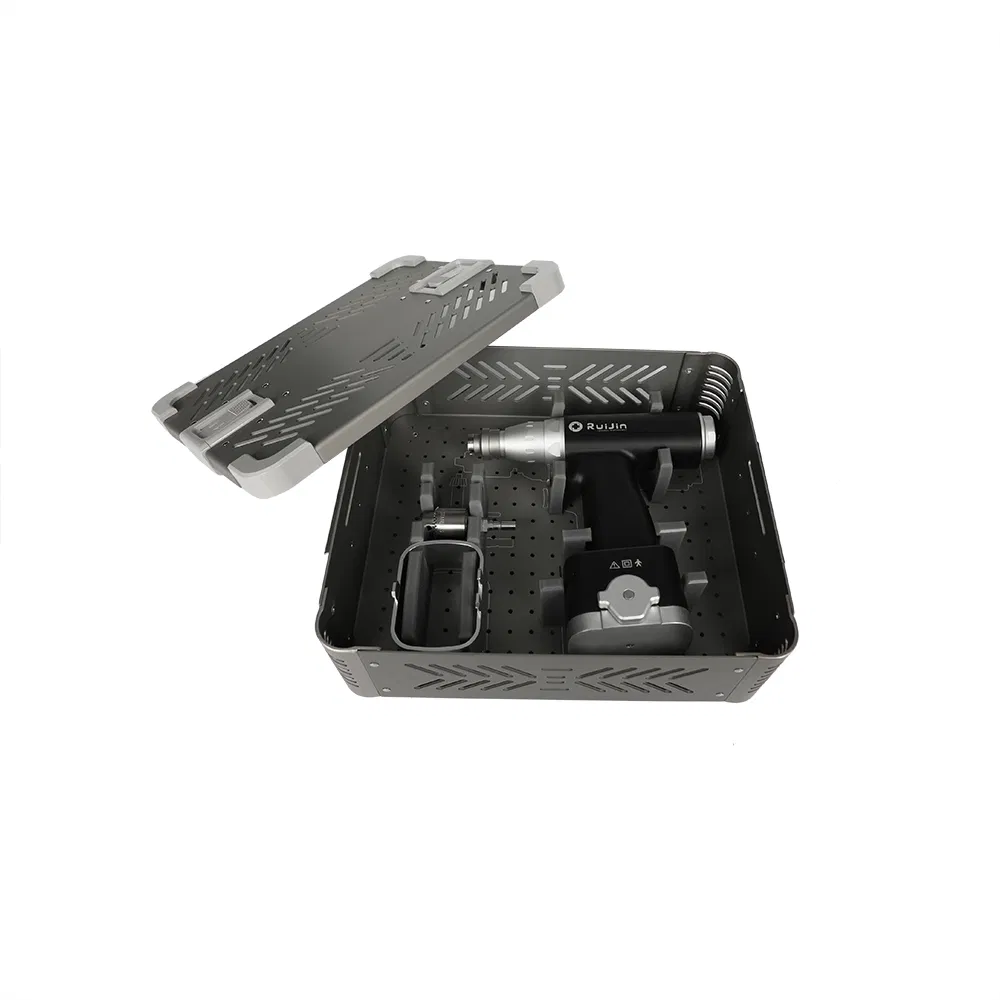

Standard Configuration: One handpiece, One charger, Two batteries, One sterilizing channel, One drill chuck, One aluminum alloy box.

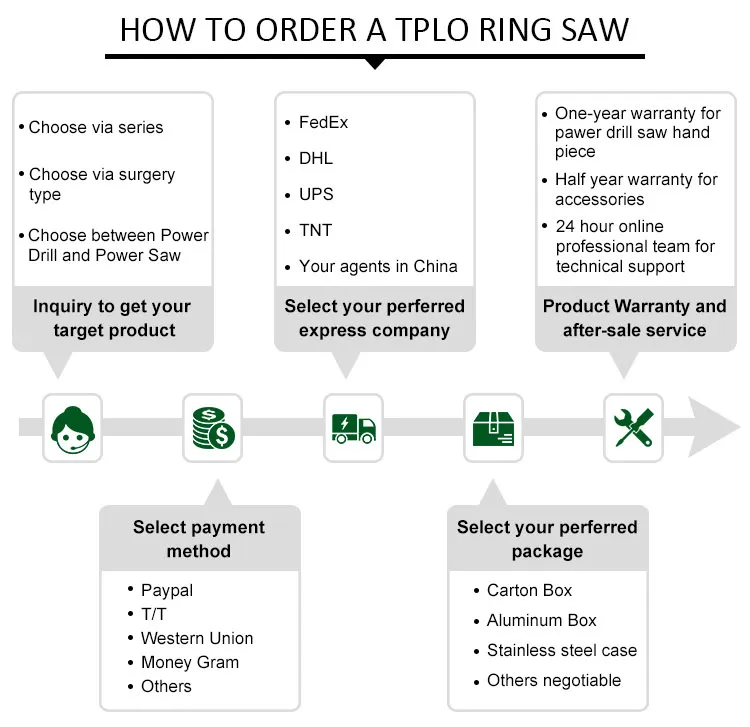

🛒 Ordering Process

⚠️ Attention & Notes

The device must only be handled by professionals.
Compatible with 110V/60Hz - 220V/50Hz power sources.
Remove the battery when not in use to avoid automatic discharge.
The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.
Sterilization temperature must be lower than 135 degrees Celsius to avoid motor damage.

❓ Frequently Asked Questions

1. What surgical procedures is this drill designed for?

This surgical power drill is specifically designed for total hip replacement arthroplasty, as well as traumatic, joint, orthopedic, and neurosurgery operations.

2. Can the entire unit be sterilized?

The main handpiece is fully autoclavable up to 135°C. However, please note that the batteries cannot be disinfected and should be removed before the sterilization process.

3. What are the key technical advantages of the motor?

The device utilizes a brushless motor that offers high concentricity, low noise (63dB), and a large torsional moment, ensuring precision and power during delicate operations.

4. How many batteries are included in the standard set?

The standard configuration includes two batteries to ensure continuous power during surgical procedures, along with a charger and a protective aluminum case.

5. What is the typical charging and sterilization time?

The battery requires approximately 3 hours for a full charge, and the sterilization cycle for the handpiece takes about 20 minutes at the appropriate temperature.

6. What is the warranty period for this medical drill?

The product comes with a 2-year warranty, supported by professional manufacturing standards and CE/ISO13485 certifications.
