| Model NO. | PD-GM-04 |
| Certification | CE |
| Application | Commercial |
| Material | Steel |
| Type | Ground Bracket |
| Wind Speed | 60m/S |
| Snow Load | 1.4kn/M2 |
| Surface Treatment | Magnesium Aluminum Zinc |
| Standard | AS/NZS1170/Jisc8955:2017 |
| Lead Time | 7-15 Days |
| Origin | China |
| Package Size | 1100cm * 1100cm * 2400cm |
| Gross Weight | 100.000kg |

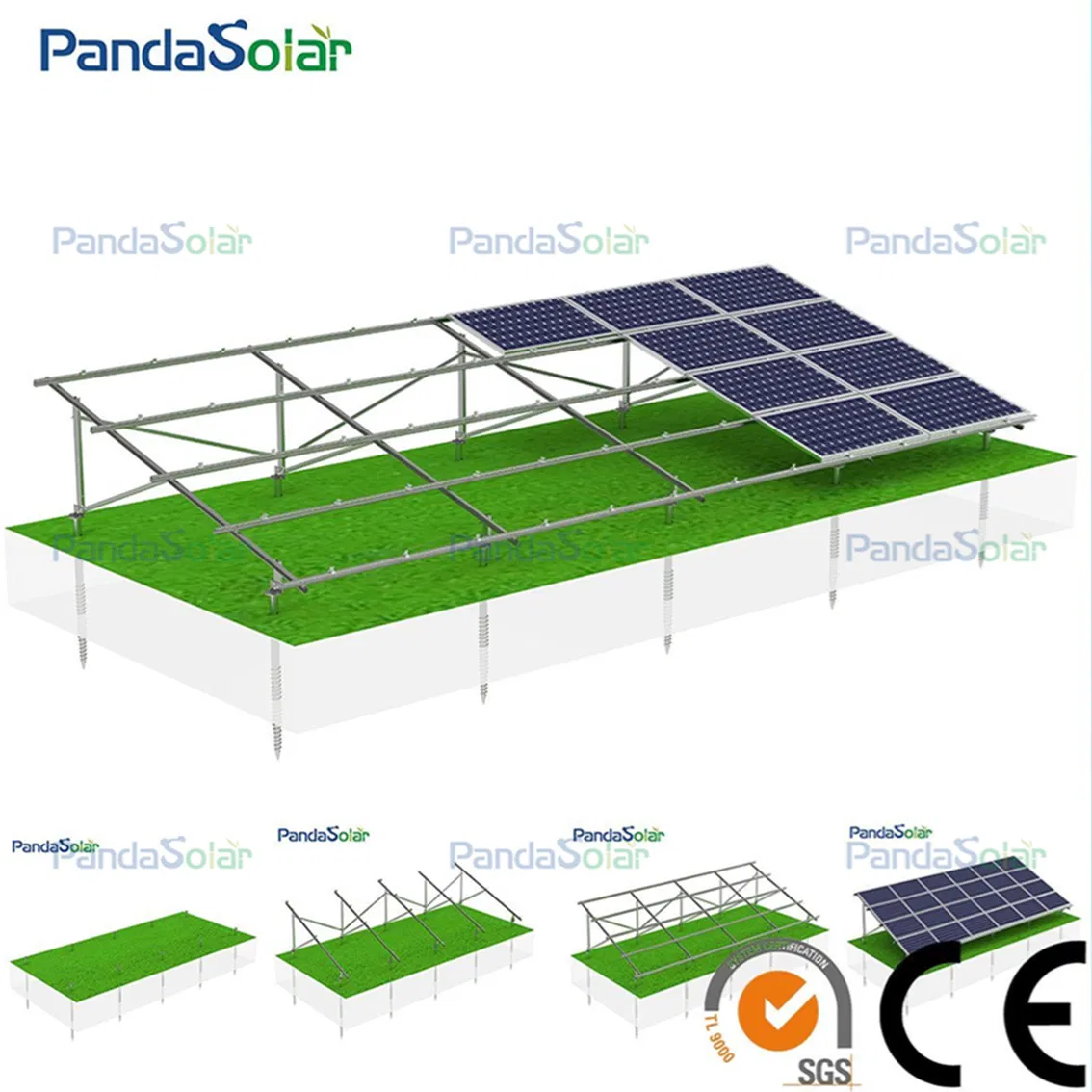

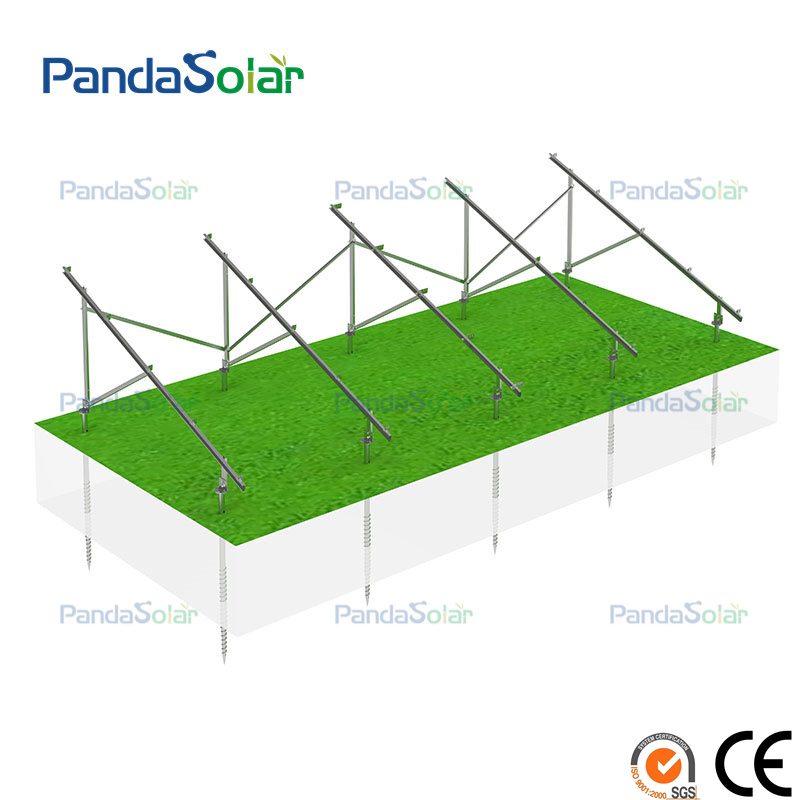

This solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs are optimized. The system ensures high durability and cost control for a long service life. Foundations options include straight-in-ground, ground screws, and cement piers.
The double column design can utilize ground bolt columns or piling columns. Ground screw posts allow for tiny height adjustments, while piling columns offer higher strength for projects requiring extreme accuracy.

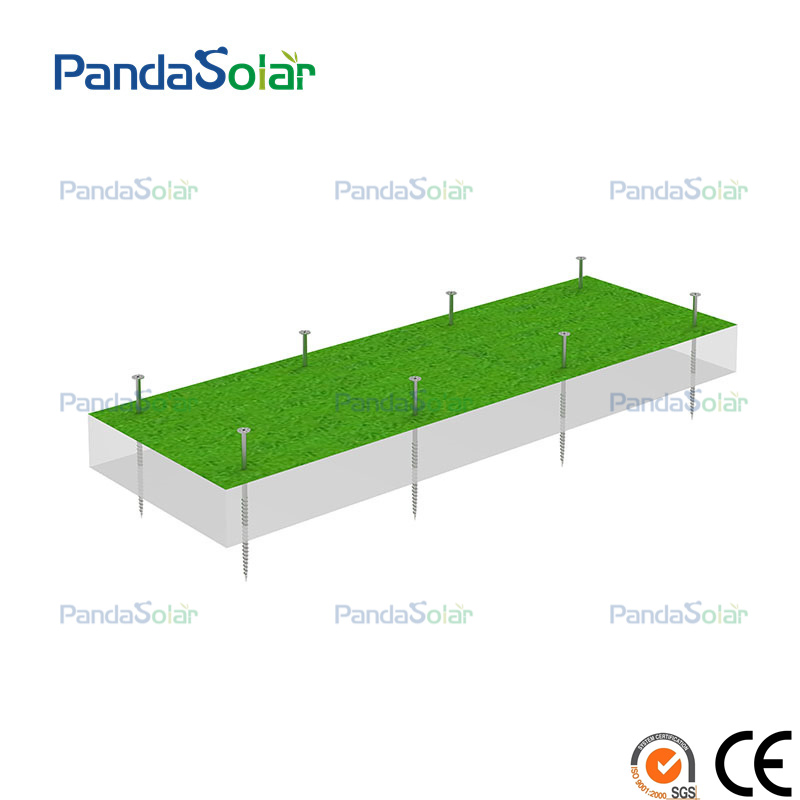

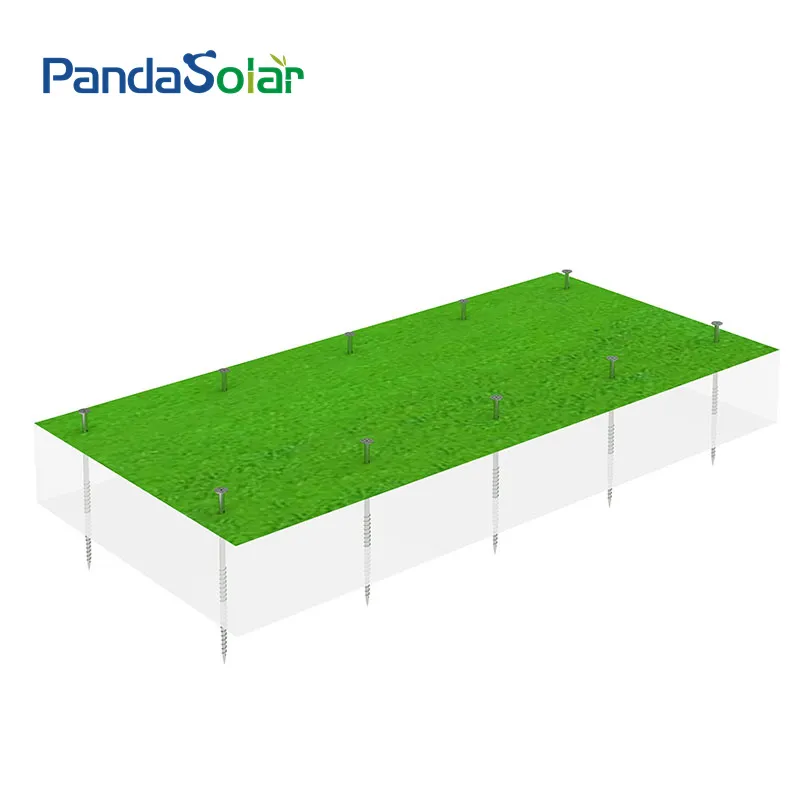

1. Installing Ground Screws: Anchoring the support structure to the ground using specialized equipment to reach the required depth based on soil type.

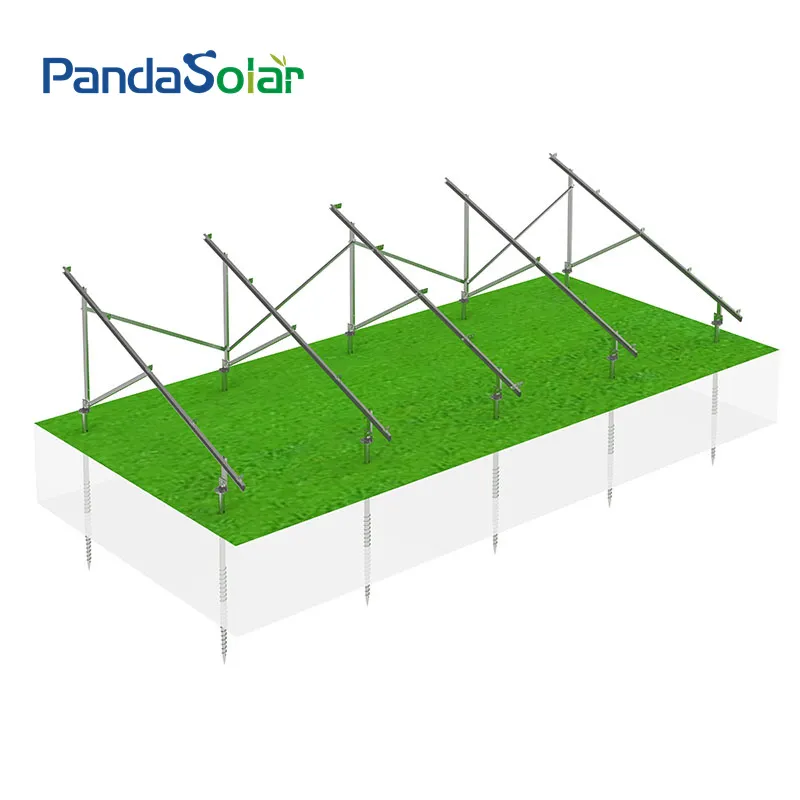

2. Install the Beams: Connecting the diagonal support pole to the top of the pole using high-strength bolts and nuts.

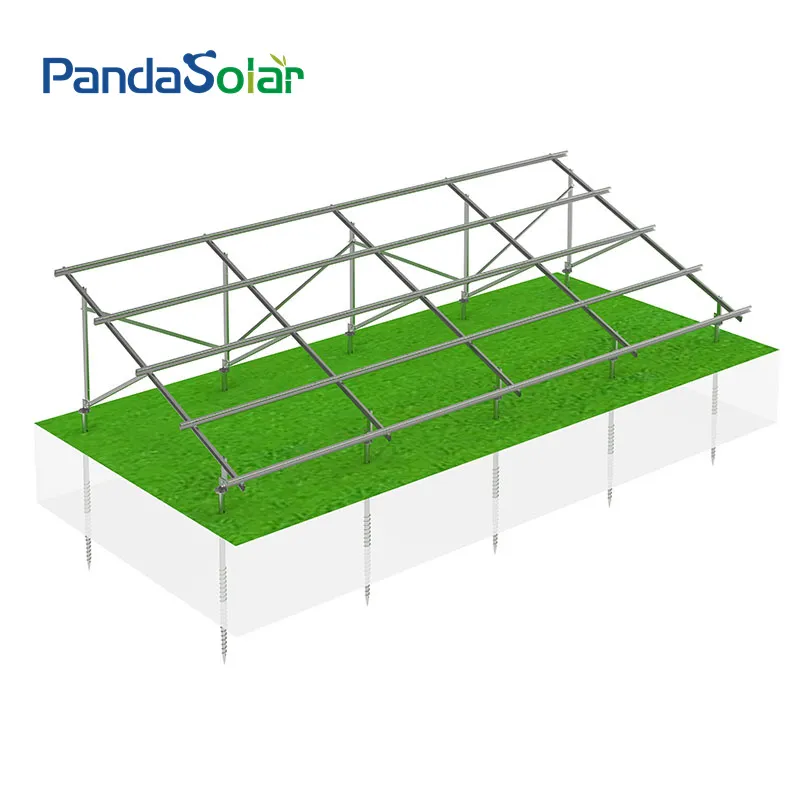

3. Installing Rails: Attaching the rails that support the solar panels using specialized brackets. Ensuring precise leveling.

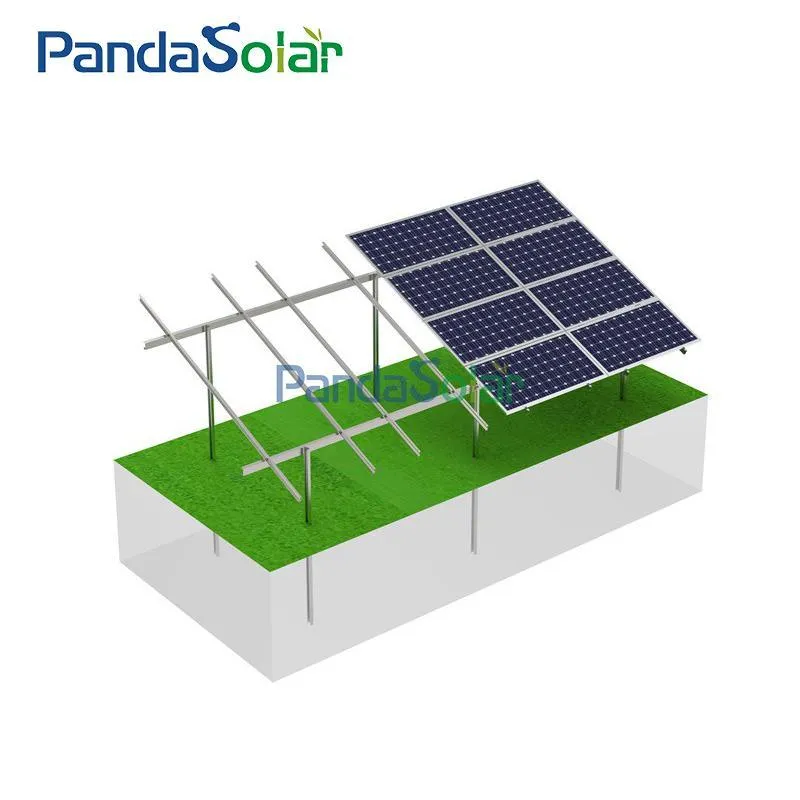

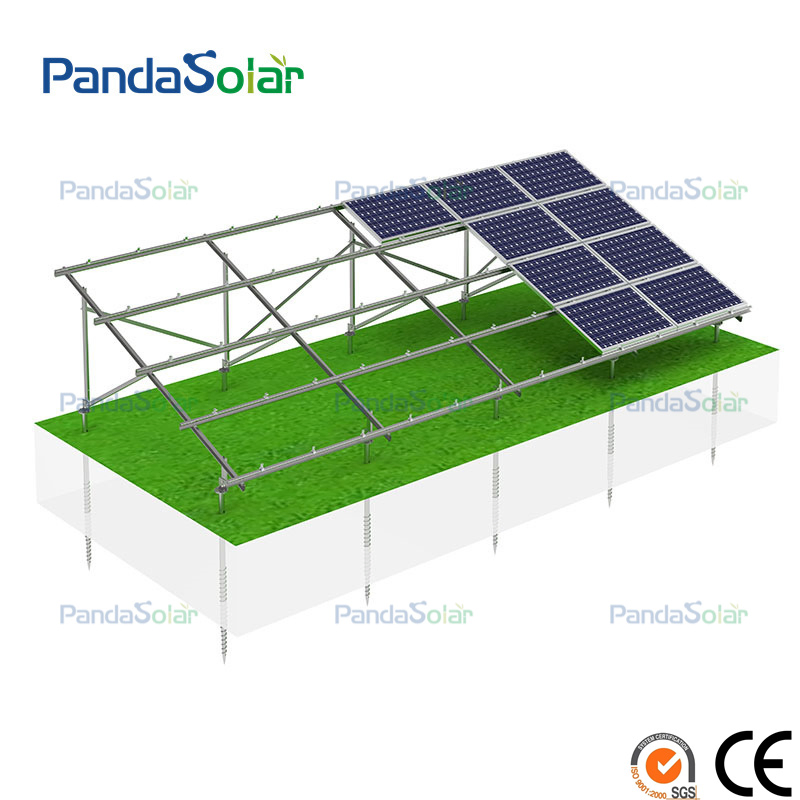

4. Installing Solar Panels: Fastening each panel securely to the rail system using specialized mounting hardware.
| Specification | Detail |
|---|---|
| Material Structure | Mg-Al-Zn & AL-6005-T5 (Anodized) |
| Components | SUS304 & AI6005-5 (Anodized) |
| Application | Commercial and Residential Installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |

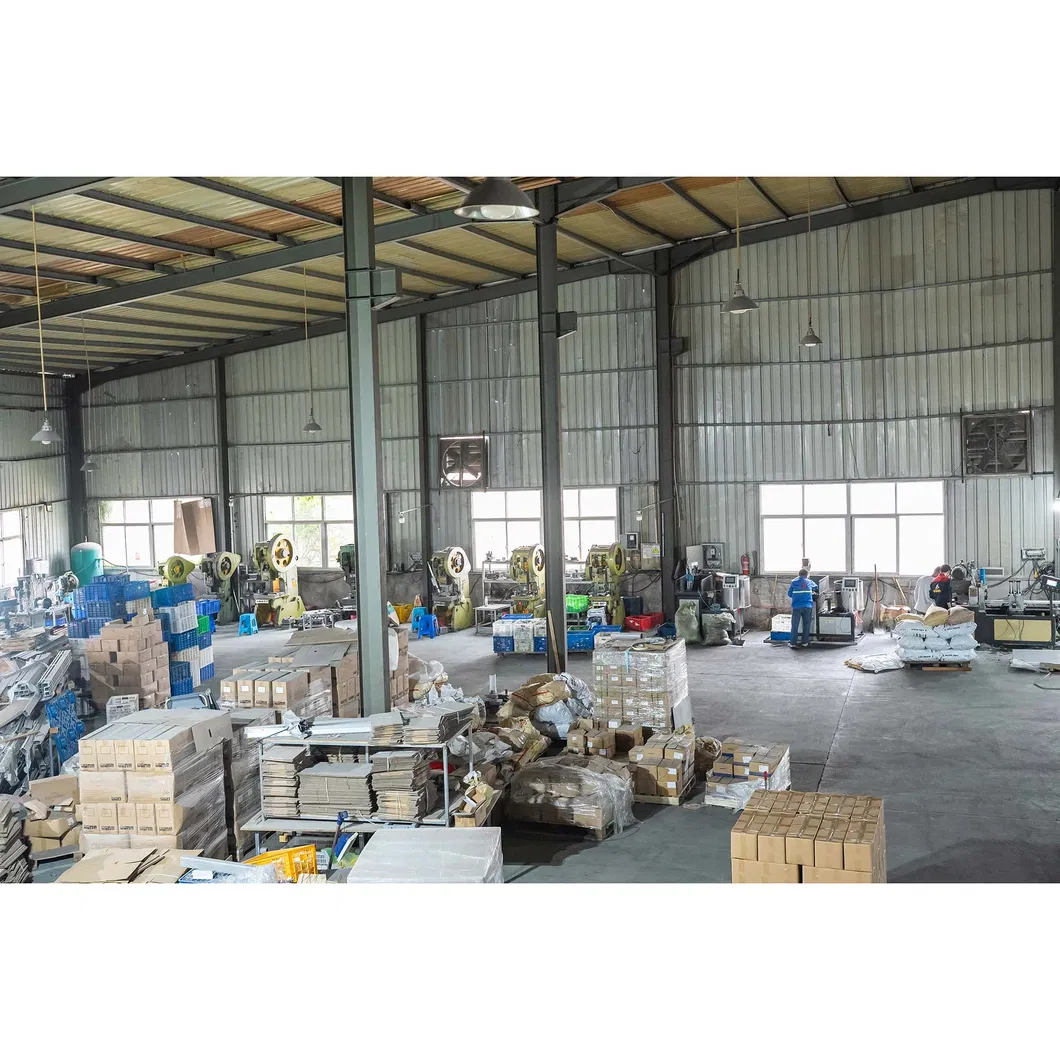

The manufacturing facility features dedicated workshops for aluminum and steel processing. The aluminum workshop handles cutting, drilling, and stamping independently, allowing for high customization. The steel workshop operates 6 production lines with a monthly capacity of 40-50MW, specializing in Magnesium Aluminum Zinc and S350GD/S450GD materials.
