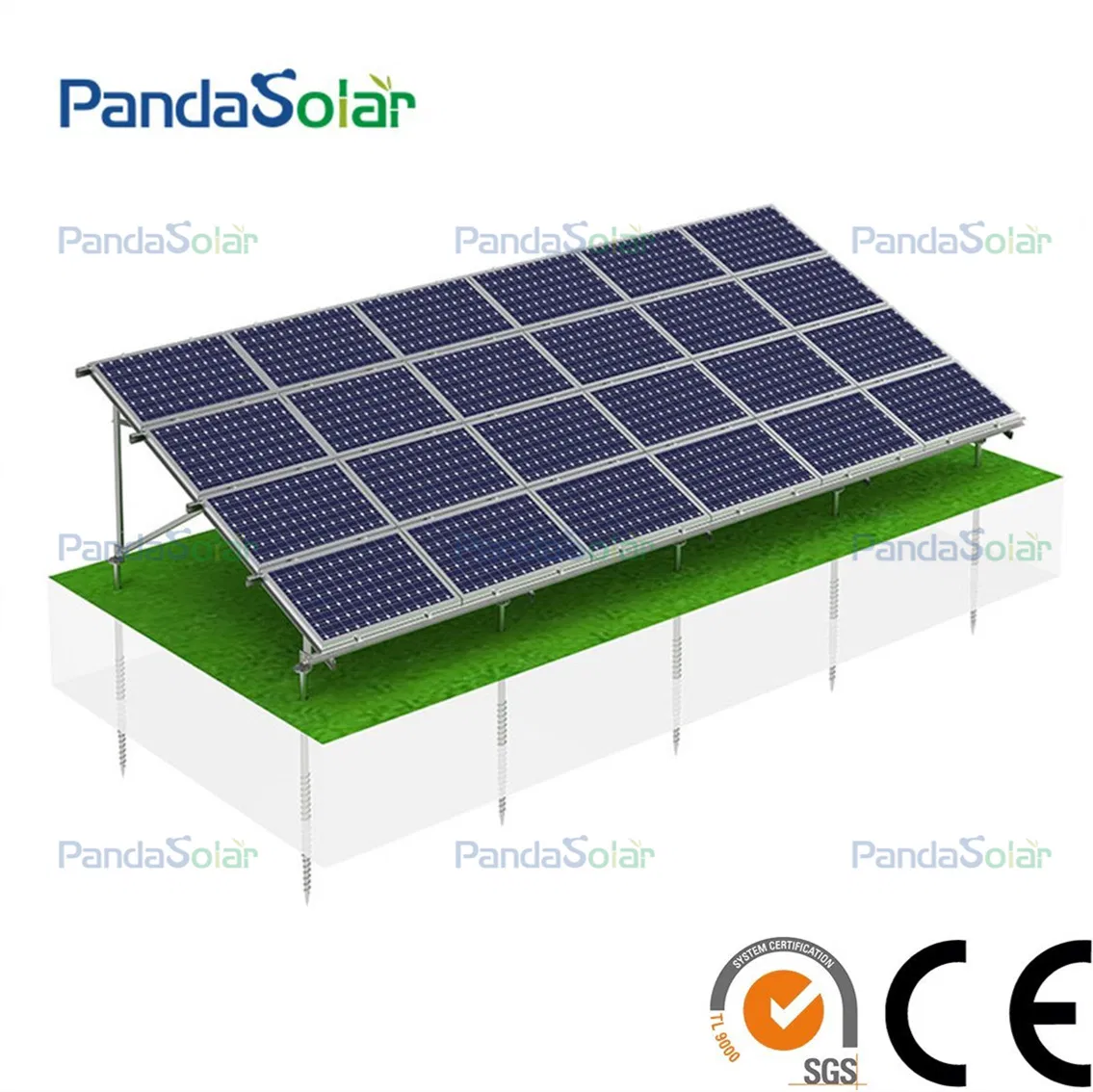

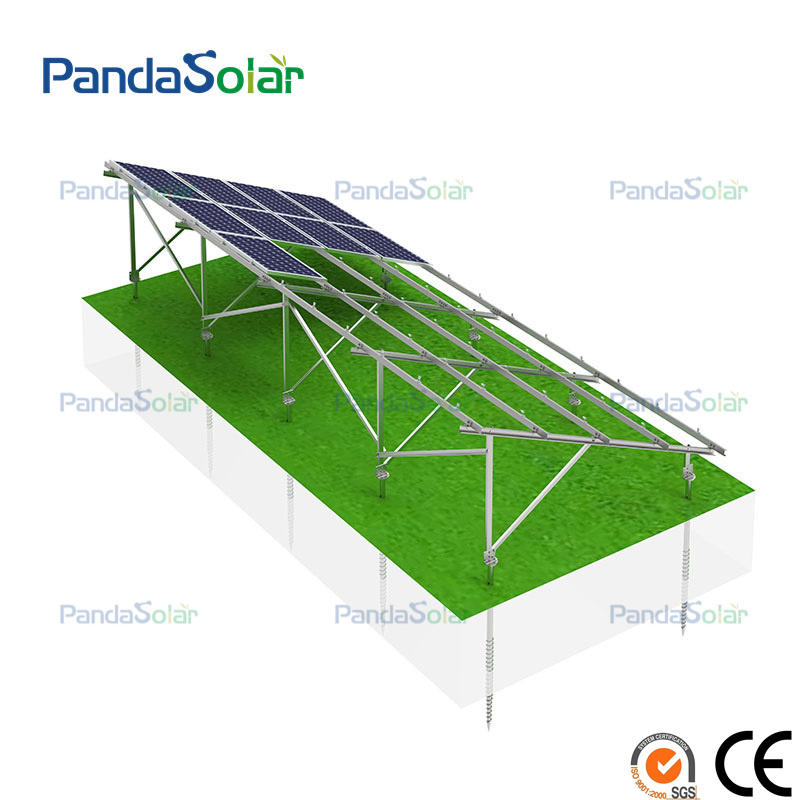

Pandasolar Megnesium-Aluminum-Zinc Plating Solar Panel Ground Mounting System Structure Exm Manufacturer

Basic Info.

Model NO.

PD-GM-04

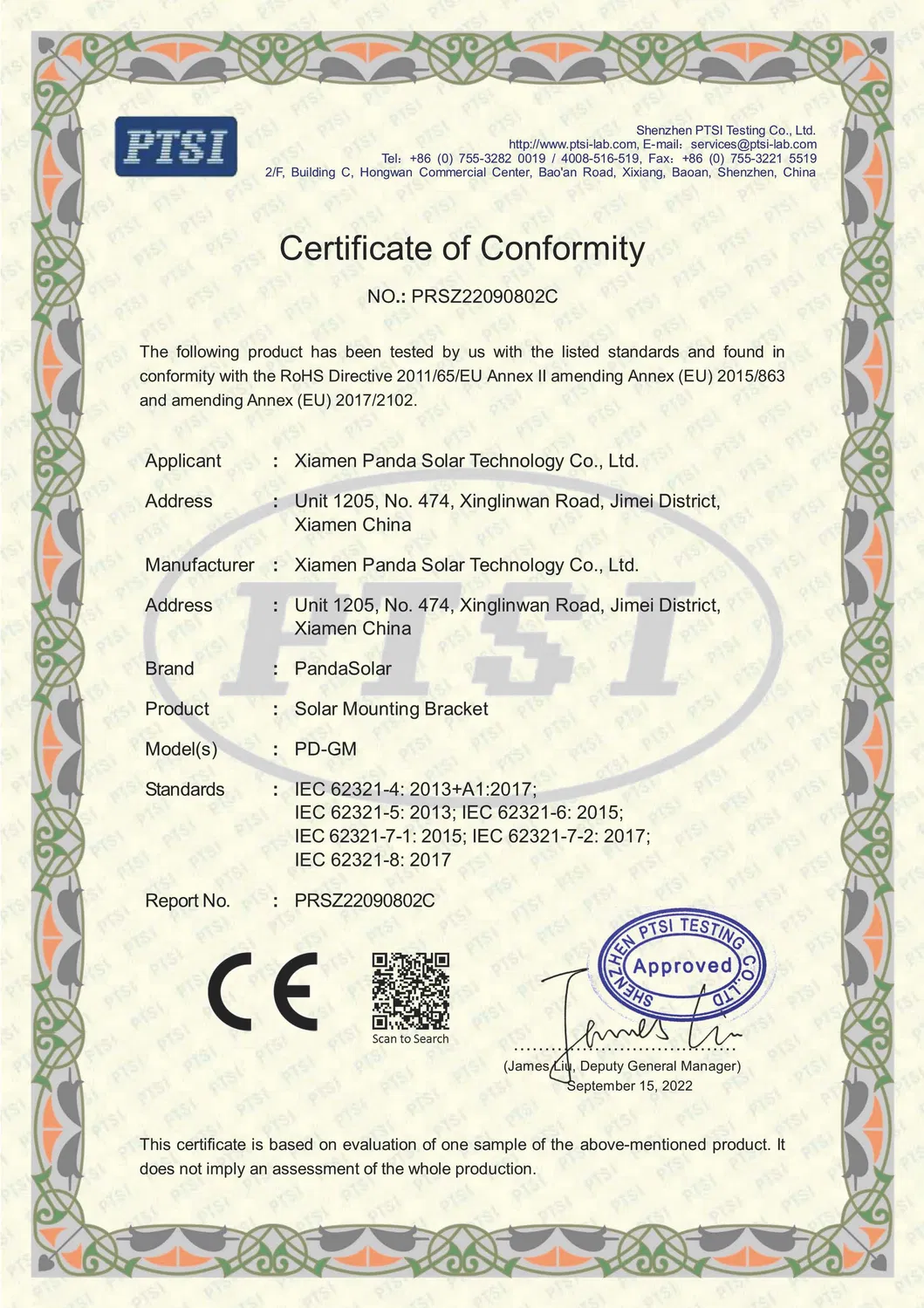

Certification

CE

Application

Commercial

Material

Steel

Type

Ground Bracket

Wind Speed

60m/S

Snow Load

1.4kn/M2

Surface Treatment

Magnesium Aluminum Zinc

Lead Time

7-15 Days

Product Description

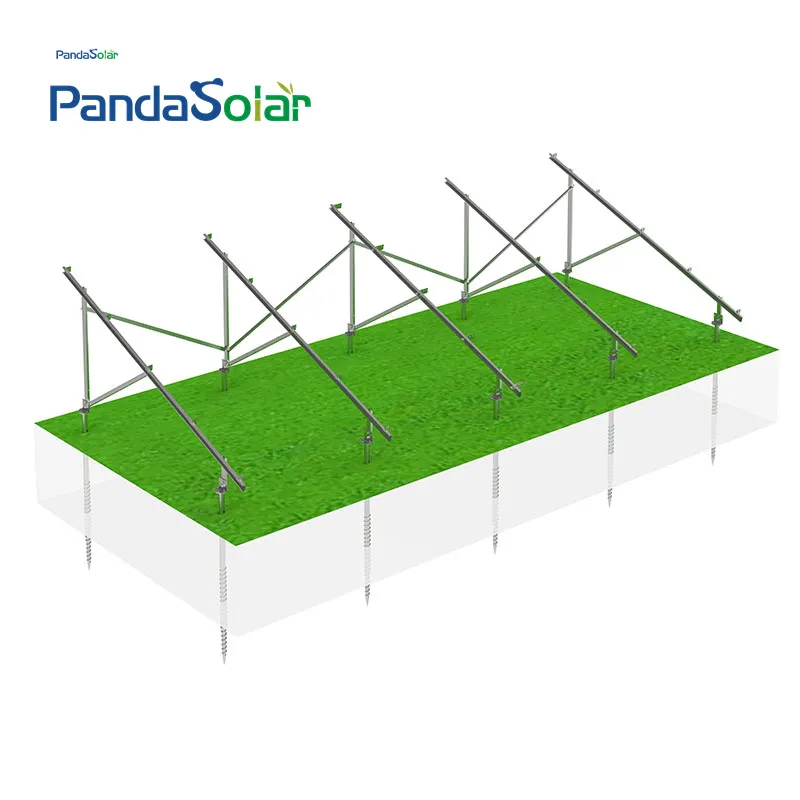

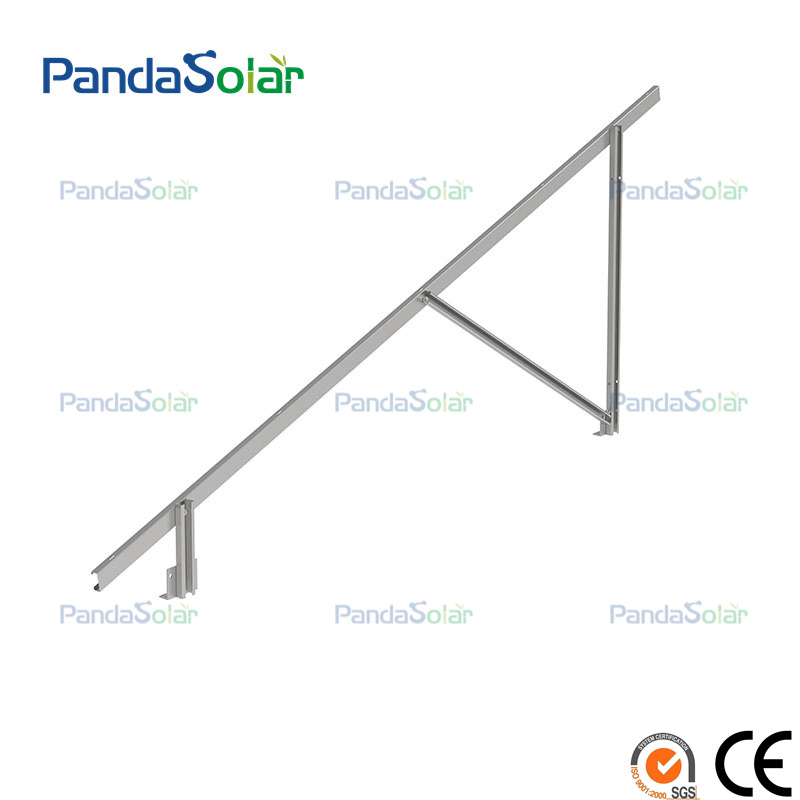

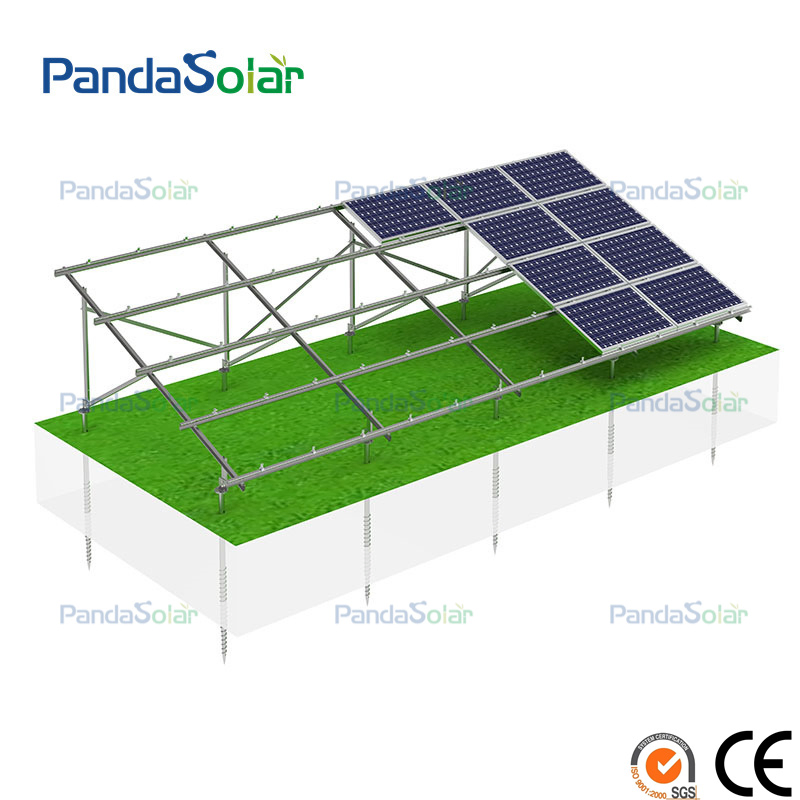

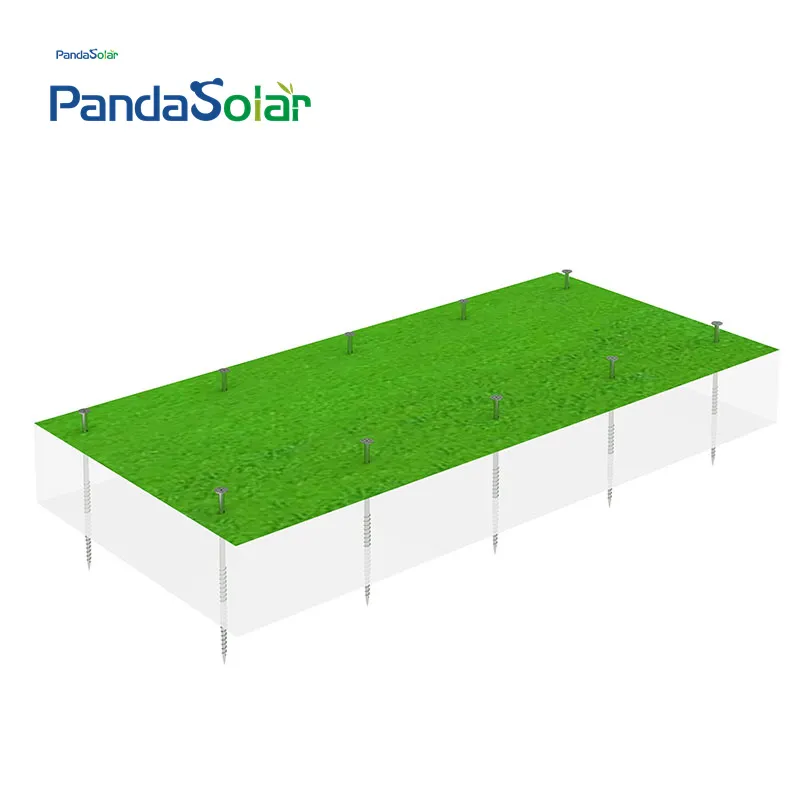

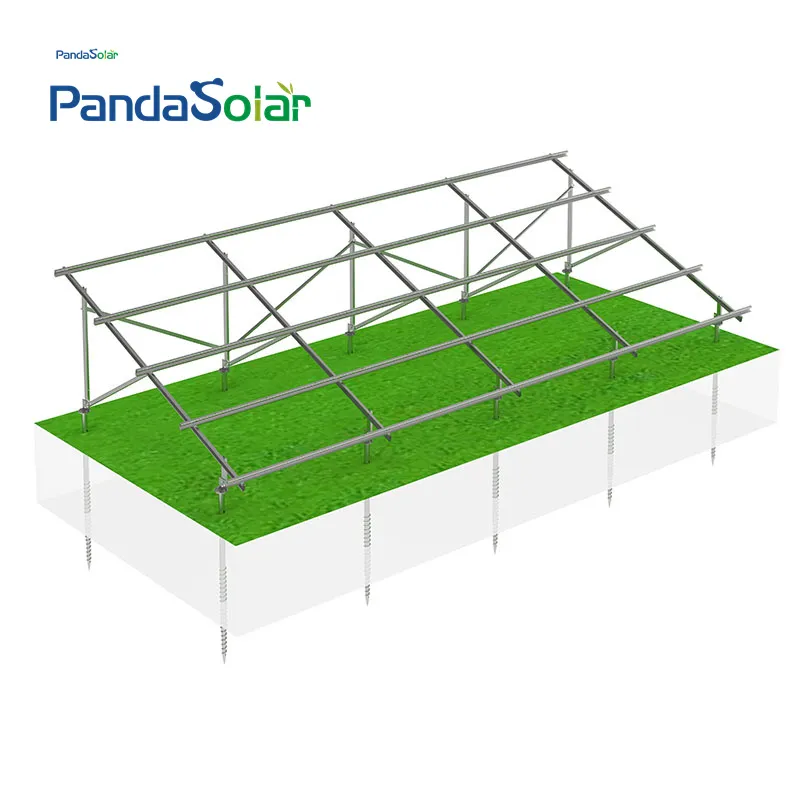

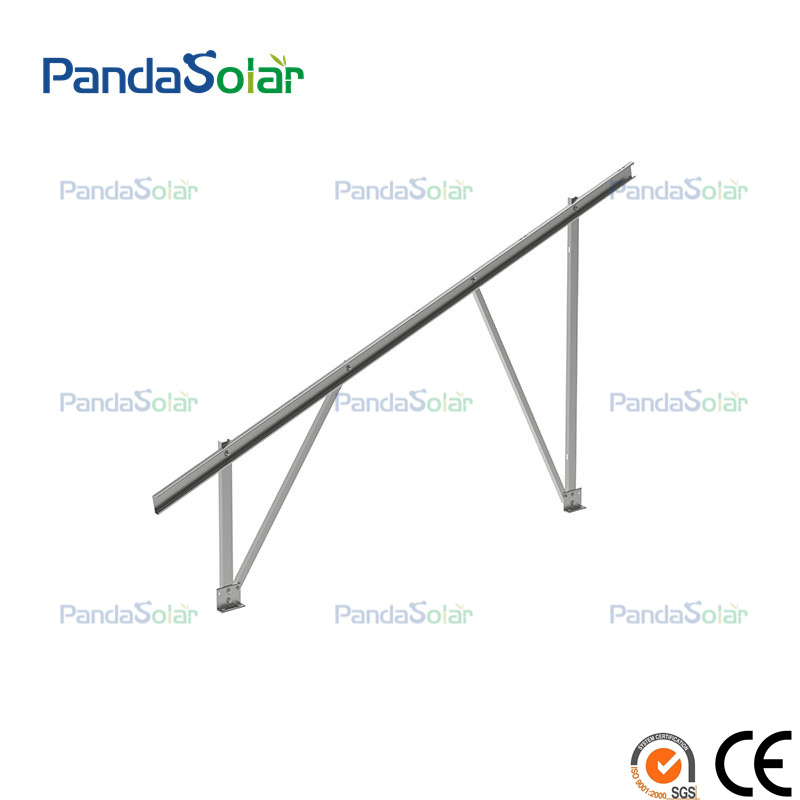

Magnesium Aluminum Zinc Ground Mounting Systems are strictly designed according to maximum wind speed, snow load, and panel specifications. These systems ensure high strength while optimizing installation efficiency and labor costs. Foundations include straight into ground, ground screws, and cement piers. The GM4 double column supports both ground bolt and piling columns, with ground screw posts allowing for precise height adjustments.

Structural Features

⚙️Simple Structure
Double-column design

🏗️High Strength
Robust load bearing

🛡️Self-Healing
Magnesium Aluminum Zinc

💰Cost-Effective
Inexpensive quality

Key Advantages

🔸 Highly Pre-assembled: Reduces onsite labor.
🔸 Great Flexibility: Adapts to various designs.
🔸 Long Service Life: Durable materials for longevity.
🔸 OEM Support: Customization accepted.
🔸 Easy Installation: Efficient setup process.

Product Parameters

Material	Mg-Al-Zn & AL-6005-T5 (Anodized); Components: SUS304
Application	Commercial and Residential installation
Tilt Angle	0-60°
Wind Speed	0-60 m/s
Snow Load	0-150cm
Ground Clearance	0-1m
Design Standard	AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty	12 years

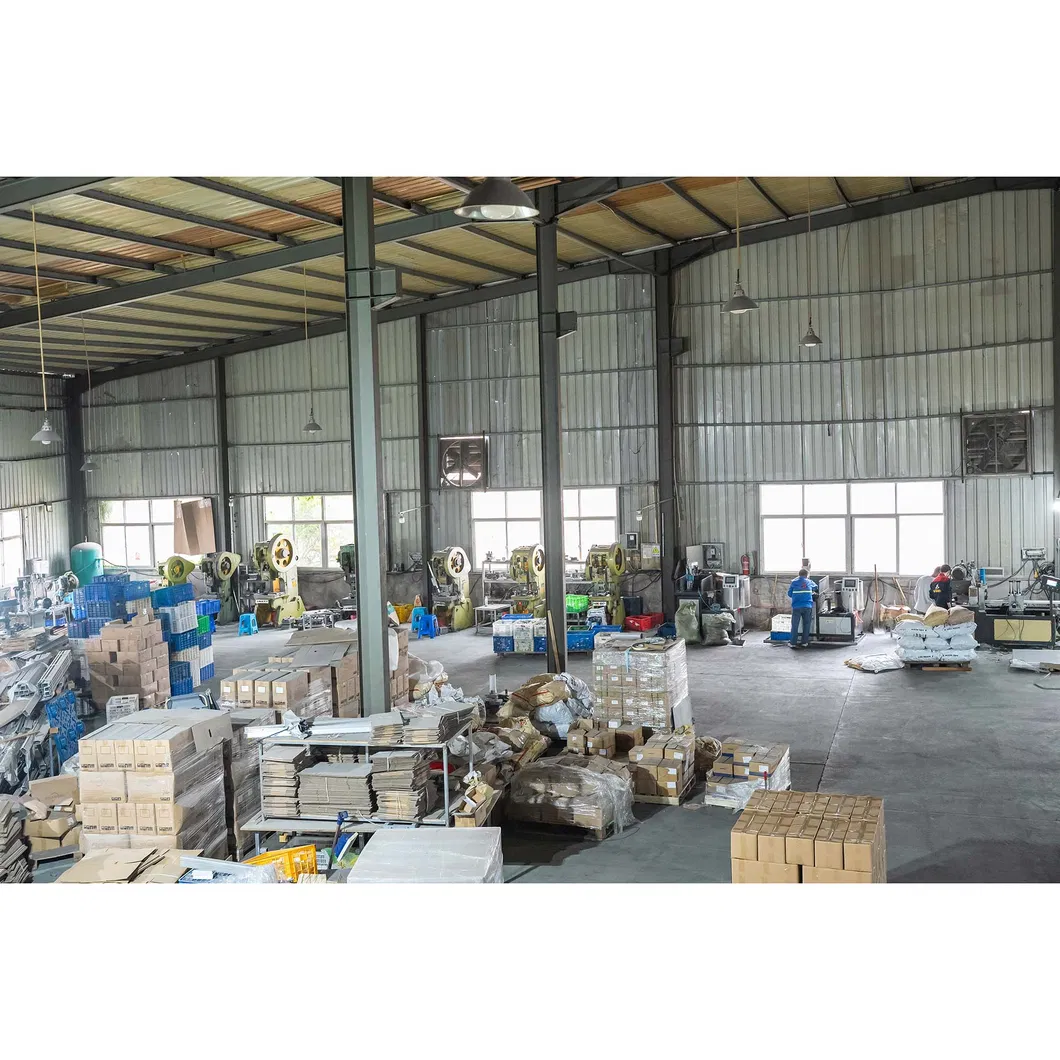

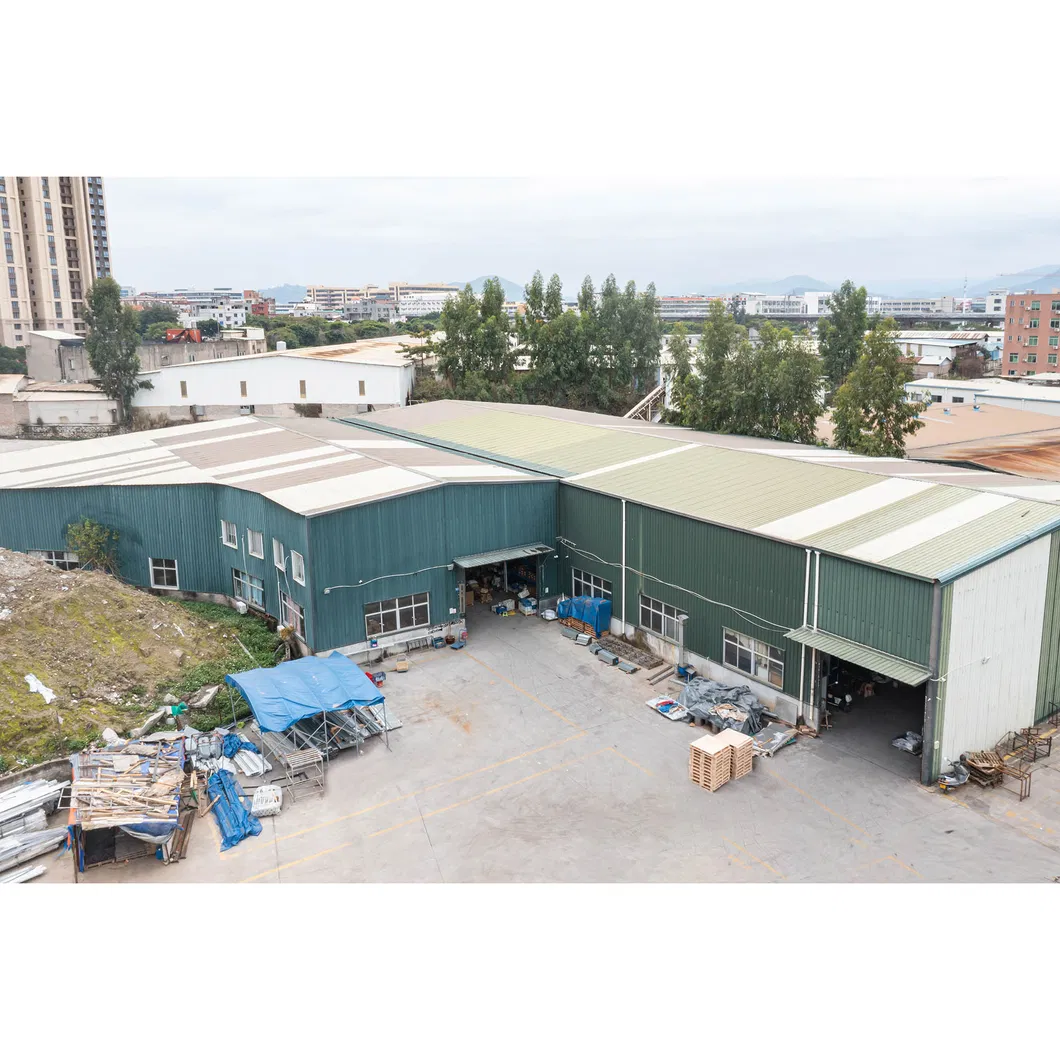

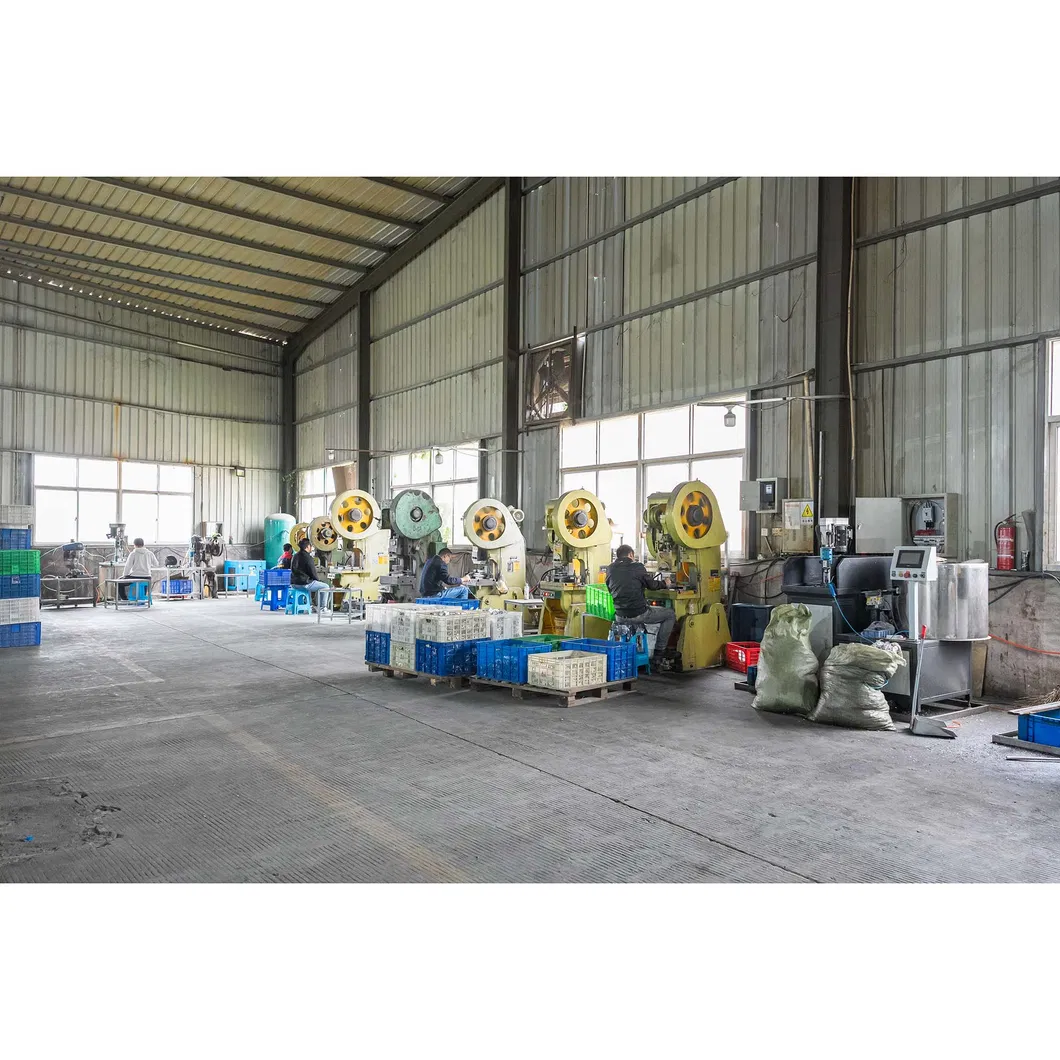

Manufacturing Workshop

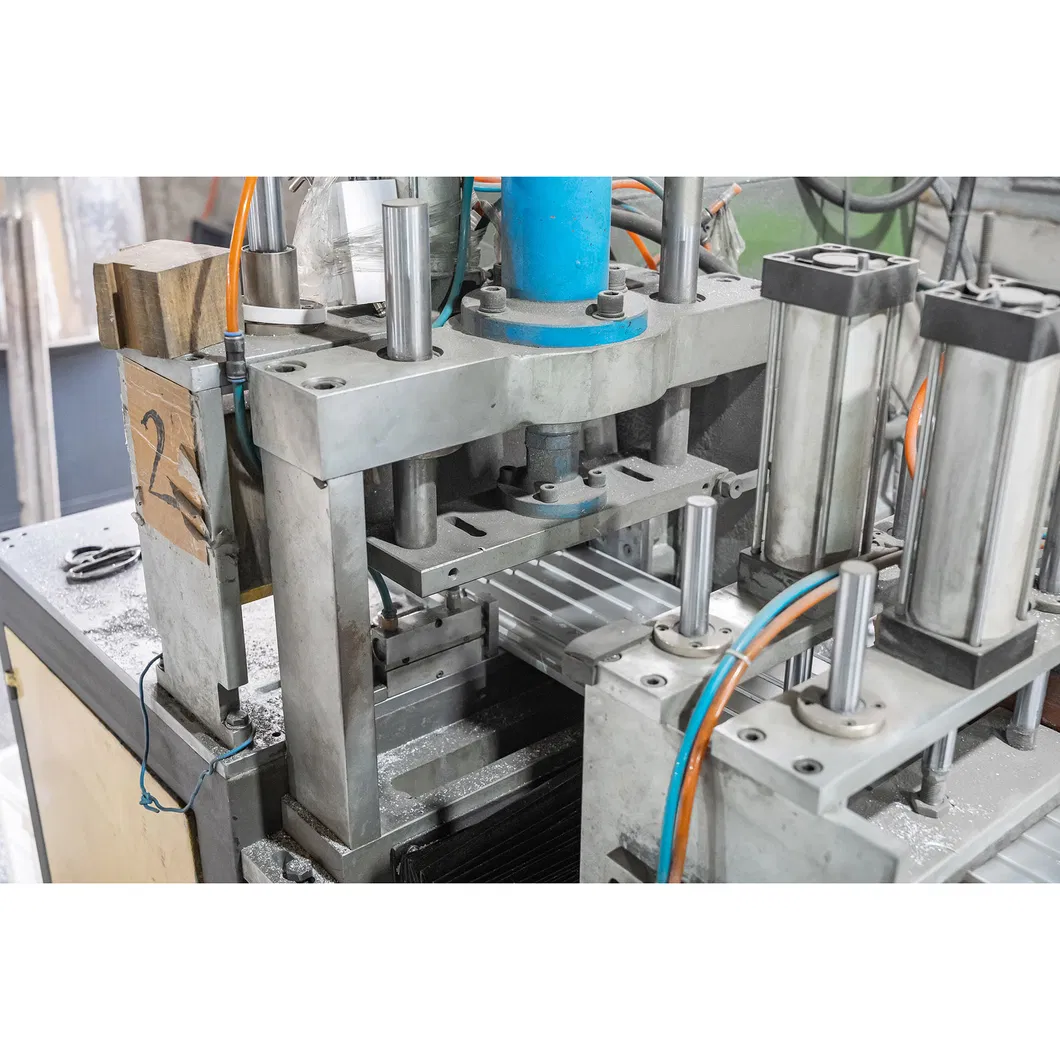

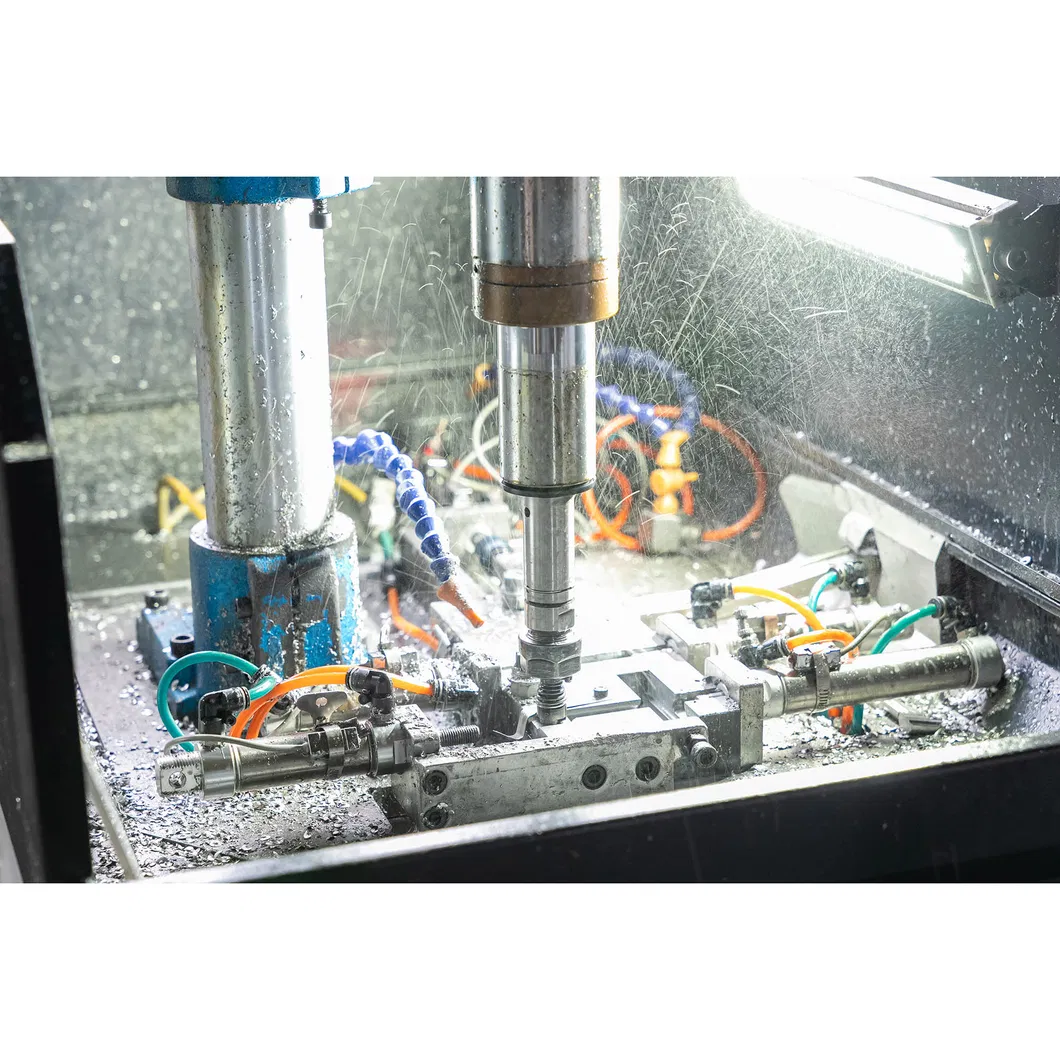

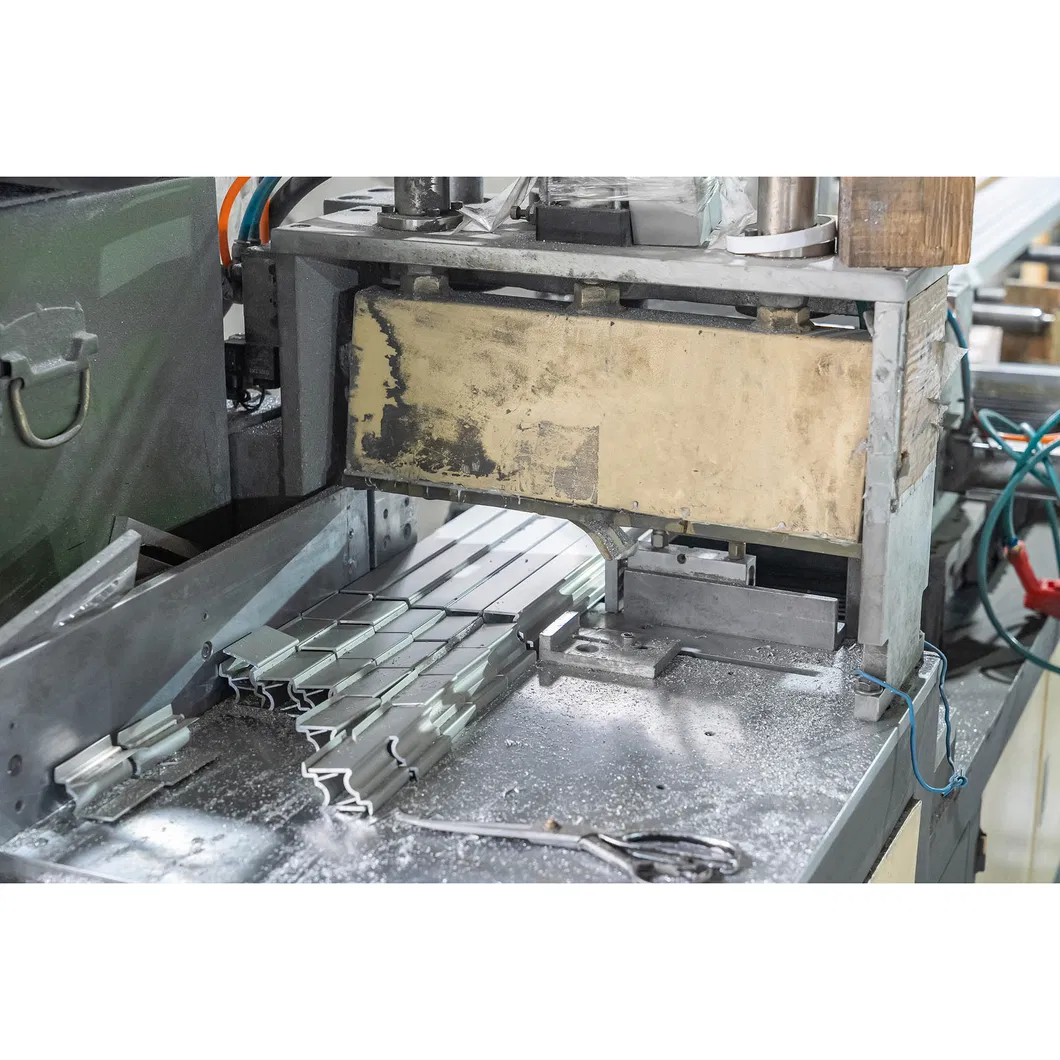

Aluminum Workshop: Professional alloy processing including cutting, drilling, stamping, and forging. Supports high customization and precision requirements.

Steel Workshop: Specializes in Steel, Magnesium Aluminum Zinc, S350GD, and S450GD. Features 6 production lines with a monthly productivity of 40-50MW.
