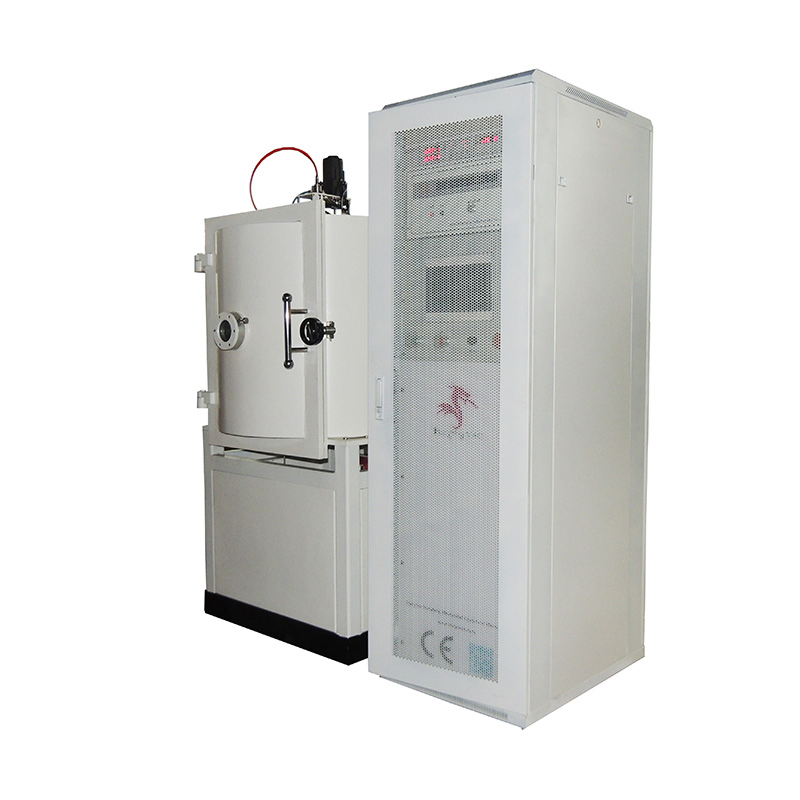

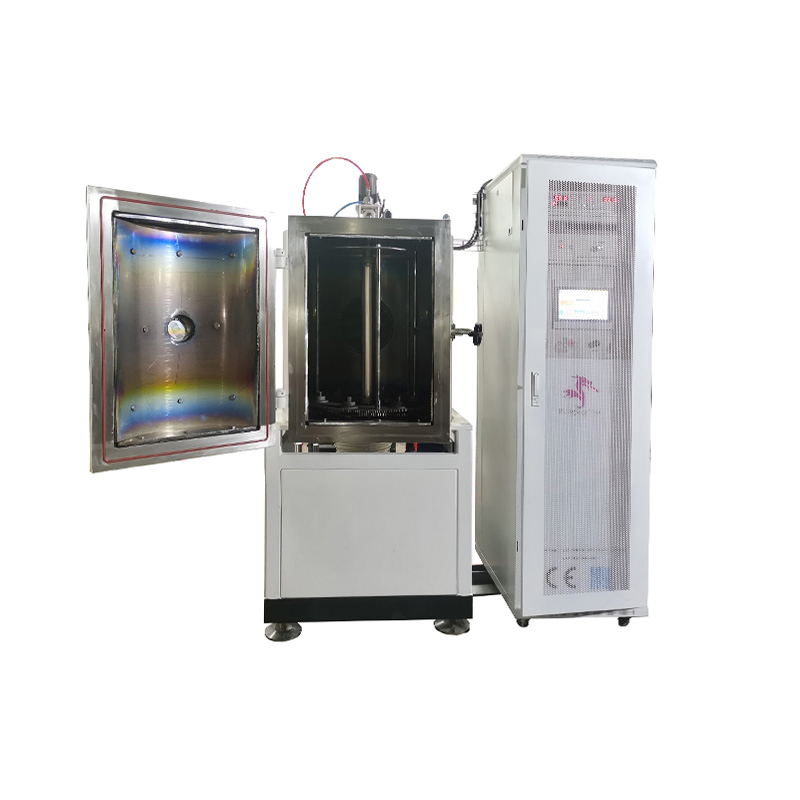

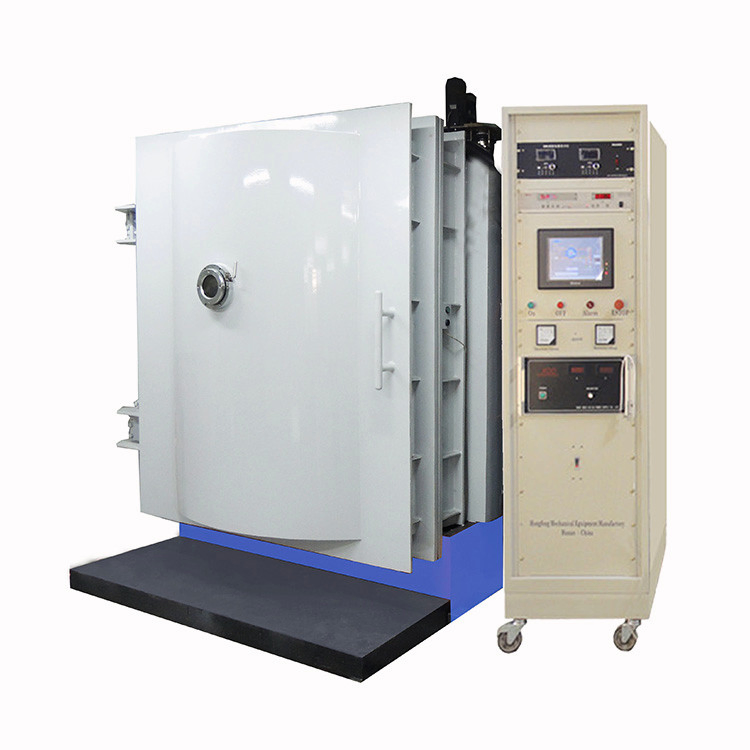

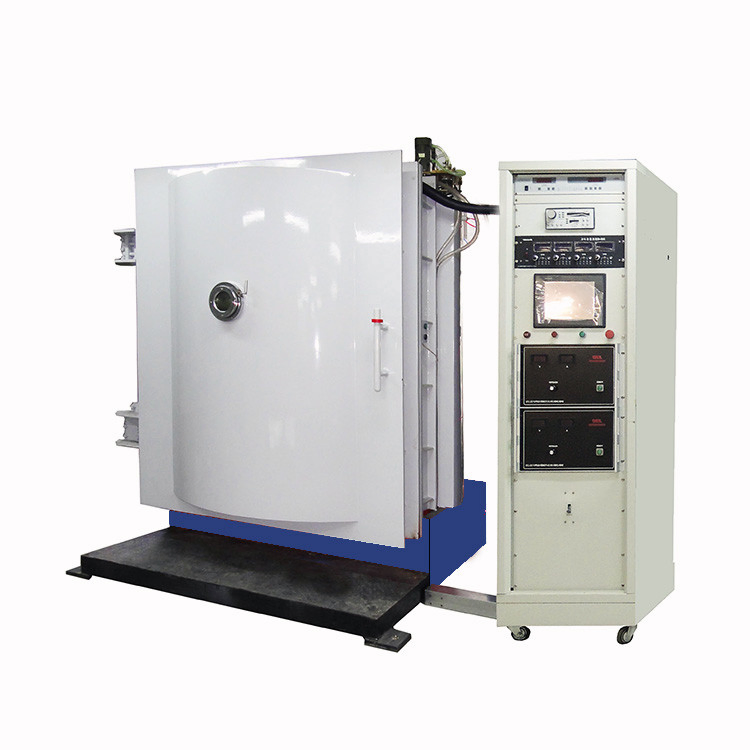

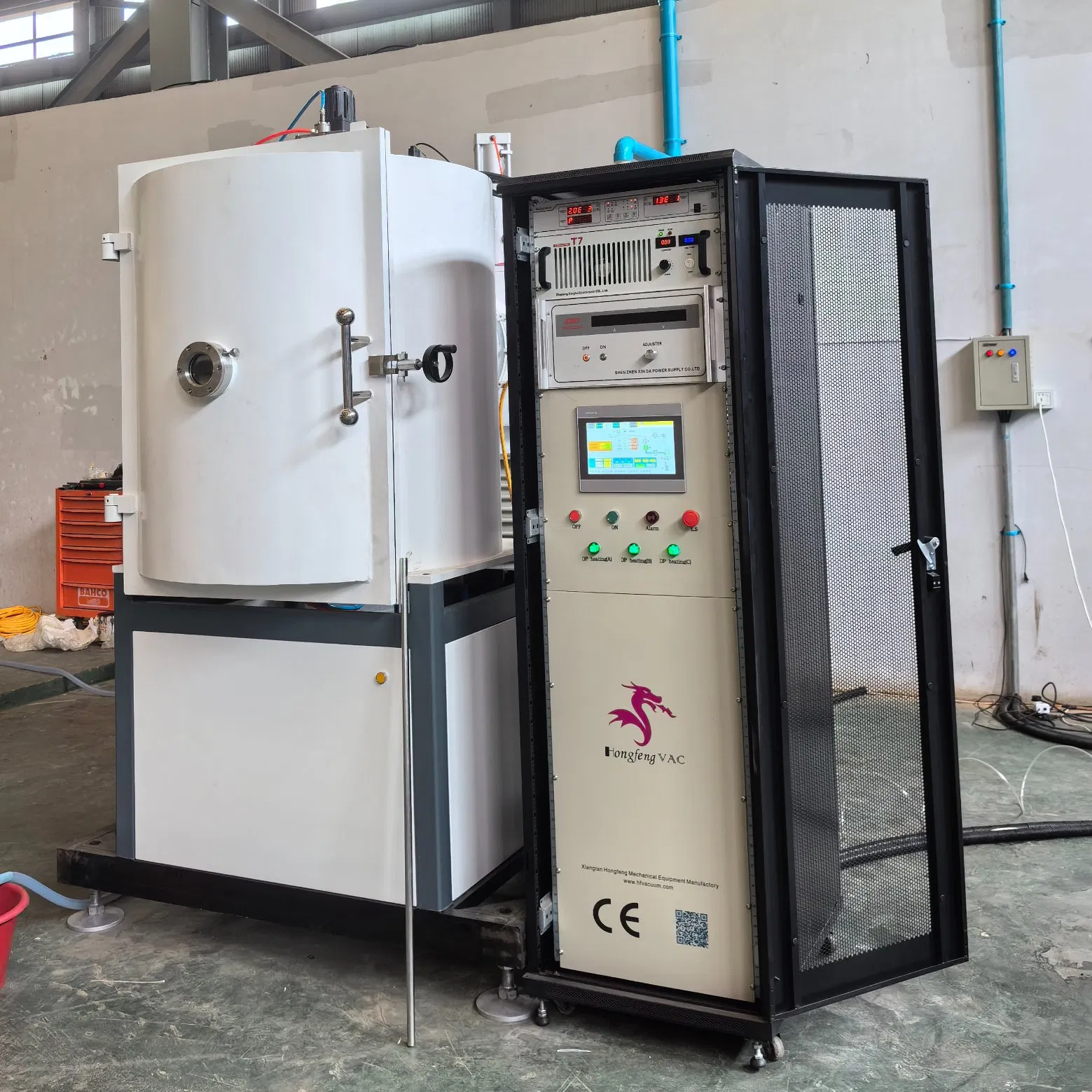

Vacuum Plating Silver Thin Film Deposition Magnetron Sputtering System
The equipment features a reasonable structure, providing uniform coating of high quality. It boasts high pumping speeds, short cycles, and high efficiency with easy operation. Its low energy consumption and stable performance make it ideal for various industries including automotive, audio, small appliances, computers, watches, toys, and cell phones.

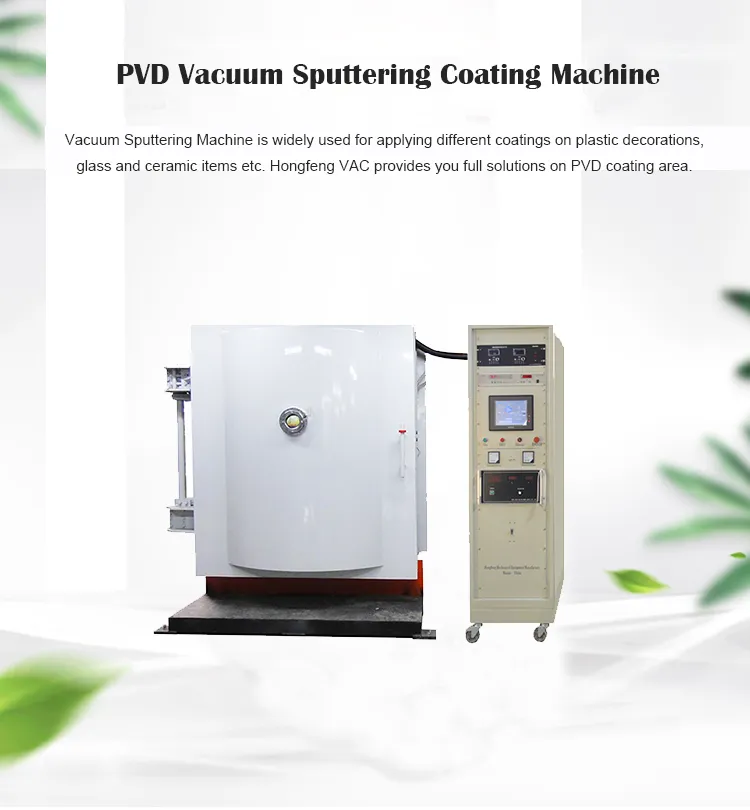

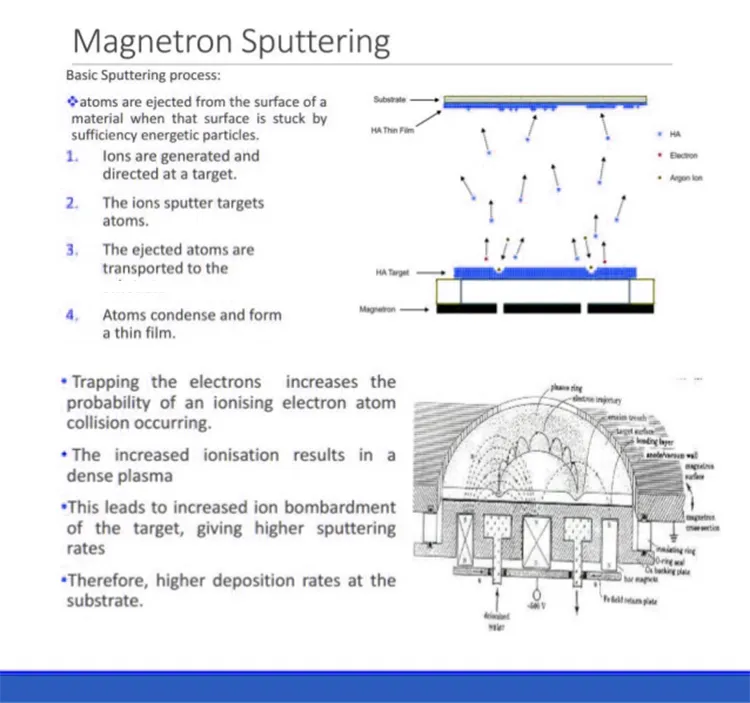

DC magnetron sputtering coating machine is typically used for direct sputtering coating on various substrates such as plastics, glass, metal, and ceramics.
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
|---|---|---|---|---|
| Vacuum Chamber Dimension (D*H) | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Material | Carbon steel, SUS304 or SUS316L | |||

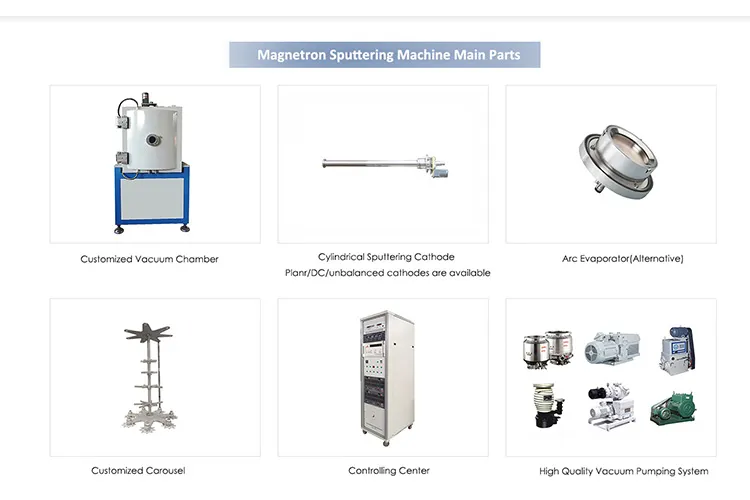

| Sputtering Cathodes | ≥1 sets, DC sputtering system, cylindrical or rectangle | |||

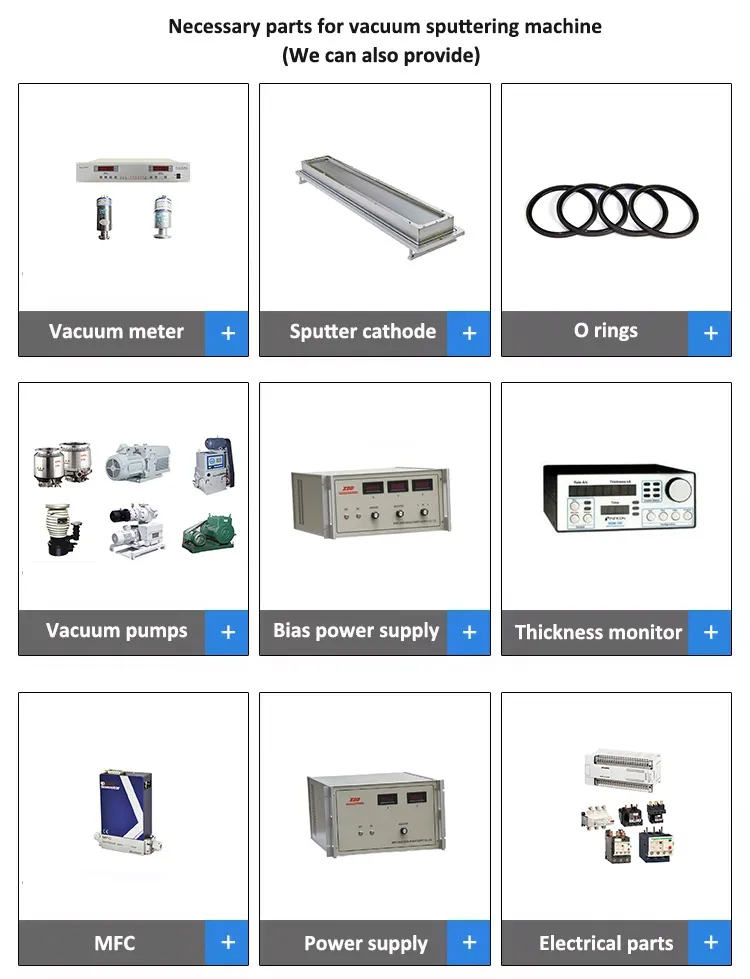

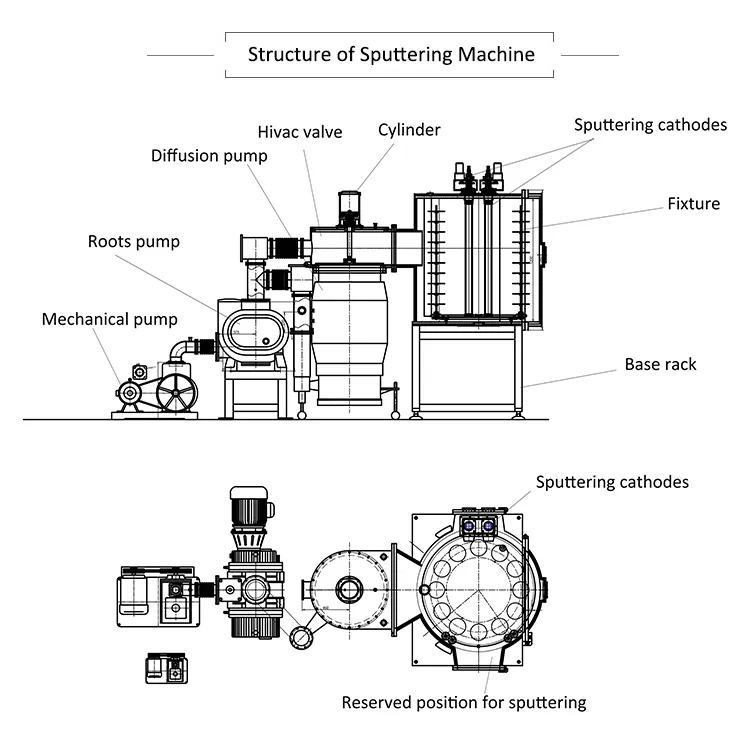

| Pumping System | Turbo molecular pumps or diffusion pump + mechanical pump | |||
| Pumping Time | Atmosphere to 5.0*10-2Pa < 8 minutes | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Total Power | 40-100kW | 70-1000kW | ||
Note: All specifications can be customized according to your requests.
