Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Customization:	Available
Customized:	Customized
Certification:	ISO9001

i

Basic Information

Model NO.

UIC54, UIC60, 115RE, 50kg, 60kg rail

Type

Rail Shoulder

Material

QT500-7 (GGG50) / QT450-10

Surface

Plain (Oiled) / Black Treated

Application

Pre-Stressed / Bi-Block Concrete Ties

Condition

New

Origin

China

HS Code

8608009000

★

Product Introduction

Plain Surface Cast Iron 5.6 Grade Rail Shoulders are cast in concrete ties for the fixation of Elastic Rail Clips. These Iron Shoulders are manufactured from high-quality pearlitic malleable iron (M.C.I. Inserts) and spheroid graphite iron (S.G.C.I. Inserts).

We offer two main types: Single Stem Iron Shoulders, primarily used in pre-stressed concrete ties, and Twin Stem Iron Shoulders, commonly utilized in Bi-Block or Twin Block concrete ties. These accessories are designed for specific rail sections to ensure optimal elastic clip toe loading and weld integrity.

📋

Technical Parameters

Feature	QT500-7 (GGG50)	QT450-10 (GGG45)	QT400-15 (GGG40)
Chemical Composition (%)	C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025	C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, P:≤0.07, S:≤0.03	C:3.5-3.60, Mn:≤0.5, Si:3.00-3.20, P:≤0.07, S:≤0.02
Surface Finish	Plain (Oiled) or Black Treatment
Compatible Rails	UIC54, UIC60, 115RE, 50kg, 60kg, BS80lbs, BS100lbs

📷

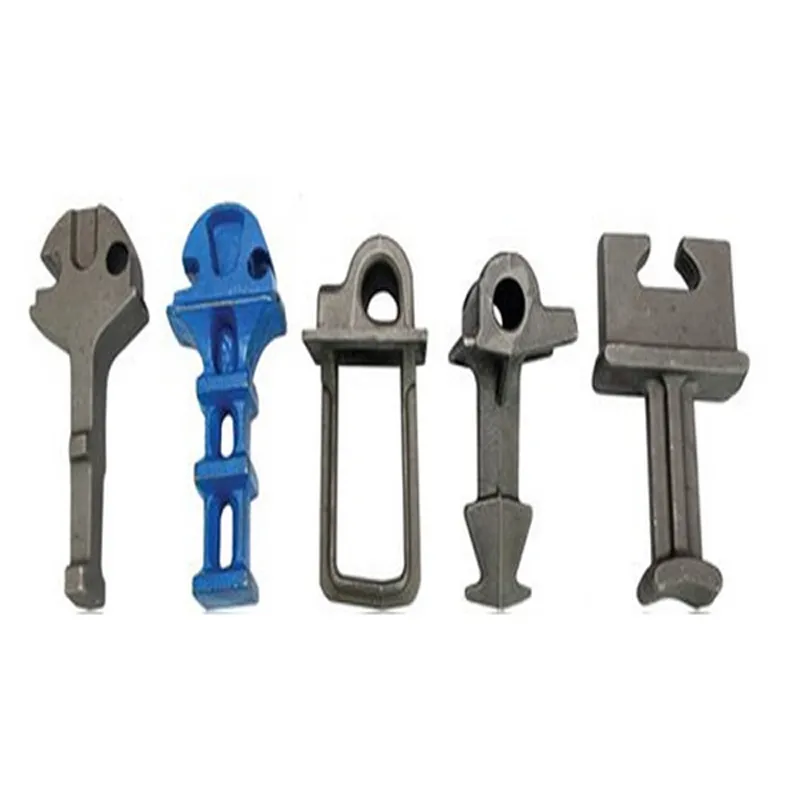

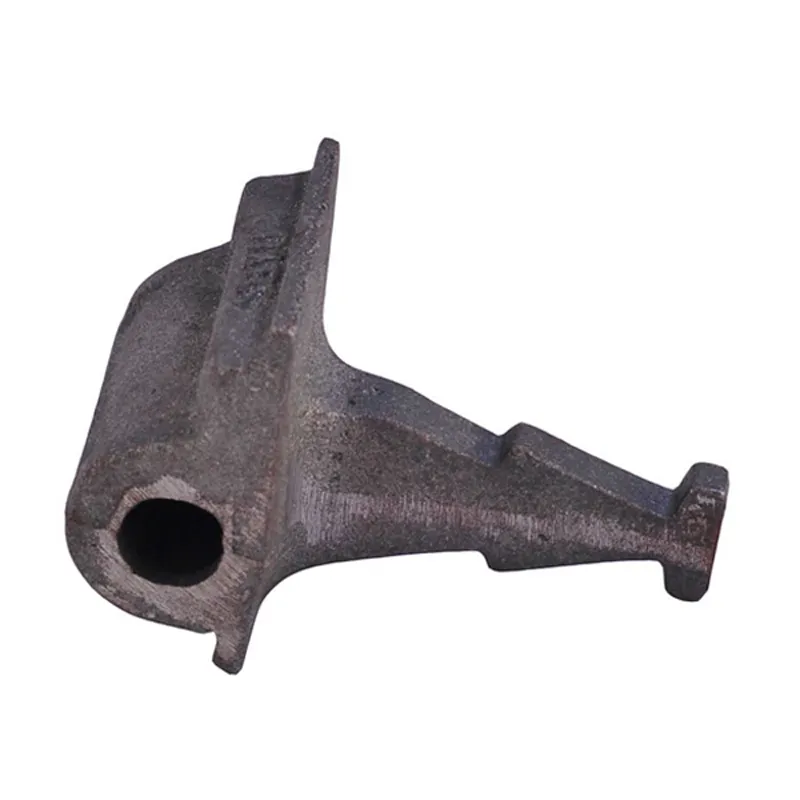

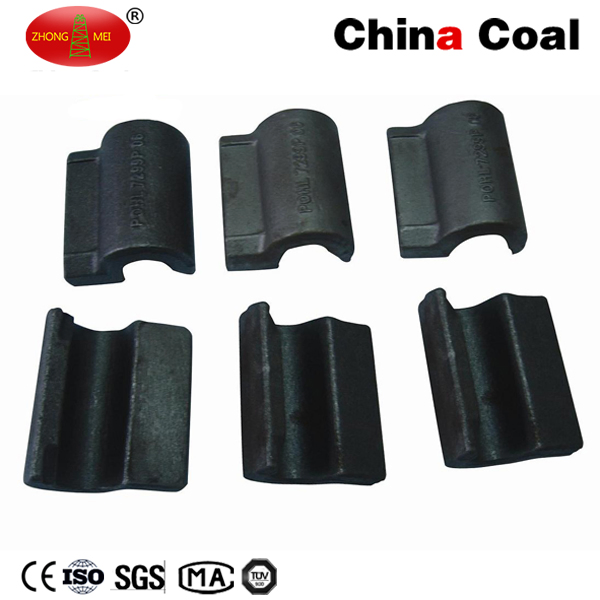

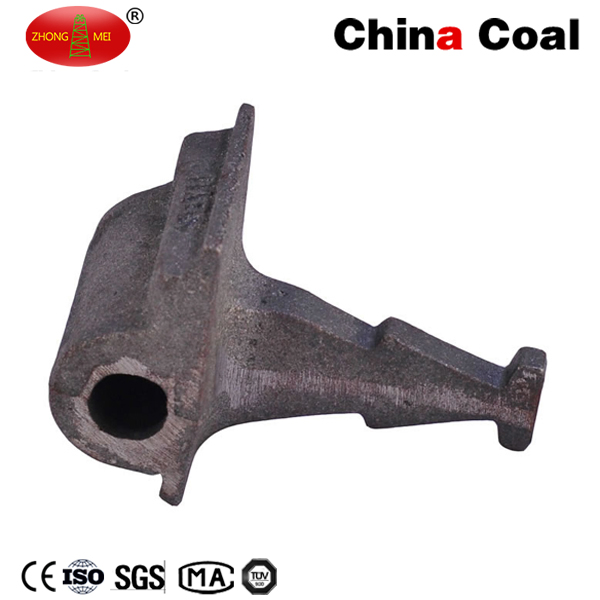

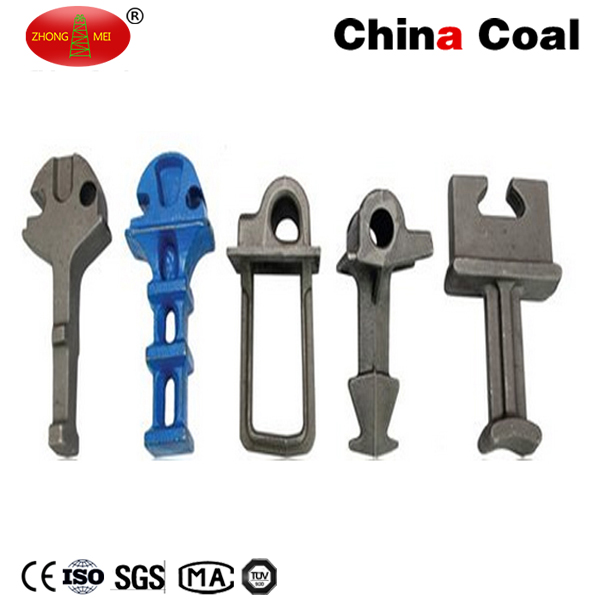

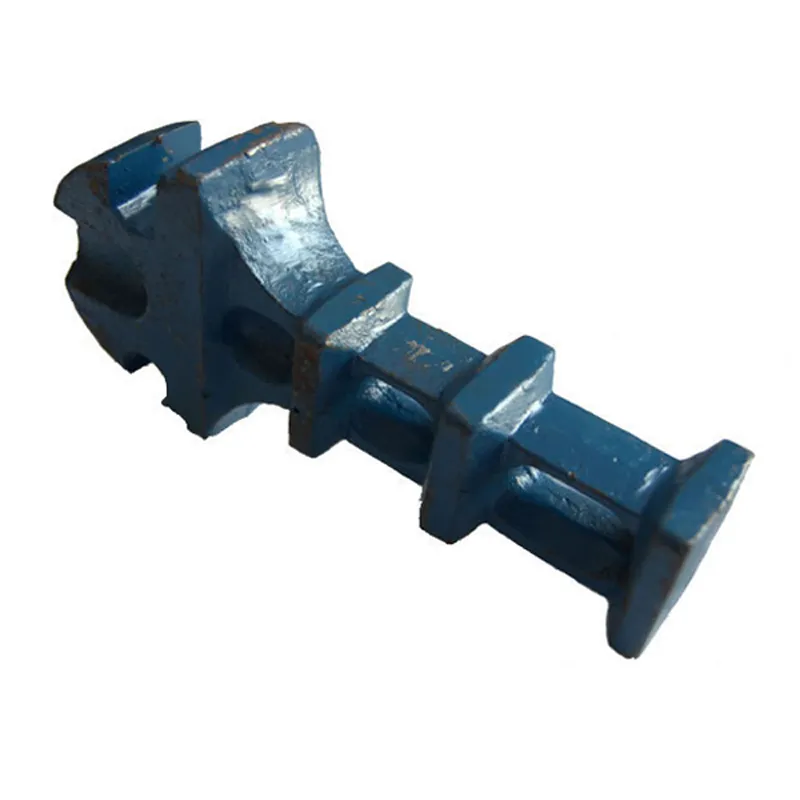

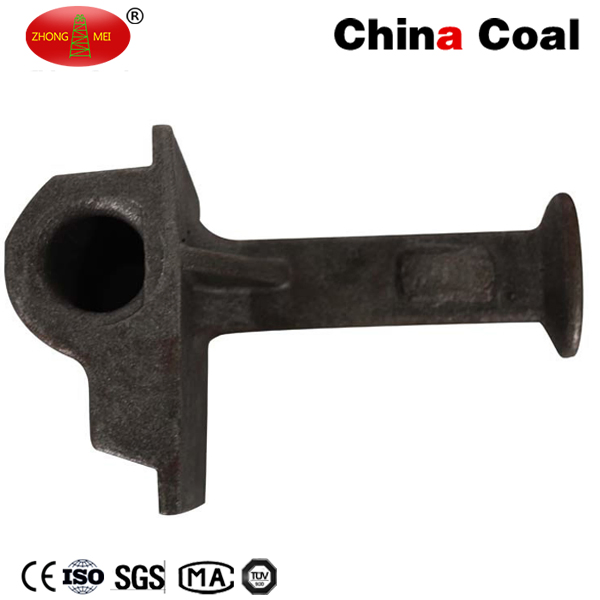

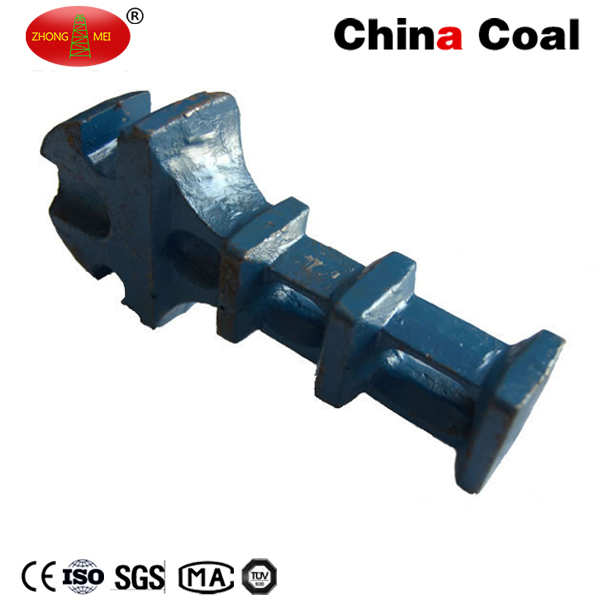

Product Gallery

?

Frequently Asked Questions

1. What is the primary function of a rail shoulder?

Rail shoulders are cast into concrete ties to provide a secure anchoring point for elastic rail clips, ensuring the rail remains fixed in position.

2. What materials are used for these shoulders?

They are manufactured from high-grade Spheroid Graphite Iron (such as QT500-7, QT450-10) and Pearlitic Malleable Iron to ensure durability and strength.

3. What is the difference between Single Stem and Twin Stem shoulders?

Single Stem shoulders are typically used in pre-stressed concrete ties, while Twin Stem shoulders are designed for Bi-Block or Twin Block concrete ties.

4. Can these shoulders be used with different rail types?

Yes, they are compatible with various rail sections including UIC54, UIC60, 115RE, 50kg, 60kg, and BS standard rails.

5. What surface treatments are available?

The standard finish is plain oiled, but they can also be supplied with black treatment or other custom finishes to prevent corrosion.

6. Are custom designs supported?

Yes, shoulders can be produced according to specific customer drawings and technical requirements to match unique rail infrastructure needs.
