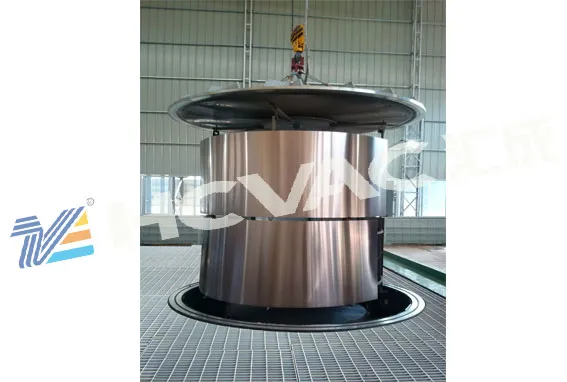

This system is designed to achieve a wide variety of decorative colors on stainless steel products. The machine diameter ranges from 800mm to 3200mm, with heights from 800mm to 7200mm. It is suitable for coating small parts, stainless steel sheets, pipes, counters, connections, and furniture components like chairs. The ion plating technique provides a real metal texture, significantly different from chemical coatings.
Suitable for sheets (4"x8", 4"x10", 5"x10", and up to 1500mm*4000mm or longer) and accessories including stairs, hotel trolleys, tableware, and large items up to Diameter 2000mm * Height 3500mm.
| Model | HCCA-1818 | HCCA-2236 | HCCA-2270 |
|---|---|---|---|
| Dimension | D1800*H1800mm | D2200*H3600mm | D2200*L7000mm |
| Coating Mode | Arc targets+sputtering | Arc targets | Arc targets |
| Vacuum System | Diffusion pump + Roots pump + Mechanical pump (5.0*10⁻⁴Pa) | ||
| Temperature | Ambient to 350°C (PID control, radiation heating) | ||
| Control Mode | Manual/Automatic/PC/PLC + HMI | ||
