Basic Specifications
Model NO.
External Fixation
Certification
CE, ISO13485
Material Type
Titanium Alloy & Stainless Steel
Capacity
500,000 Pieces/Year
Product Description

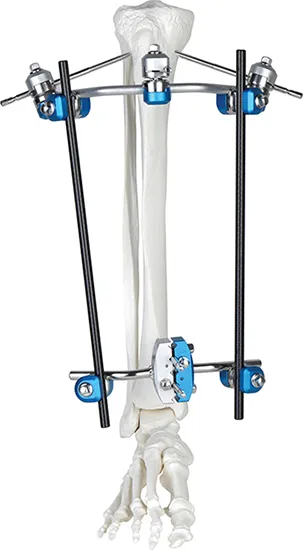

External Fixator -- Modular Fixation External Fixation System
⚙️
Advanced Technology
Cutting-edge design ensures ease of use and surgical efficiency.
🔗
Snap-fit Design
Facilitates smoother operations and significantly reduces surgical time.
- Allows independent placement of bone screws in proximal and distal fractures.
- Uses high-quality medical aluminum carbon fiber for enhanced fracture visibility.
- Provides exceptional stability combined with optimal elasticity.
- Compact and streamlined frame construction for patient comfort.
- Designed for complex fractures and soft tissue loss management.

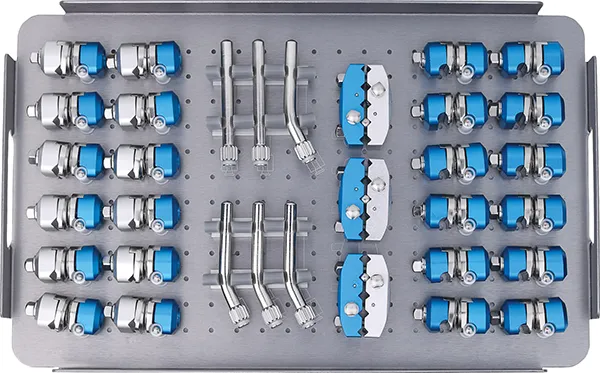

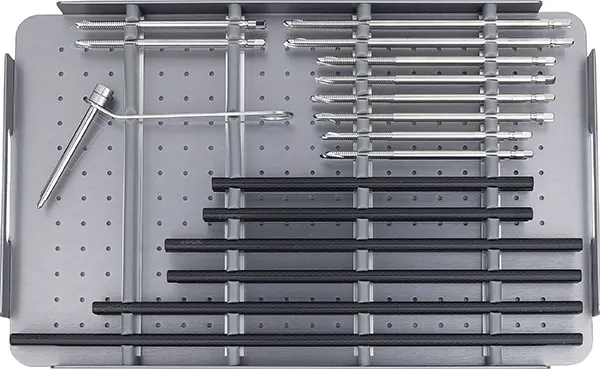

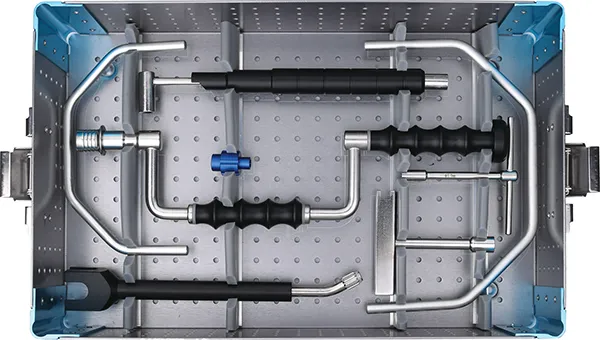

Product Gallery
Instrument & Component List
| Component Name |
Specification |
Quantity |
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 20 Total |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 12 Total |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 2 |

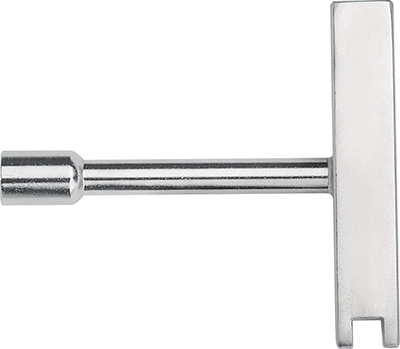

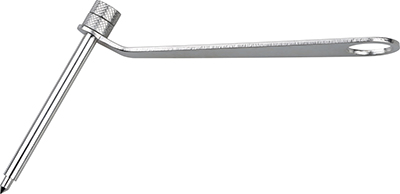

| Wrench Set (T-Wrench / Reduction / Torque) | #7 / #22 | 3 |

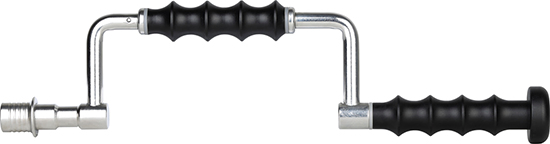

| Hand Drill & Screw Driver | φ5 | 2 |
Component Details

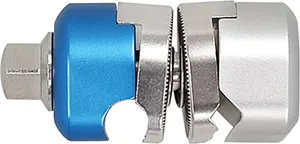

Anti Pin To Rod Coupling
Size: φ8/4-5 | Material: Stainless Steel, Aluminum

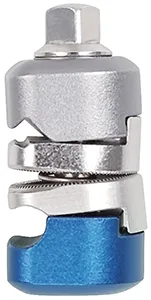

Pin To Rod Coupling
Size: φ8/4-5 | Material: Stainless Steel, Aluminum

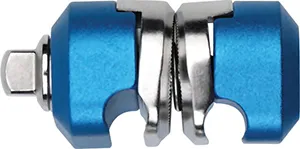

Rod To Rod Coupling
Size: φ8/8 | Material: Stainless Steel, Aluminum

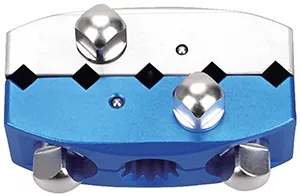

5-Hole Pin Clamp
Size: φ8/5 | Material: Stainless Steel, Aluminum

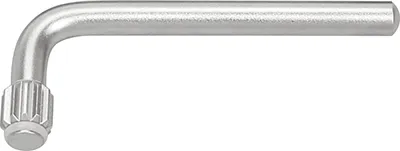

90° Post
Size: φ8 | Material: Stainless Steel, Aluminum

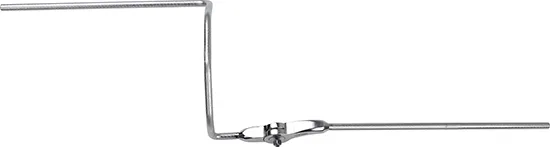

Knee Joint Mobilizer
Size: φ8 | Material: Stainless Steel
Frequently Asked Questions
What materials are used in the External Fixator system?
The system is constructed using high-quality Titanium Alloy, Stainless Steel, and medical-grade Aluminum Carbon Fiber for optimal strength and radiolucency.
Is this orthopedic system reusable?
Yes, the external fixation components are designed to be reusable after proper sterilization, adhering to medical standards.
What certifications does the product have?
Our external fixation systems are fully certified with CE and ISO13485, ensuring compliance with international medical device quality standards.
How does the snap-fit design benefit the surgical process?
The snap-fit design allows for faster assembly and adjustment of the frame, which reduces the overall operation time and simplifies the surgeon's workflow.
Can it be used for complex fractures?
Absolutely. It is specifically designed to address complex fractures and cases involving significant soft tissue loss, providing exceptional stability and elasticity.
What is the production capacity for this instrument set?
The production facility has a capacity of approximately 500,000 pieces per year to ensure a steady global supply.
