External Fixator -- Modular Fixation System
Product Features
◈ Cutting-edge technology for ease of use and efficiency.
◈ Independent placement of bone screws in proximal and distal fractures.
◈ Snap-fit design for smoother operations and reduced surgical time.
◈ Enhanced fracture visibility with high-quality medical aluminum carbon fiber.
◈ Exceptional stability and optimal elasticity.
◈ Compact and streamlined frame construction.
◈ Effective functionality for complex fractures and soft tissue loss.
| Component Name |
Specification |
Qty |
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 20 |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 12 |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 2 |
| T-Wrench | #7 | 1 |
| Stabilization/Reduction Wrench | #22 | 1 |
| Torque Wrench | #7 | 1 |
| Instrument Set | Standard | 1 |
Component Details
Anti Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum
Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum
Rod To Rod Coupling
Size: φ8/8
Material: Stainless Steel, Aluminum
5-Hole Pin Clamp
Size: φ8/5
Material: Stainless Steel, Aluminum

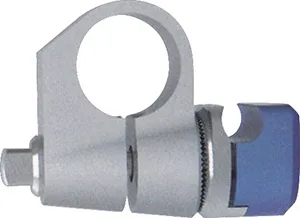

Tube To Rod Coupling
Size: φ20/8
Material: Stainless Steel, Aluminum
90° Post (φ8)
30° Post (φ8)
Straight Post (φ8)

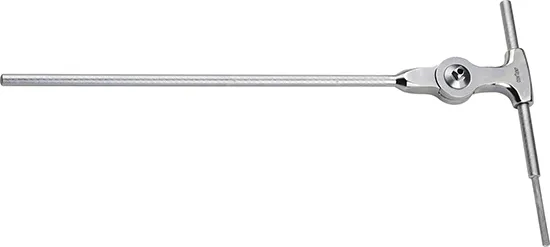

Ankle Joint Mobilizer
Size: φ8 | Material: Stainless Steel
Knee Joint Mobilizer
Size: φ8 | Material: Stainless Steel
Frequently Asked Questions
What materials are used in the External Fixator system?
The system primarily utilizes high-grade Titanium Alloy, Stainless Steel, and Aluminum for structural components, ensuring a balance of strength and weight.
Is the External Fixation system radiolucent?
Yes, the system incorporates carbon fiber rods which provide excellent fracture visibility under X-ray and other medical imaging equipment.
What certifications does this orthopedic system hold?
The product is fully certified with CE and ISO13485, meeting international standards for medical device safety and quality.
Can the modular components be reused?
The system is designed to be reusable after proper sterilization and inspection according to standard medical protocols.
What are the benefits of the snap-fit design?
The snap-fit design allows for faster assembly and adjustment during surgery, reducing the overall operation time and improving surgeon convenience.
Does the kit include self-drilling bone screws?
Yes, the instrument set includes both self-drilling and self-tapping bone screws in various sizes (from 120mm to 180mm) to accommodate different anatomical needs.
