Basic Information
Certification
CE, ISO13485
Properties
Implant Materials
Instrument Classification
Class III
After-Sale Service
Online Technical Support
Package
Sterile/Non-Sterile Package
Production Capacity
50000 Sets/Year
Product Introduction

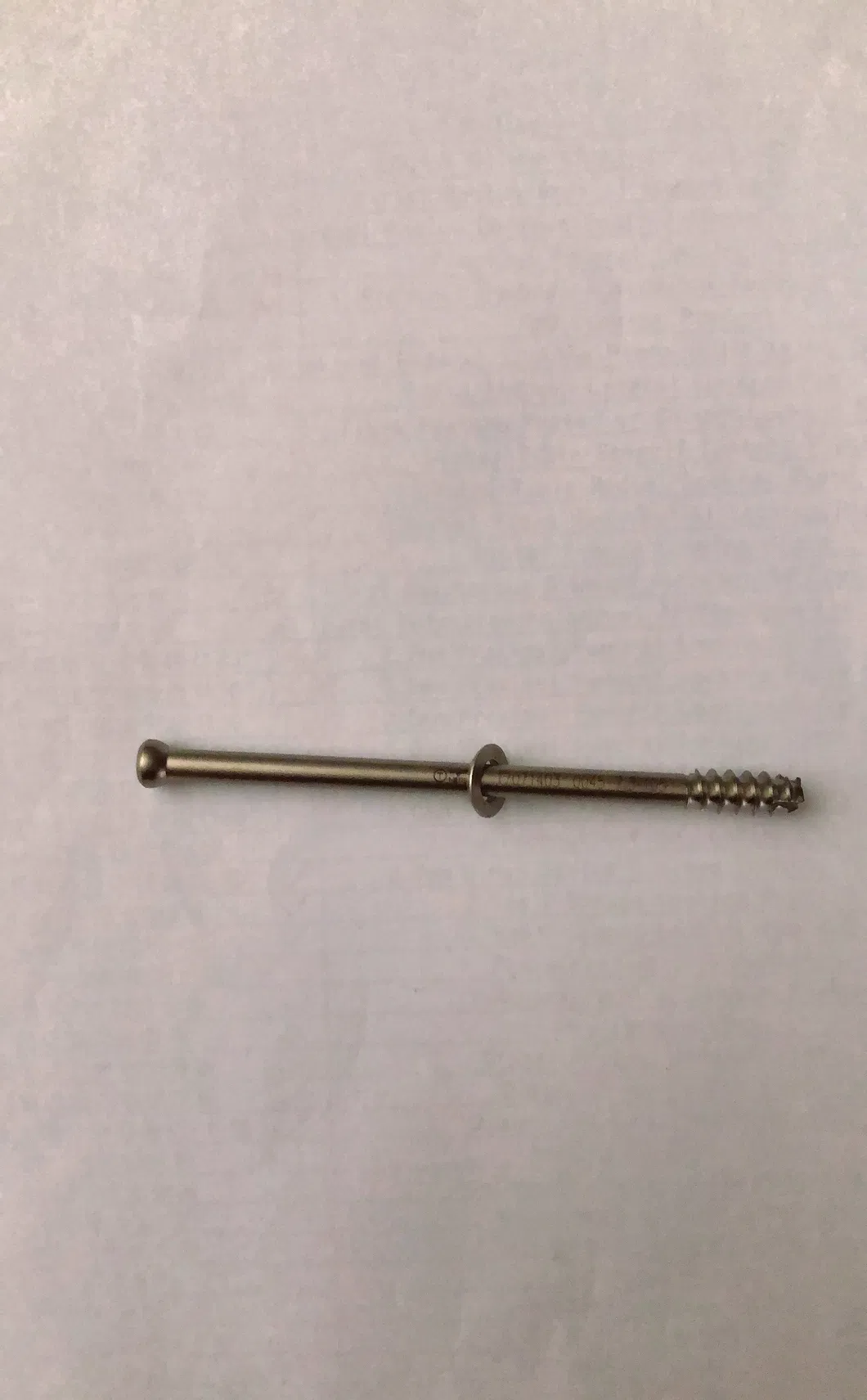

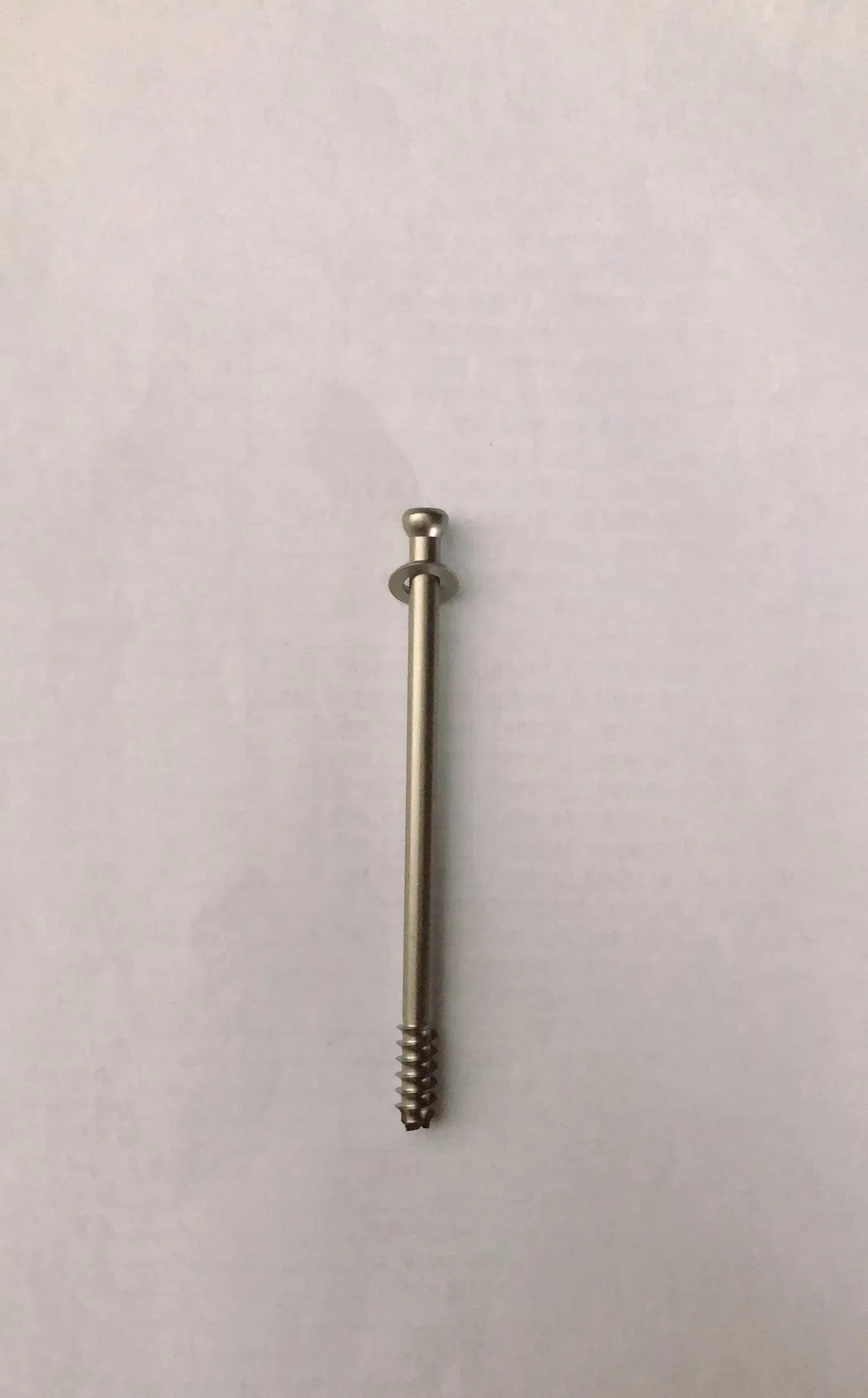

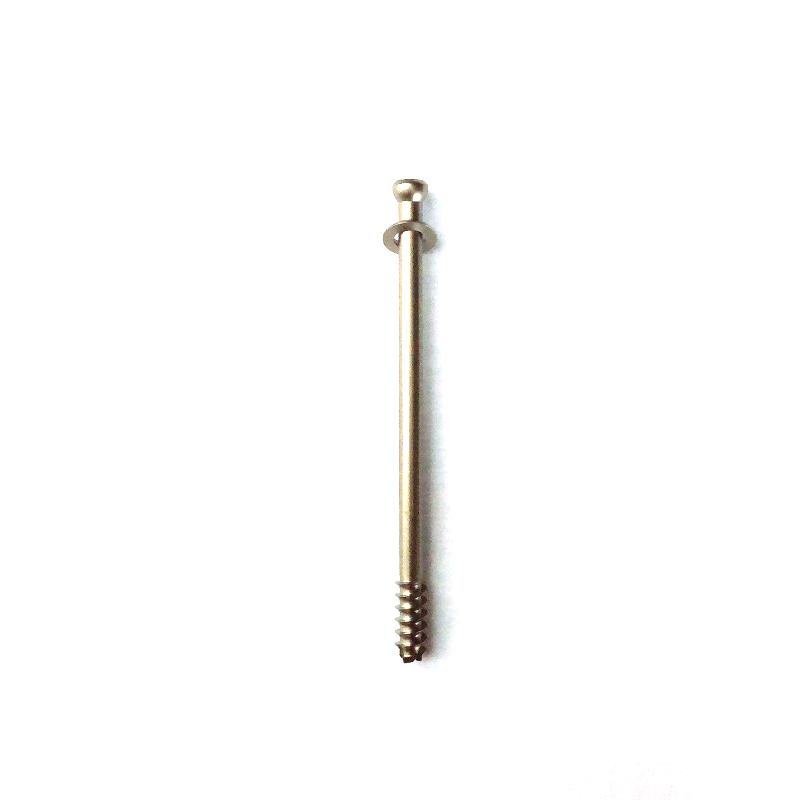

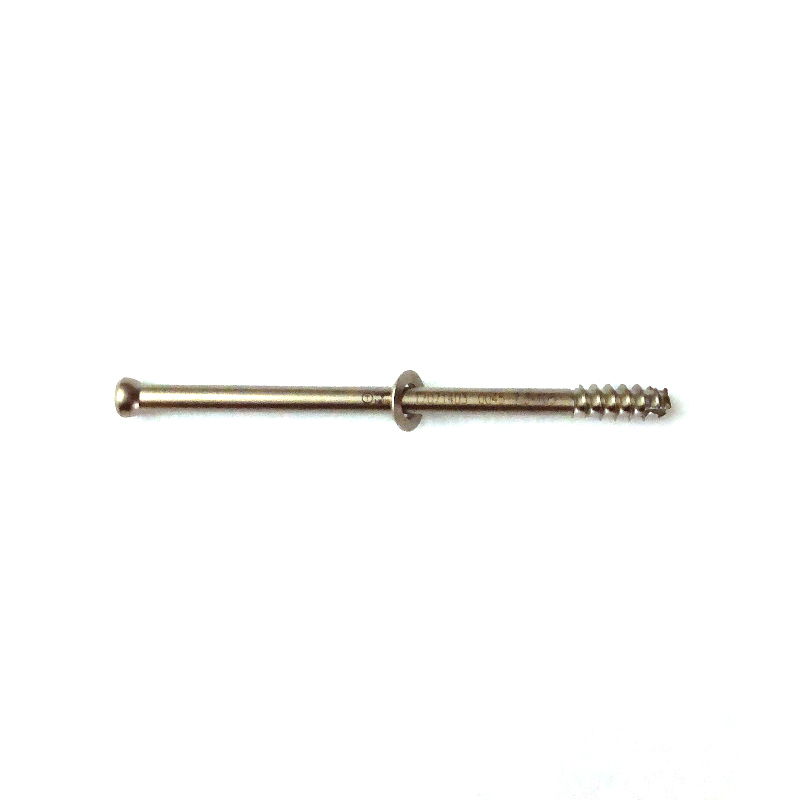

Cannulated screws are a common method of fixation used by orthopedic surgeons for multiple fracture patterns. These screws may be cannulated or "hollow" to allow them to be placed over a guidewire facilitating better alignment prior to drilling or screw insertion. The guidewire is then removed and the screw is left in place.
| Product No. |
Diameter (mm) |
Length (mm) |
| 05.5369-03 | 7.3 | 60 |
| 05.5369-04 | 7.3 | 65 |
| 05.5369-05 | 7.3 | 70 |
| 05.5369-06 | 7.3 | 75 |
| 05.5369-07 | 7.3 | 80 |
| 05.5369-08 | 7.3 | 85 |
| 05.5369-09 | 7.3 | 90 |
| 05.5369-10 | 7.3 | 95 |
| 05.5369-11 | 7.3 | 100 |
| 05.5369-12 | 7.3 | 105 |
| 05.5369-13 | 7.3 | 110 |
| 05.5369-14 | 7.3 | 115 |
| 05.5369-15 | 7.3 | 120 |
Product Advantages
- Titanium alloy material has better biocompatibility, and CT and MRI are compatible.

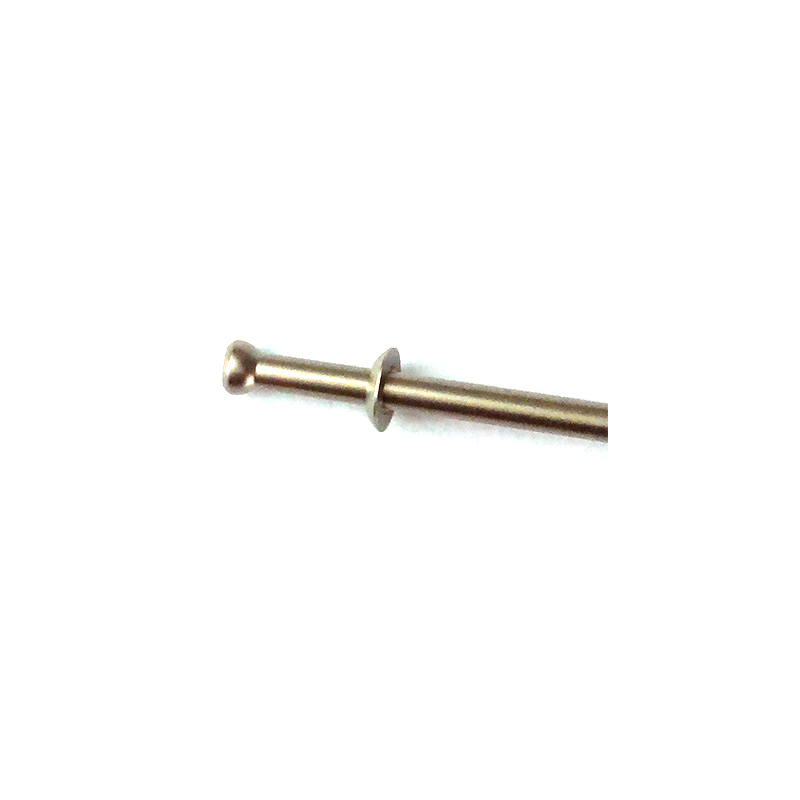

- The notch of the nail head is lower to reduce the interference to the surrounding tissue.
- Provide 1/3 thread, half thread and full thread design options.

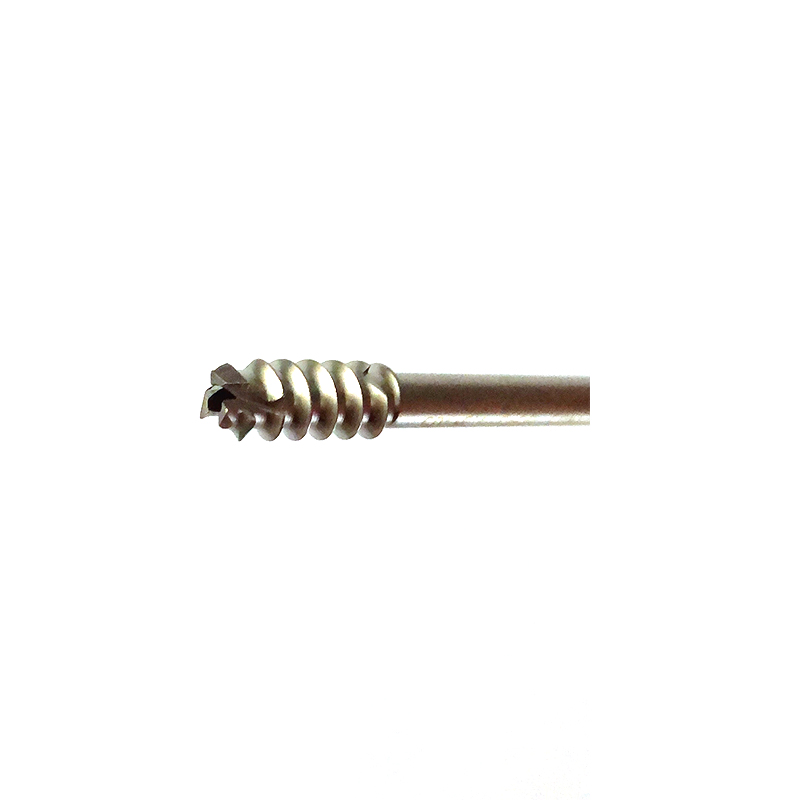

- Head self-tapping and self-drilling design for easier operation and shorter surgery time.
- Superior performance of triangular blades facilitates easy implantation and removal.
- Maintains compression function under periodic forces after insertion.

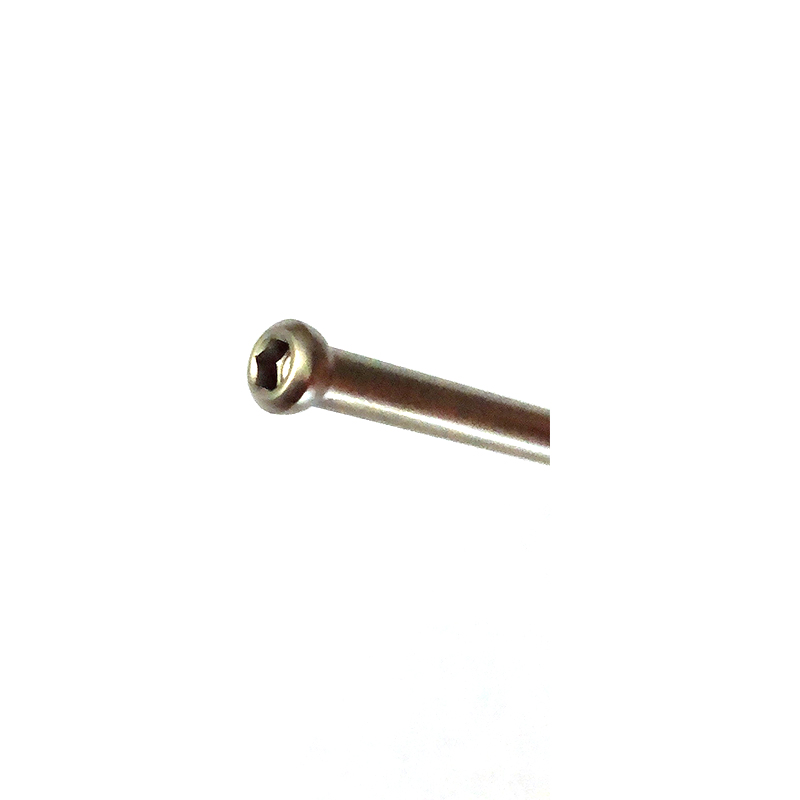

- Torx head design provides better control and prevents skidding.
Frequently Asked Questions (FAQ)
What is the advantage of using Titanium for these screws?
Titanium alloy offers superior biocompatibility compared to other materials. It is also compatible with CT and MRI imaging, which is crucial for post-operative monitoring.
What screw head types and sizes are available?
We provide both headless and with-head types. Common sizes available include diameters of 3.0mm, 4.0mm, 6.5mm, and 7.3mm.
How does the self-tapping design benefit the surgery?
The self-tapping and self-drilling head design simplifies the insertion process, allowing for easier operation and effectively shortening the overall surgical procedure time.
Are there different thread designs for specific needs?
Yes, we provide 1/3 thread, half thread, and full thread designs to accommodate different fracture patterns and surgeon preferences.
Can these screws be used for compression?
Absolutely. After insertion, the screws are designed to maintain their compression function even under periodic physiological forces.
What is included in the package?
Screws are available in both sterile and non-sterile packaging options, depending on your facility's requirements and the specific product model.
