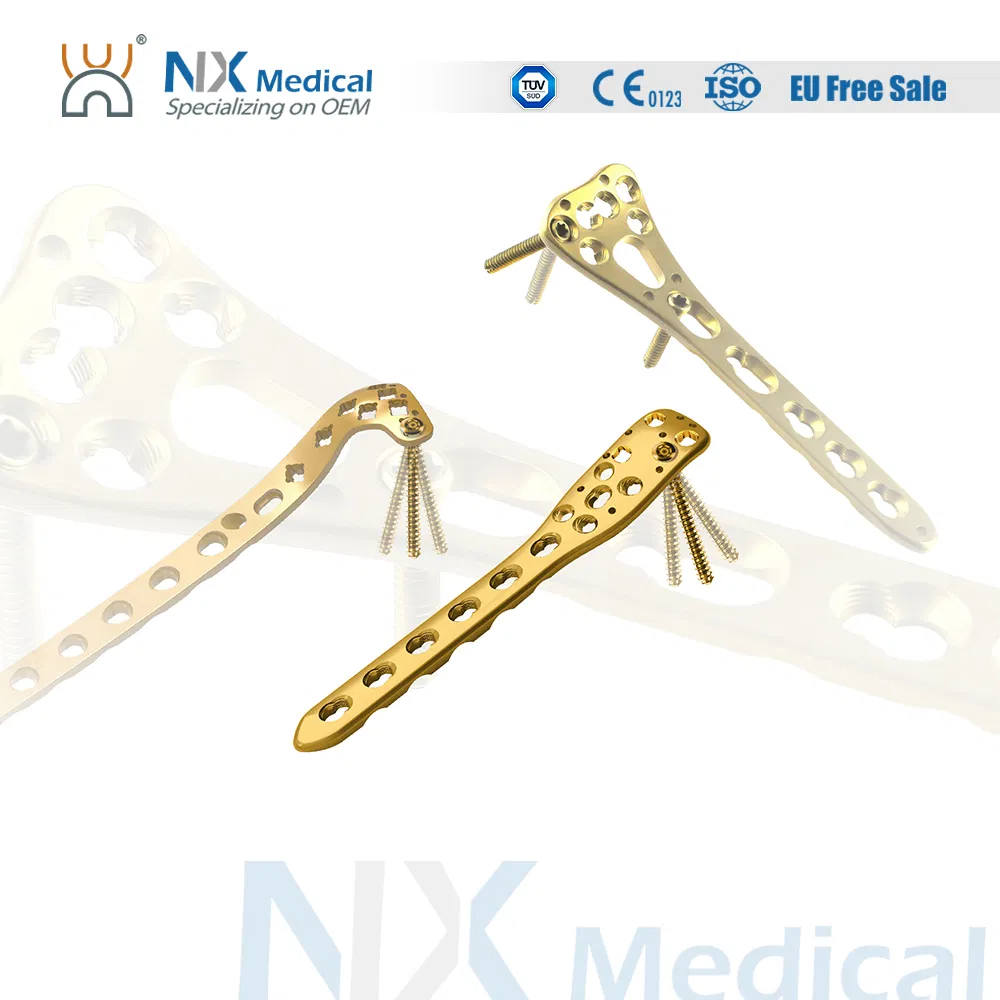

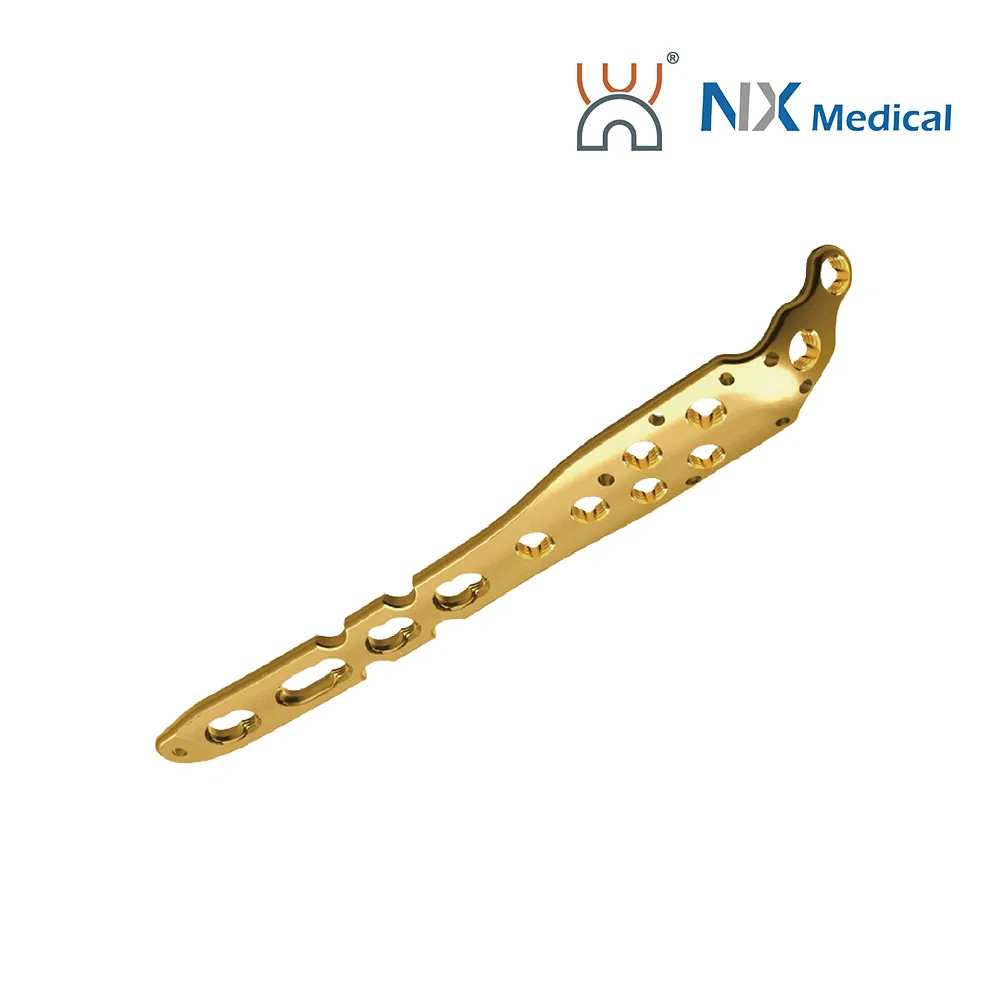

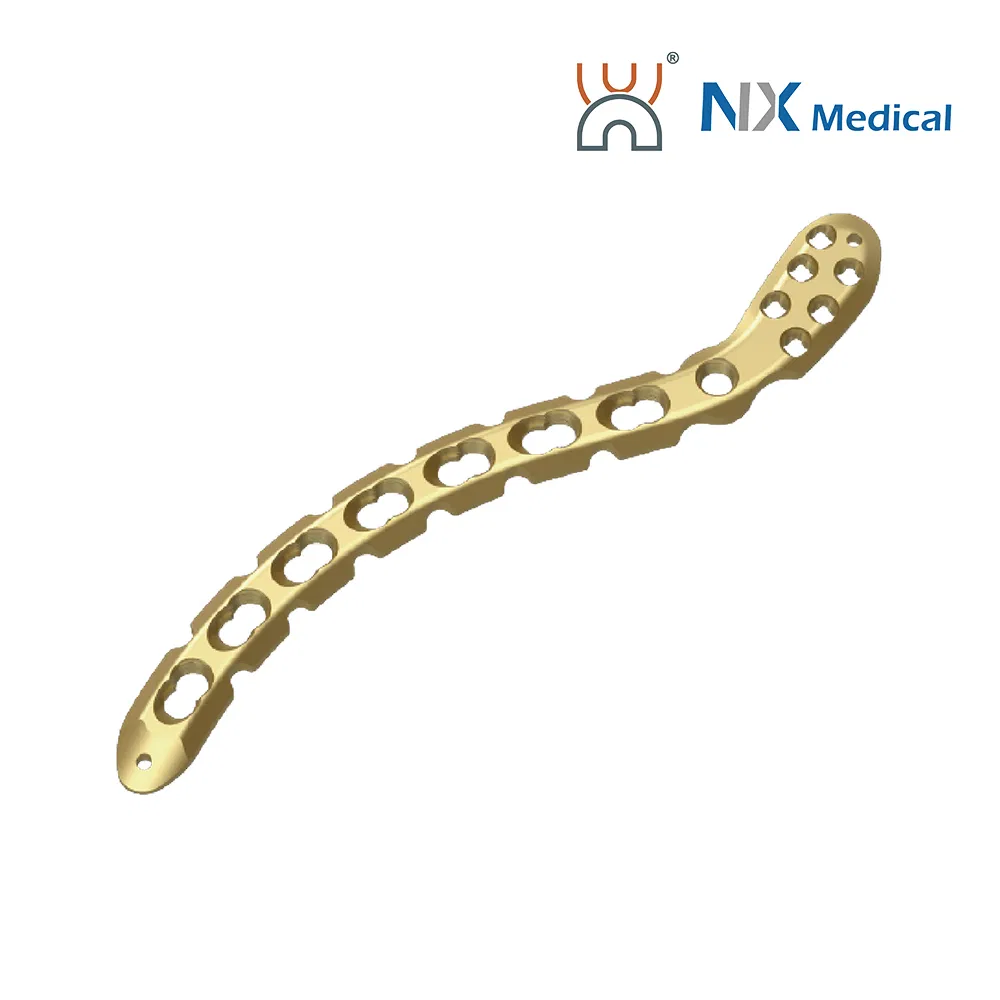

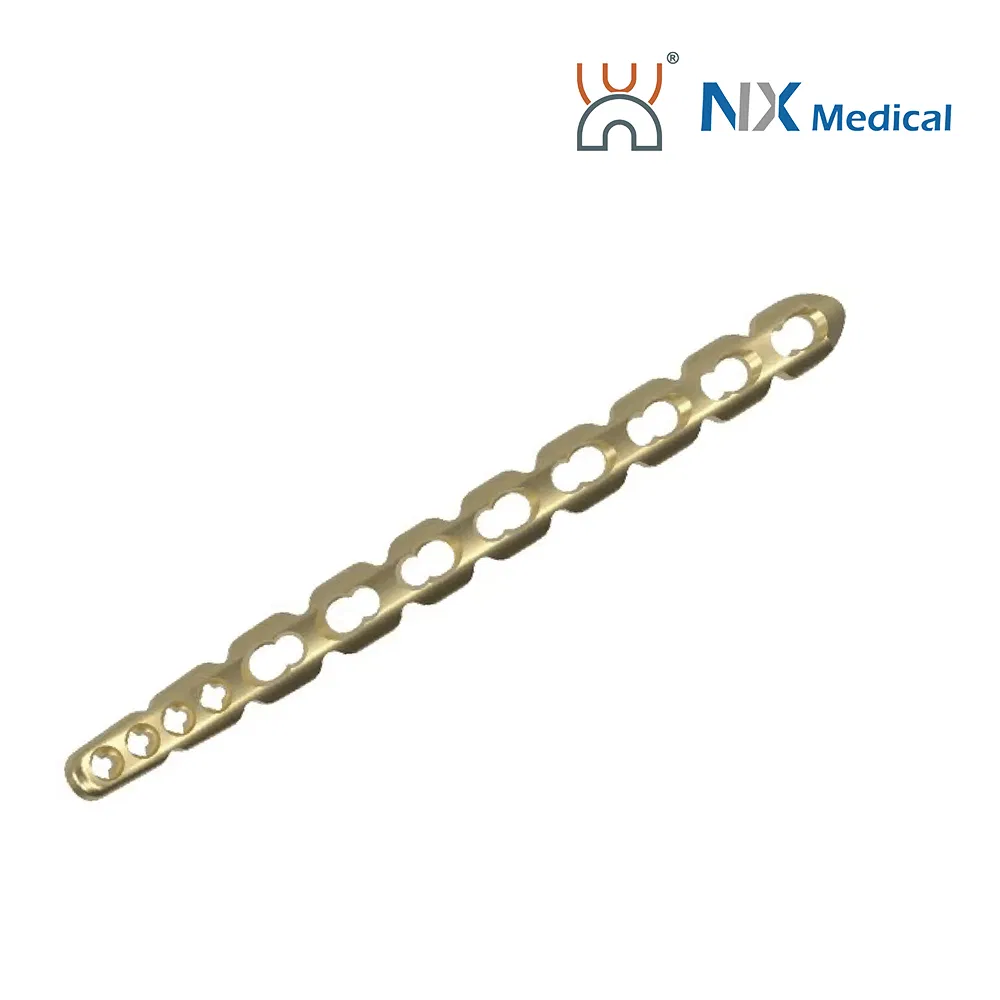

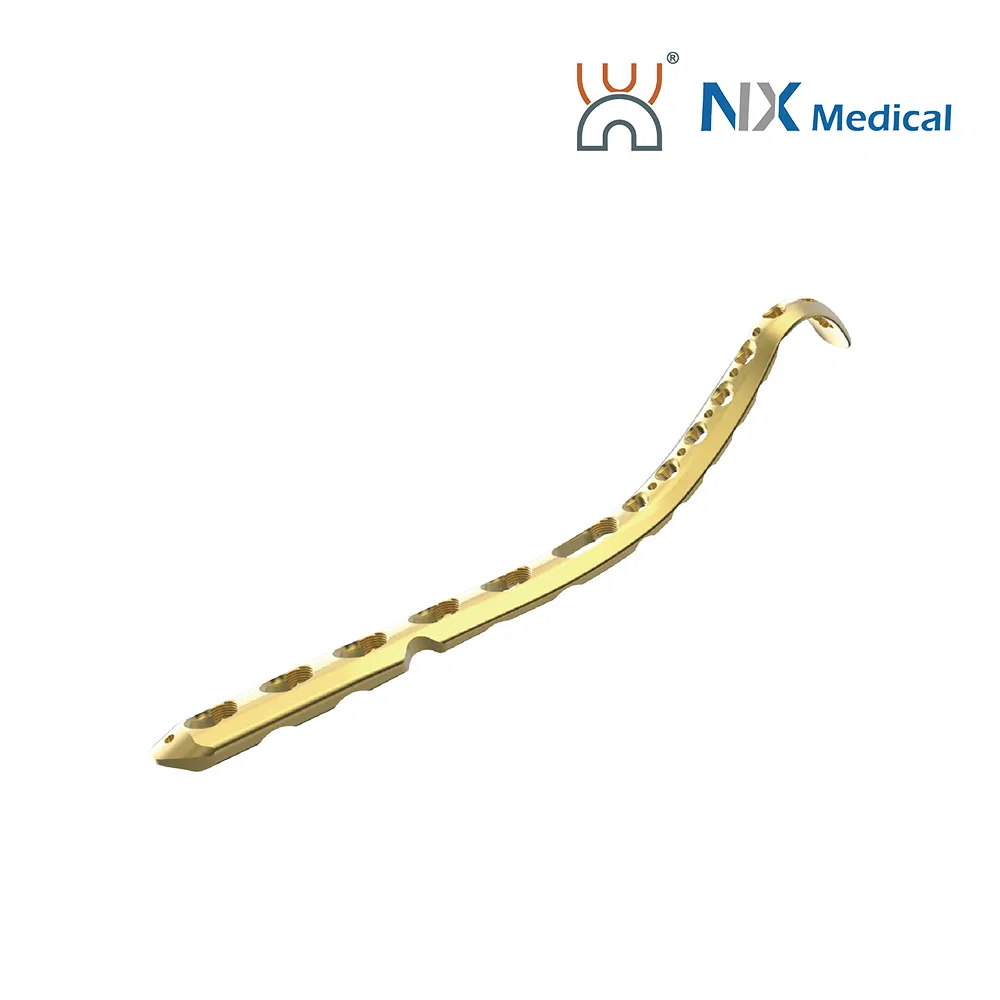

Titanium Medical Orthopedic Trauma Radius Bone Fracture Reconstruction LCP Locking Compression Plate

Still deciding? Get samples of $ !
Request Sample

Product Description

Orthopedic Trauma Plate Overview
Basic Information
Model NO.
ZSW13-01
Quality Guarantee
Two Years
Group
Adult
Certification
ISO, CE
Condition
New
Usage
Fracture Fixation
Using Site
Humerus & Clavicle
Shape
Bullet Shaped Head
Properties
Implant Materials
Origin
China
Product Description
Titanium Plate Detail

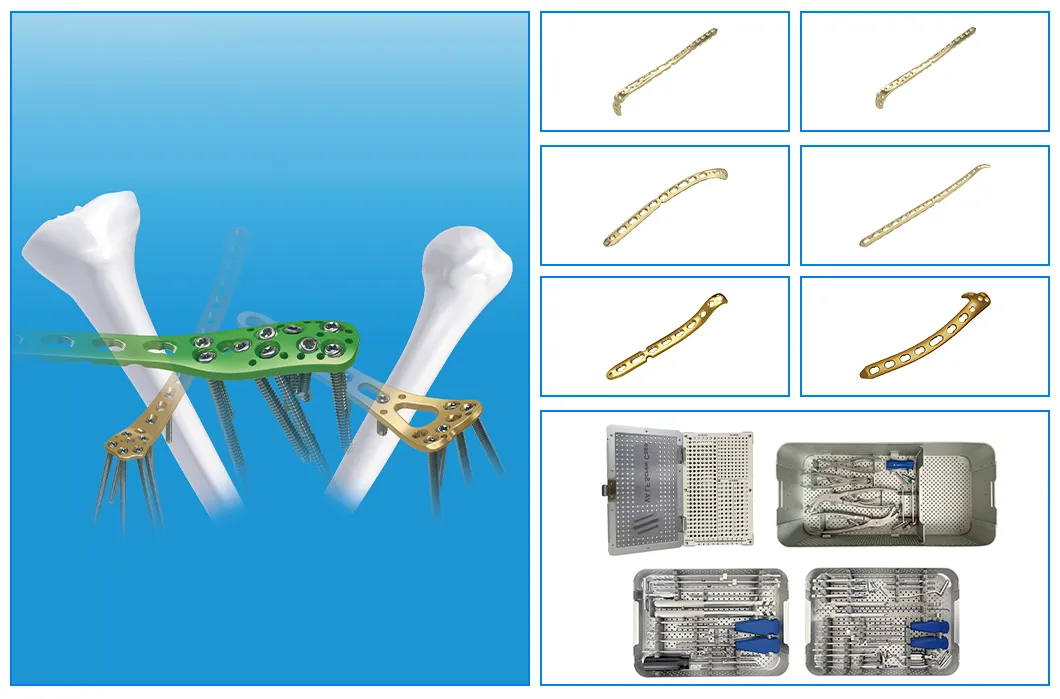

Compression Plate Features
01
Color Coding: Easily differentiate Small or Large Fragment Plates for efficient surgical workflows.
02
VAS Locking Hole: Provides variable angulation within at least a 25° cone for precise fracture fixation.
03
Screw Versatility: Various variable angle cortical and cancellous locking screws available for diverse clinical needs.
04
Fixed-Angle Construct: Four points of thread locking between plate and variable angle screw create a secure, stable construct.
05
Distal Support: Three distal divergent locking screws provide effective support and fixation in complex fractures.
Technical Specifications
Product Name Holes Direction Material Length (mm)
VAS Anterolateral Clavicle LCP (2.7/3.5mm) 6+4H Left/Right Pure Titanium 72
6+6H Left/Right Pure Titanium 96
6+8H Left/Right Pure Titanium 120
6+10H Left/Right Pure Titanium 144
VAS Anterior Clavicle LCP 4+3H to 4+8H Universal Pure Titanium 64 - 124
VAS 3.5mm Proximal Humeral LCP 9+2H to 9+12H Universal Pure Titanium 79 - 219
VAS 3.5mm Olecranon LCP 8+2H to 8+12H Left/Right Pure Titanium 92 - 227

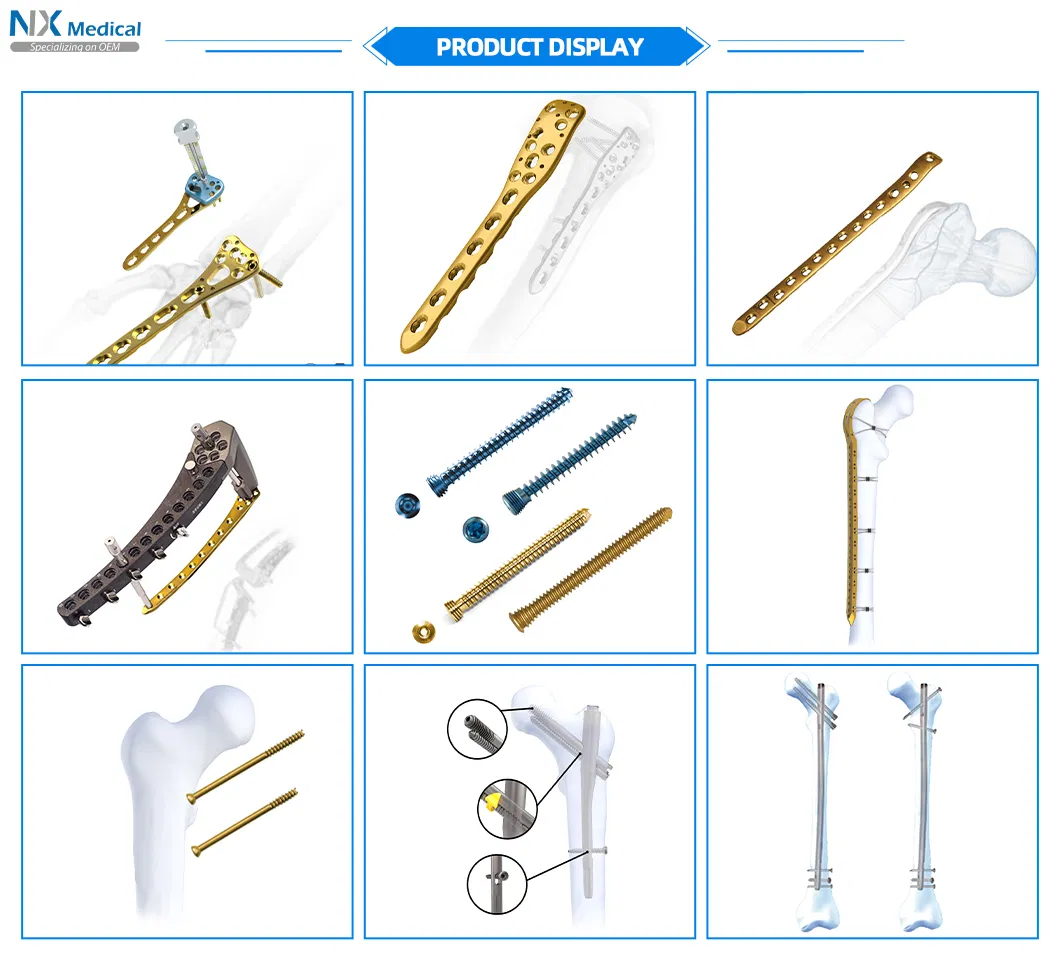

Product Variety
Manufacturing & Quality Control

Our facility is a leading orthopedic product manufacturer located in East China, providing a comprehensive range of cost-effective surgical and reliable therapeutic solutions. We offer superior orthopedic trauma implants, spinal implants, and high-precision surgical instruments globally.

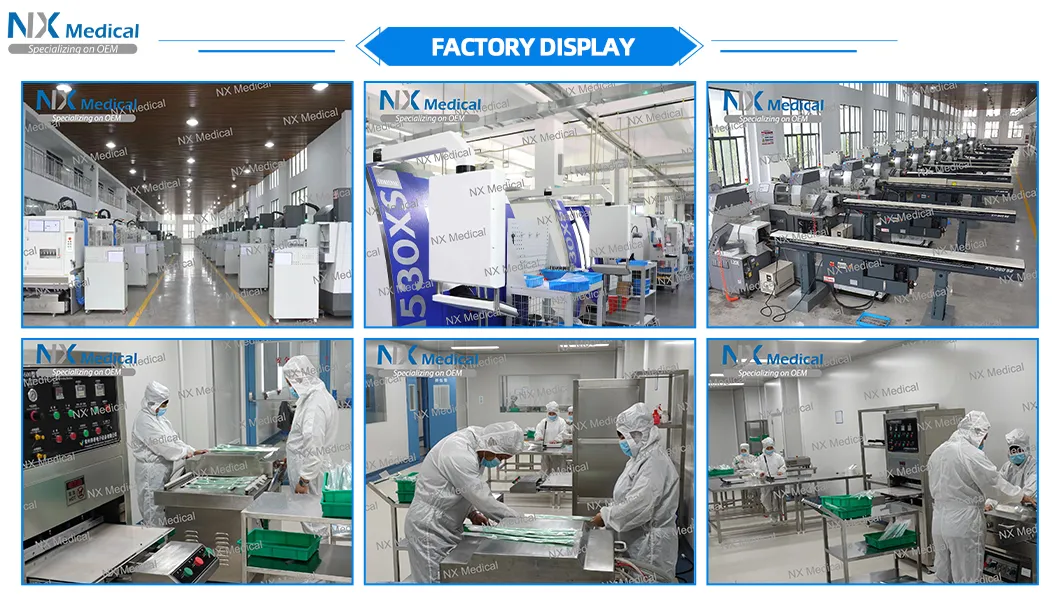

Manufacturing Facility
CNC Machining
Quality Inspection

We believe superior quality is the key for patients. Internally, we have established a strict quality system to fulfill frequent self-audits. Externally, we comply with ISO13485, and all orthopedic products are certified by TUV CE0123 and NMPA.

Laboratory Testing
Production Line
Certifications
ISO and CE Certifications
Frequently Asked Questions
Can I request a sample order?
Yes, we welcome sample orders to test and check the quality of our implants. Mixed samples are also acceptable.
Do you offer customized orthopedic solutions?
Yes, we have a complete design and drawing department equipped with high-precision CNC machines to provide professional customization services.
What is the standard lead time for samples?
For existing items, samples are ready within 3 days. For OEM or customized products, it typically takes approximately 2 weeks.
How do you ensure product quality?
We conduct strict sampling inspections before shipment. All products must pass our internal quality control standards and are certified by ISO and CE.
Can you brand the products with our logo?
Yes, we can print your logo on both the products and the packaging, provided our minimum order quantity (MOQ) requirements are met.
What materials are used for the locking plates?
Our locking compression plates are primarily made from high-grade Pure Titanium (PT) or Titanium Alloy to ensure biocompatibility and strength.
